TNGX 100404SR-F:M6330
TNGX 100404SR-F:M6330

TNGX 100404SR-F:M6330

UGC DOR7342921
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.67 CAD - $16.67 CAD
$16.67 CAD
$16.67 CAD - $16.67 CAD
$16.67 CAD

Vendu en lots de : 10

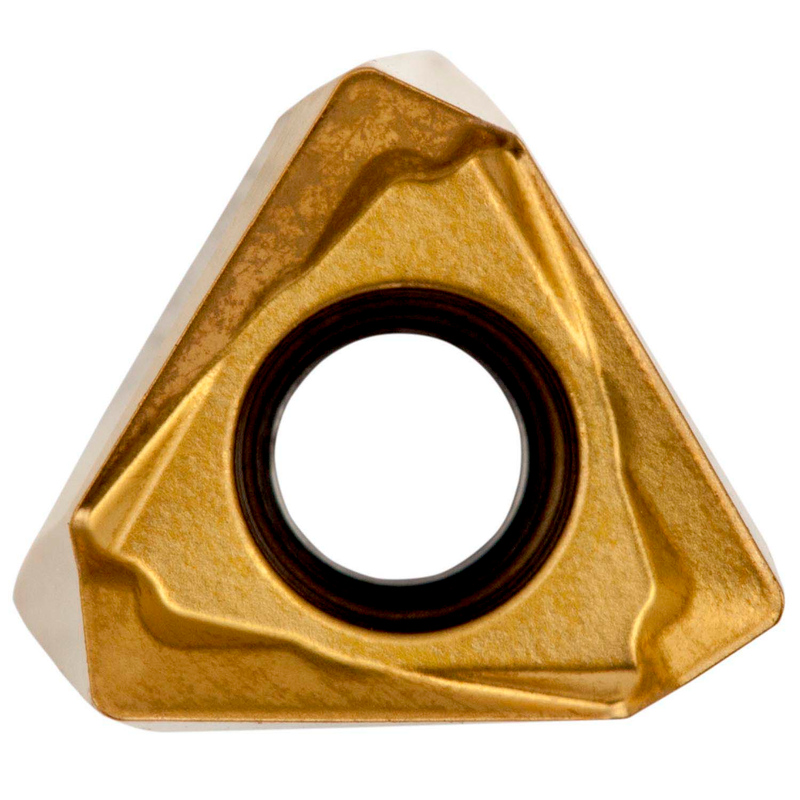

Plaquette de fraisage double face TNGX 1004, triangulaire pour une profondeur de coupe maximale de 5 mm, avec un rayon de bec de 0,4 mm, une précision de positionnement selon la classe de tolérance ISO G et une géométrie F avec arêtes de coupe et facette arrondies, en carbure WC-Co revêtu PVD M6330 de classe ISO M20-M35 pour l'usinage de l'acier inoxydable avec des fraises à épaulement STN10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNGX 100404SR-F:M6330
GradeM6330
Chipbreaker (CBMD)F
Product Number7342921
Product FamilyTNGX 10

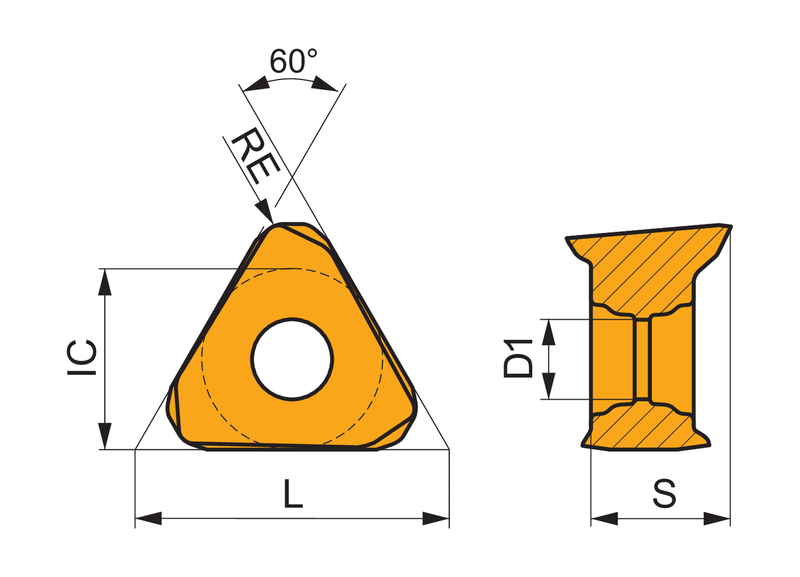

Insert Geometry
Insert DesignTNGX
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.236"
Inscribed Circle Dia. — mm (IC)6.0 mm
Insert Thickness — in (S)0.185"
Insert Thickness — mm (S)4.69 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7342921
EAN3603603288409
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
File Type Download
TNGX 100404SR-F:M6330 — Line Drawing PDF Download
