TNGX 100402SR-F:M8330
TNGX 100402SR-F:M8330

TNGX 100402SR-F:M8330

UGC DOR7451058
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.67 CAD - $16.67 CAD
$16.67 CAD
$16.67 CAD - $16.67 CAD
$16.67 CAD

Vendu en lots de : 10

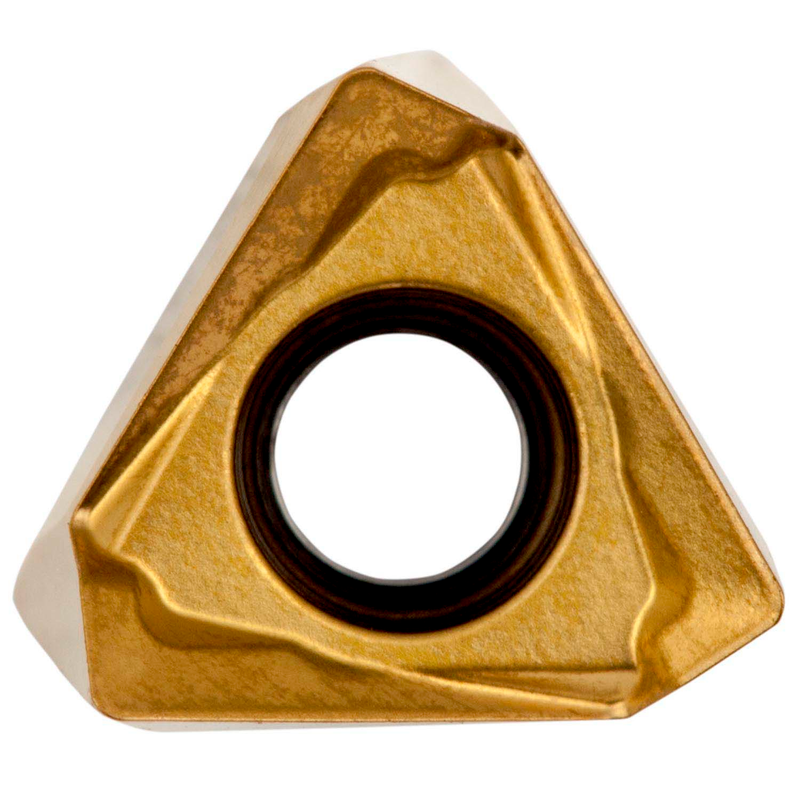

Plaquette de fraisage double face TNGX 1004, triangulaire pour une profondeur de coupe maximale de 5 mm (0,1969"), avec rayon de coin de 0,2 mm (0,0079"), une précision de positionnement selon la classe de tolérance ISO-G et une géométrie F avec des arêtes de coupe arrondies et un chanfrein, carbure WC-Co à grain fin revêtu PVD M8330 dans la plage de grades ISO P20-P40 pour l'usinage de l'acier avec des fraises à épaulement STN10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TNGX 100402SR-F:M8330
GradeM8330
Chipbreaker (CBMD)F
Product Number7451058
Product FamilyTNGX 10

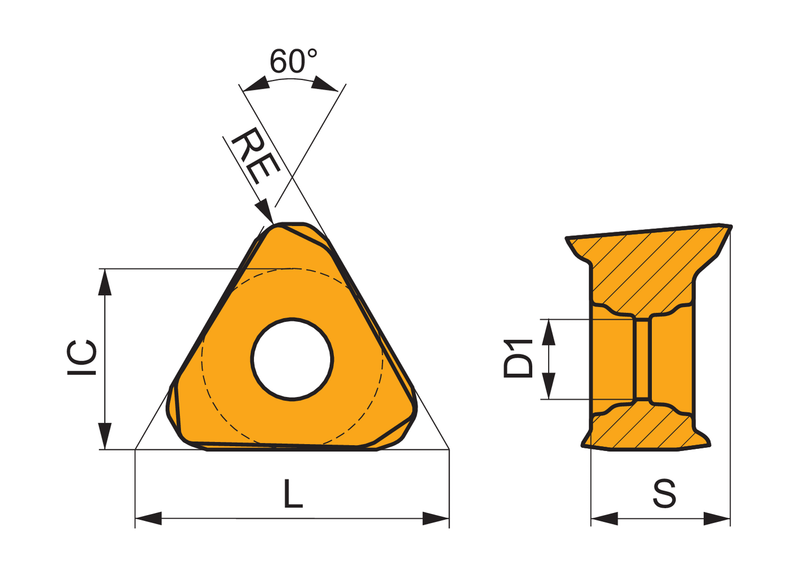

Insert Geometry
Insert DesignTNGX
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.236"
Inscribed Circle Dia. — mm (IC)6.0 mm
Insert Thickness — in (S)0.185"
Insert Thickness — mm (S)4.69 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7451058
EAN3603603389663
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
File Type Download
TNGX 100402SR-F:M8330 — Line Drawing PDF Download
