50A05R-S90TN10-C
50A05R-S90TN10-C
50A05R-S90TN10-C

50A05R-S90TN10-C

UGC DOR7178523
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$548.00 CAD - $548.00 CAD
$548.00 CAD
$548.00 CAD - $548.00 CAD
$548.00 CAD

Vendu en lots de : 1

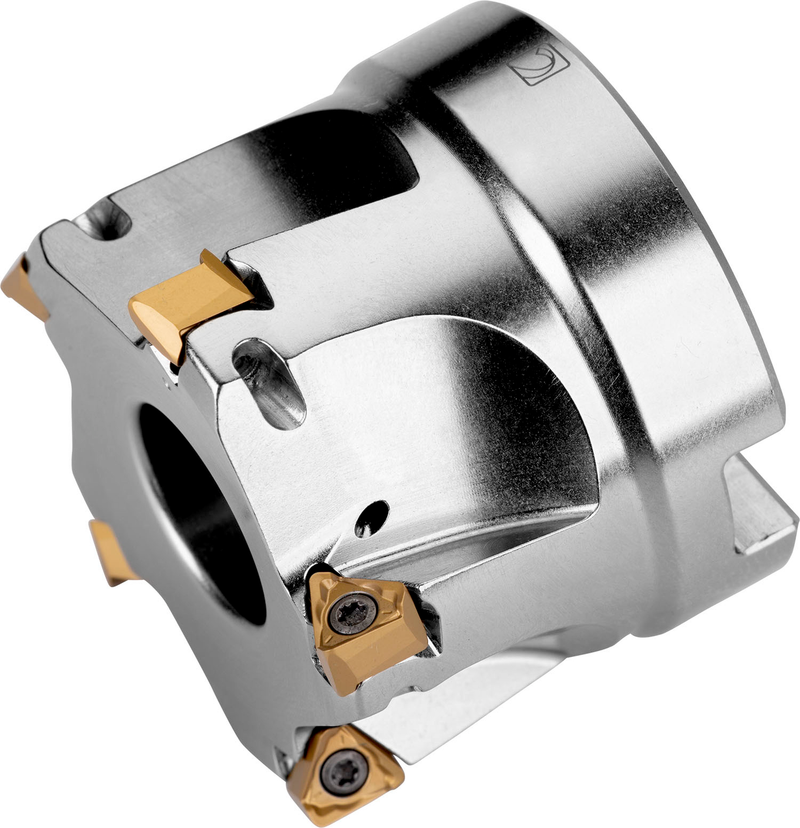

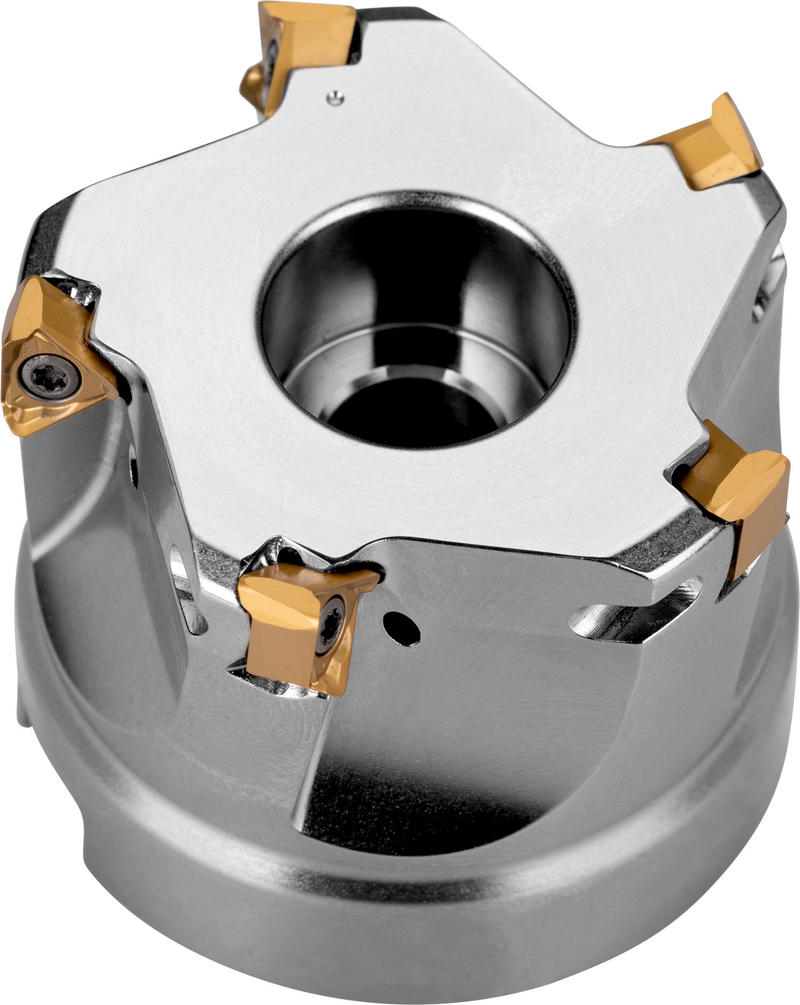

Fraise à surfacer d'épaulement à géométrie double négative qui utilise 5 plaquettes double face TNGX 1004..., diamètre de coupe 50 mm avec un angle d'attaque de 90° et un alésage de connexion de 22 mm selon DIN 8030-A, longueur en porte-à-faux de 40 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage d'épaulements peu profonds et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A05R-S90TN10-C
Product Number7178523
Product FamilySTN10
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

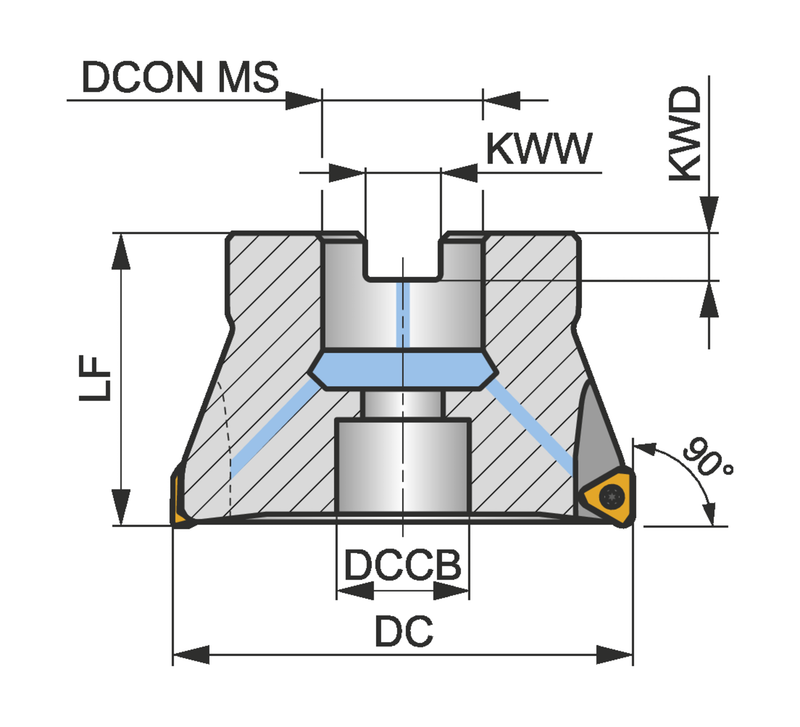

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSTN10
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7178523
EAN3603603173316
File Type Download
50A05R-S90TN10-C — 3D Model STP Download
50A05R-S90TN10-C — 2D Model DXF Download
50A05R-S90TN10-C — Line Drawing PDF Download
