80A10R-S90TN10-C
80A10R-S90TN10-C
80A10R-S90TN10-C

80A10R-S90TN10-C

UGC DOR7178526
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$801.00 CAD - $801.00 CAD
$801.00 CAD
$801.00 CAD - $801.00 CAD
$801.00 CAD

Vendu en lots de : 1

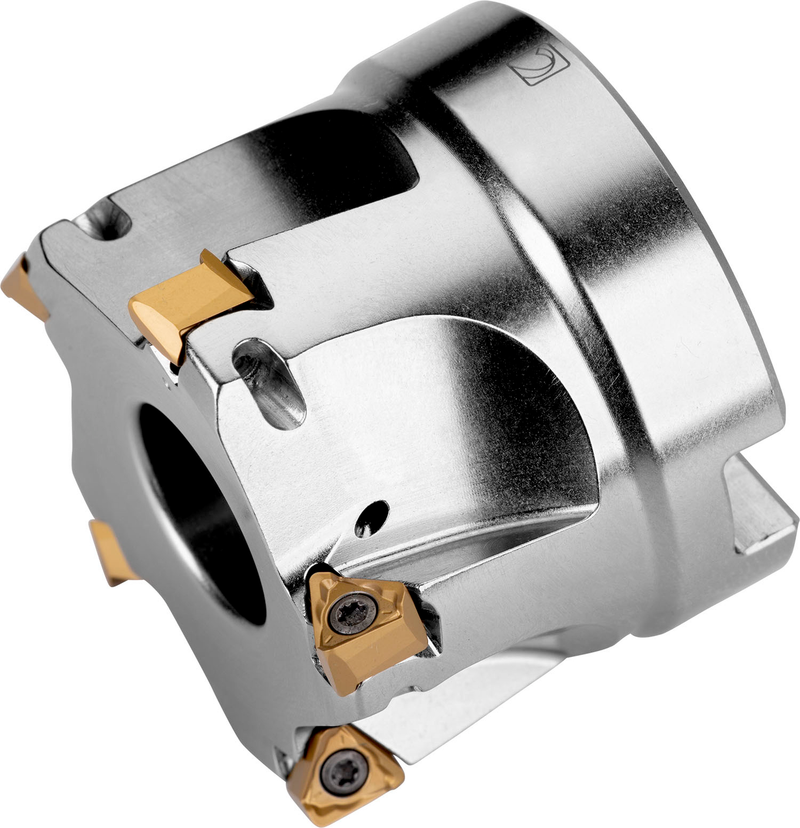

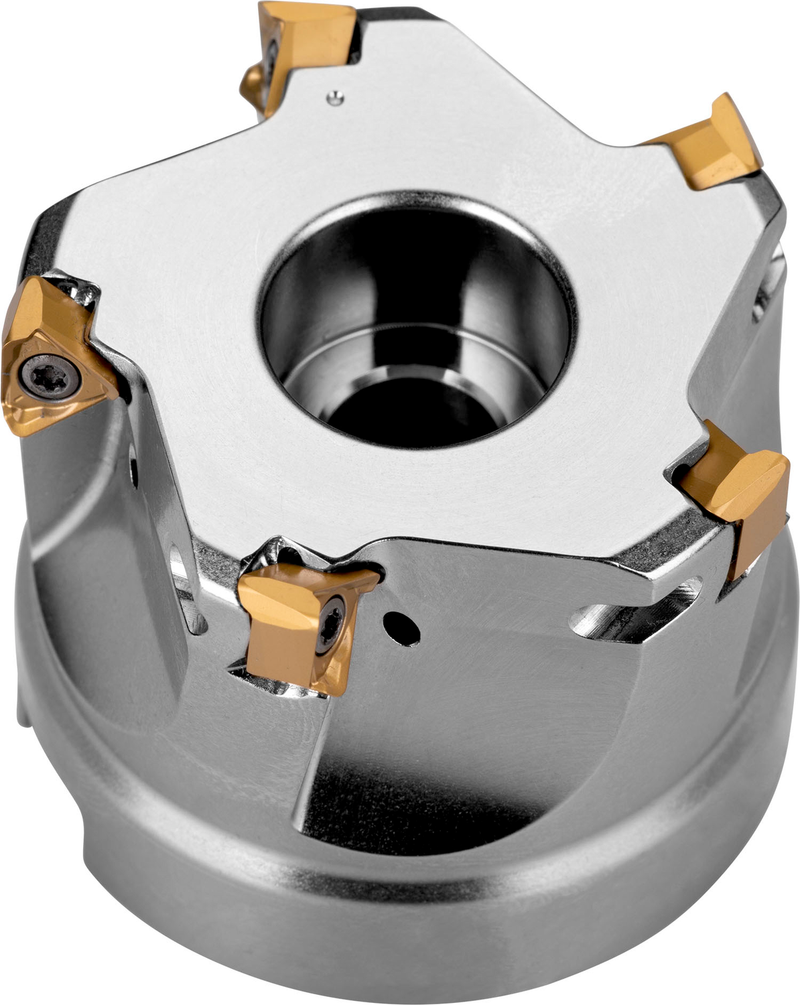

Fraise à surfacer-équarrir avec une géométrie double négative qui utilise 10 plaquettes double face TNGX 1004..., diamètre de coupe de 80 mm avec un angle d'attaque de 90° et un alésage de raccordement de 27 mm selon DIN 8030-A, longueur de dépassement de 50 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage d'épaulements peu profonds et le fraisage de gorges peu profondes avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A10R-S90TN10-C
Product Number7178526
Product FamilySTN10
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

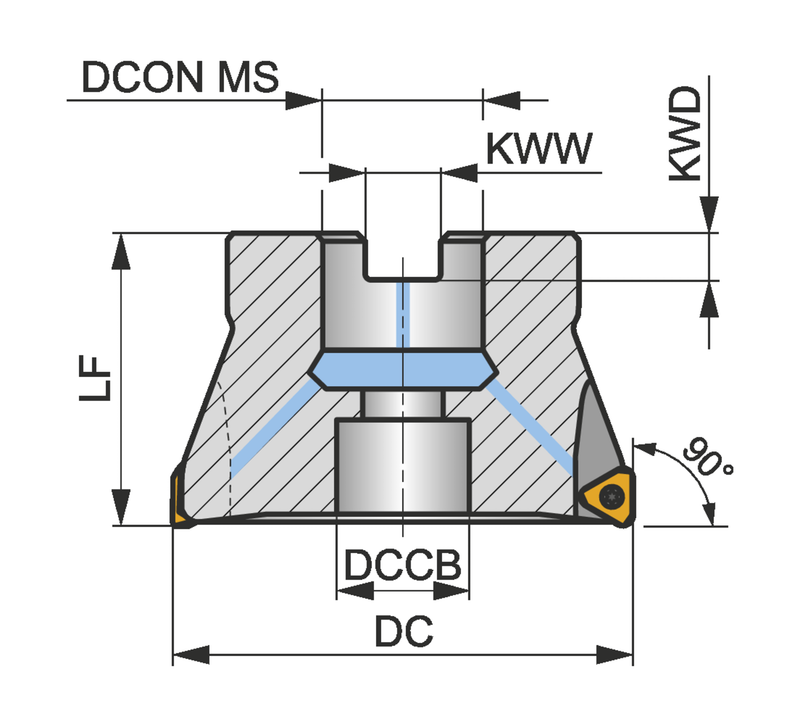

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)10
Tool Information
Tool DesignSTN10
ShankFraise-scie DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7178526
EAN3603603173347
File Type Download
80A10R-S90TN10-C — 3D Model STP Download
80A10R-S90TN10-C — 2D Model DXF Download
80A10R-S90TN10-C — Line Drawing PDF Download
