100A2R130M12-ISTN16-C
100A2R130M12-ISTN16-C
100A2R130M12-ISTN16-C

100A2R130M12-ISTN16-C

UGC DOR8052338
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$508.00 CAD - $508.00 CAD
$508.00 CAD
$508.00 CAD - $508.00 CAD
$508.00 CAD

Vendu en lots de : 1

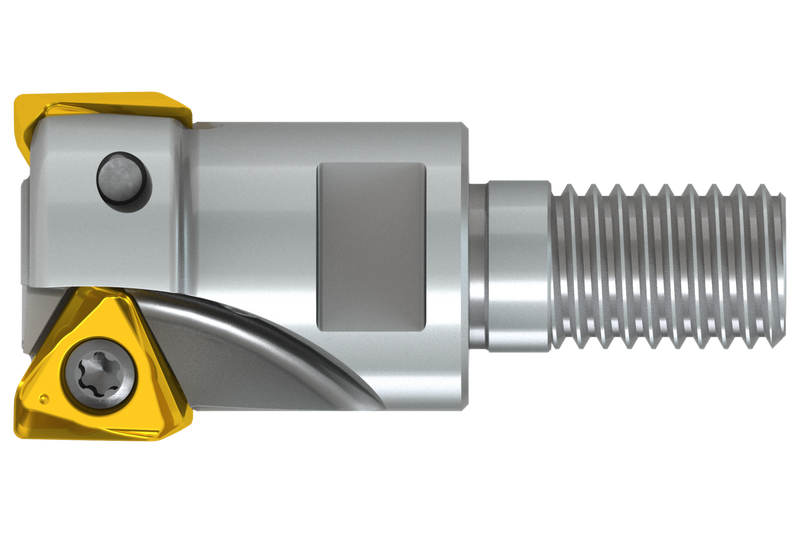

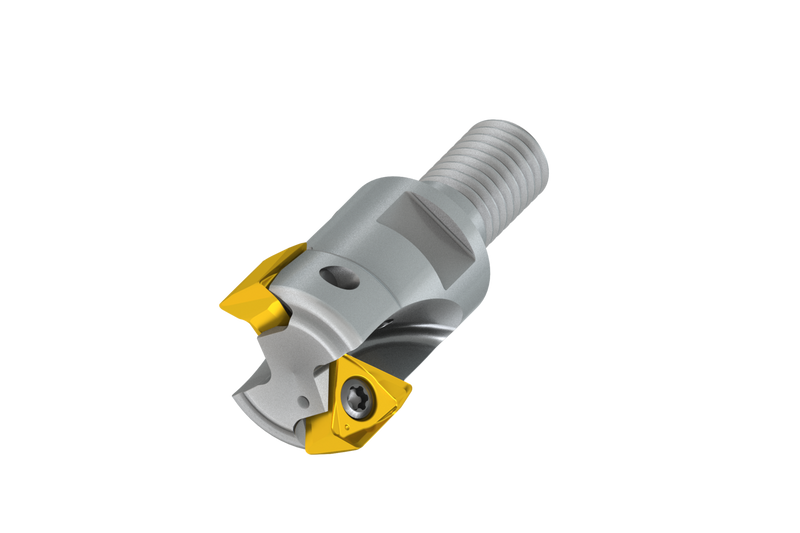

Fraise à surfacer-équarrir avec une géométrie double négative qui utilise 2 plaquettes double face TNGX 1606.., diamètre de coupe 1.000" avec un angle d'attaque de 90° et une queue filetée M12 pour les porte-outils modulaires standard, arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de fentes peu profondes et le fraisage hélicoïdal dans les trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)100A2R130M12-ISTN16-C
Product Number8052338
Product FamilyISTN16

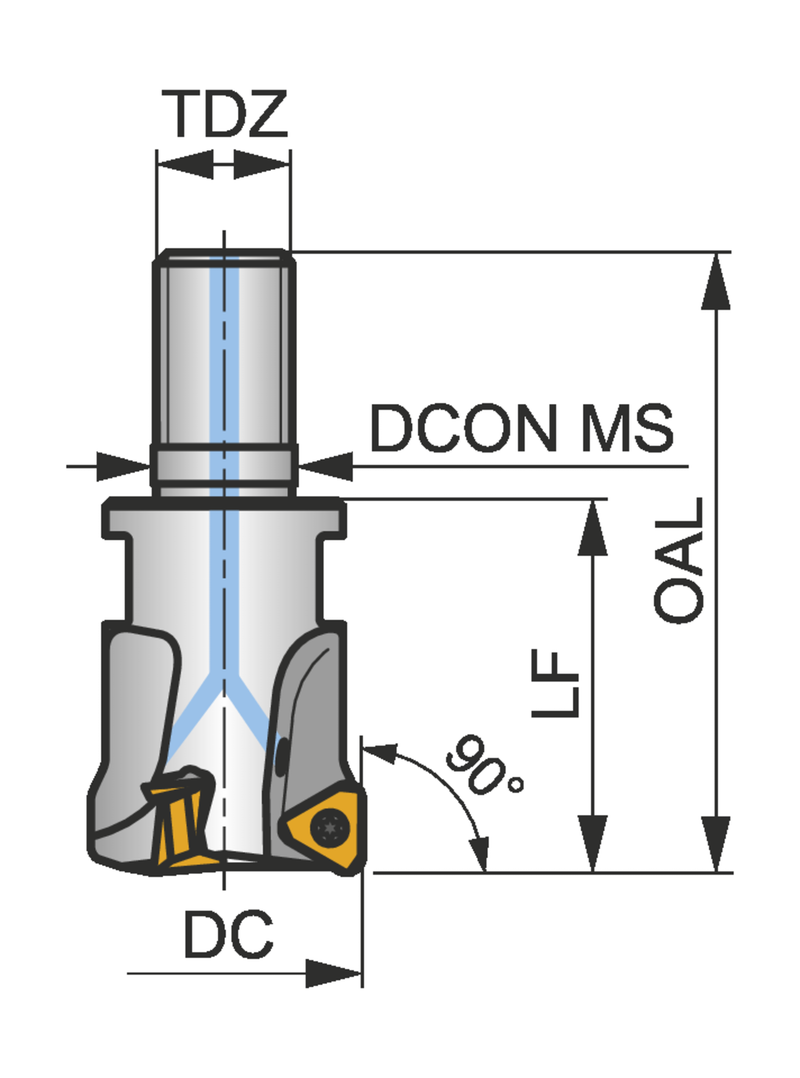

Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Overall Length — in (OAL)2.165"
Overall Length — mm (OAL)55.0 mm
Functional Length — in (LF)1.299"
Functional Length — mm (LF)32.99 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignSTN16
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8052338
EAN3603603866133
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage possible
H — Hardened Materials Déconseillé
File Type Download
100A2R130M12-ISTN16-C — 3D Model STP Download
100A2R130M12-ISTN16-C — 2D Model DXF Download
100A2R130M12-ISTN16-C — Line Drawing PDF Download
