40A4R050B32-STN16-C
40A4R050B32-STN16-C
40A4R050B32-STN16-C

40A4R050B32-STN16-C

UGC DOR8021056
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$667.00 CAD - $667.00 CAD
$667.00 CAD
$667.00 CAD - $667.00 CAD
$667.00 CAD

Vendu en lots de : 1

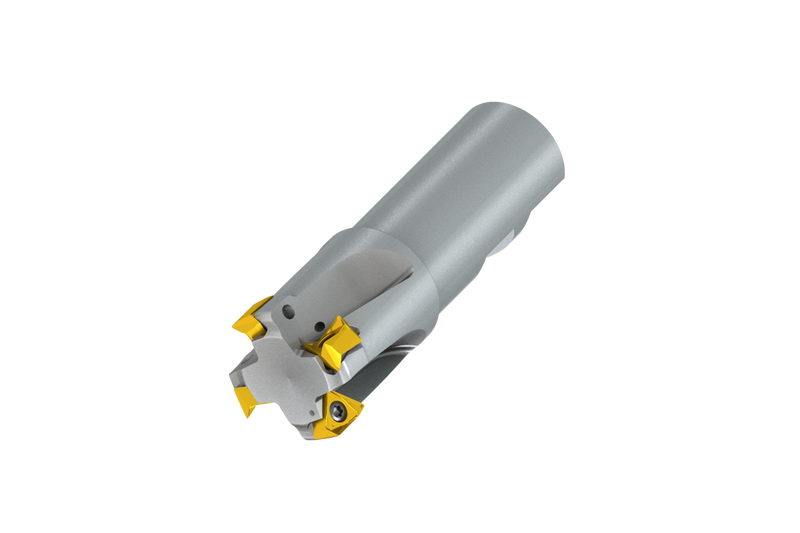

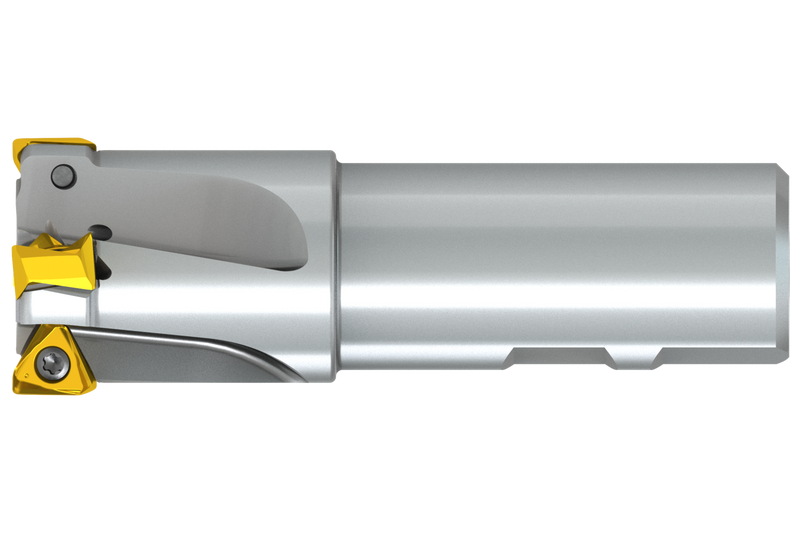

Fraise à surfacer-équarrir avec géométrie double négative utilisant 4 plaquettes double face TNGX 1606.., diamètre de coupe 40 mm avec un angle d'attaque de 90° et une queue Weldon de 32 mm selon DIN 1835B, longueur utile 50 mm et longueur totale 120 mm, arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes et le fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A4R050B32-STN16-C
Product Number8021056
Product FamilySTN16
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

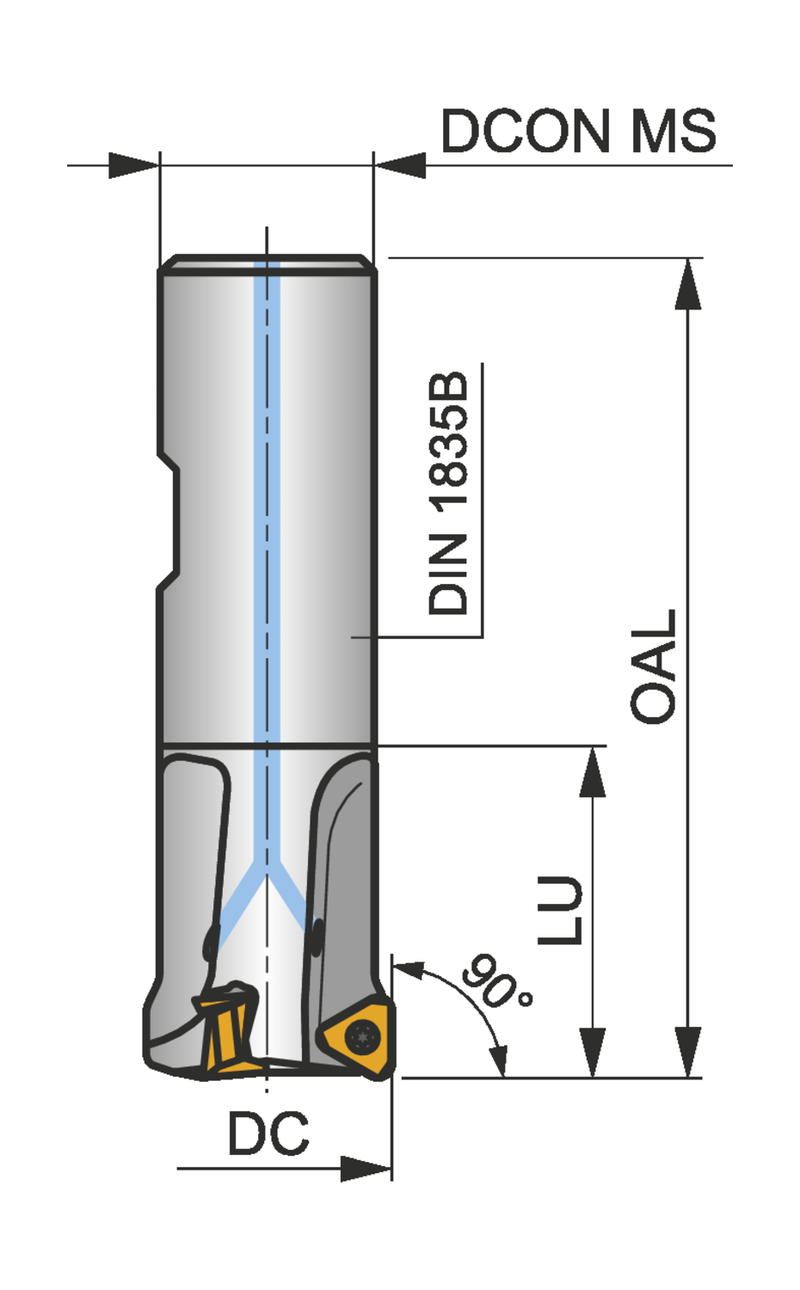

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)4.724"
Overall Length — mm (OAL)120.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSTN16
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8021056
EAN3603603844667
File Type Download
40A4R050B32-STN16-C — 3D Model STP Download
40A4R050B32-STN16-C — 2D Model DXF Download
40A4R050B32-STN16-C — Line Drawing PDF Download
