115A06R-S90TN16-C
115A06R-S90TN16-C
115A06R-S90TN16-C

115A06R-S90TN16-C

UGC DOR8020909
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,222.00 CAD - $1,222.00 CAD
$1,222.00 CAD
$1,222.00 CAD - $1,222.00 CAD
$1,222.00 CAD

Vendu en lots de : 1

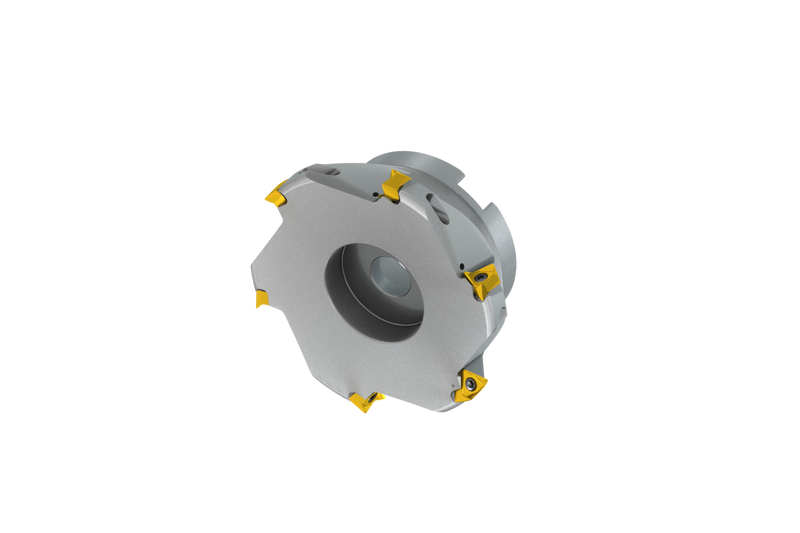

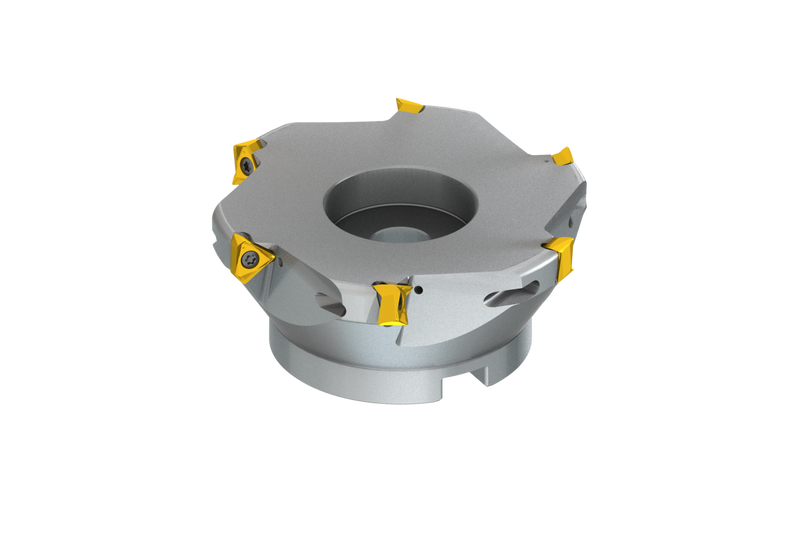

Fraise à surfacer d’épaulement à géométrie double-négative utilisant 6 plaquettes double-face TNGX 1606.., diamètre de coupe 115mm avec un angle d'attaque de 90° et un alésage de raccordement de 32mm selon DIN 8030-A, longueur de dépassement de 50mm, arrosage centralisé et pas différentiel pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes et le fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)115A06R-S90TN16-C
Product Number8020909
Product FamilySTN16
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

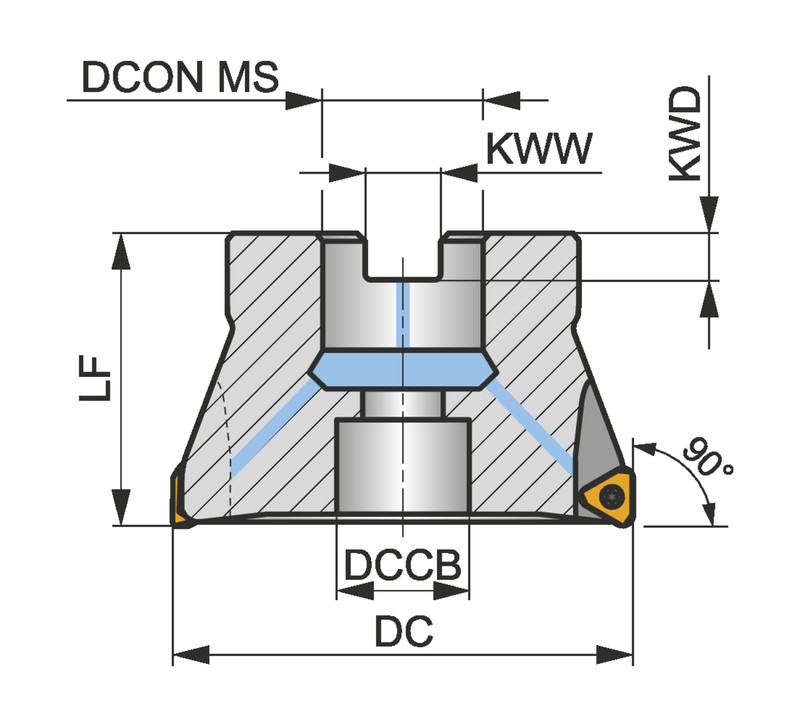

Dimensions
Cutting Diameter — in (DC)4.528"
Cutting Diameter — mm (DC)115.0 mm
Overall Length — in (OAL)1.969"
Overall Length — mm (OAL)50.0 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSTN16
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8020909
EAN3603603844551
File Type Download
115A06R-S90TN16-C — 3D Model STP Download
115A06R-S90TN16-C — 2D Model DXF Download
115A06R-S90TN16-C — Line Drawing PDF Download
