125A3R169M16-ISTN16-C
125A3R169M16-ISTN16-C
125A3R169M16-ISTN16-C

125A3R169M16-ISTN16-C

UGC DOR8021722
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$566.00 CAD - $566.00 CAD
$566.00 CAD
$566.00 CAD - $566.00 CAD
$566.00 CAD

Vendu en lots de : 1

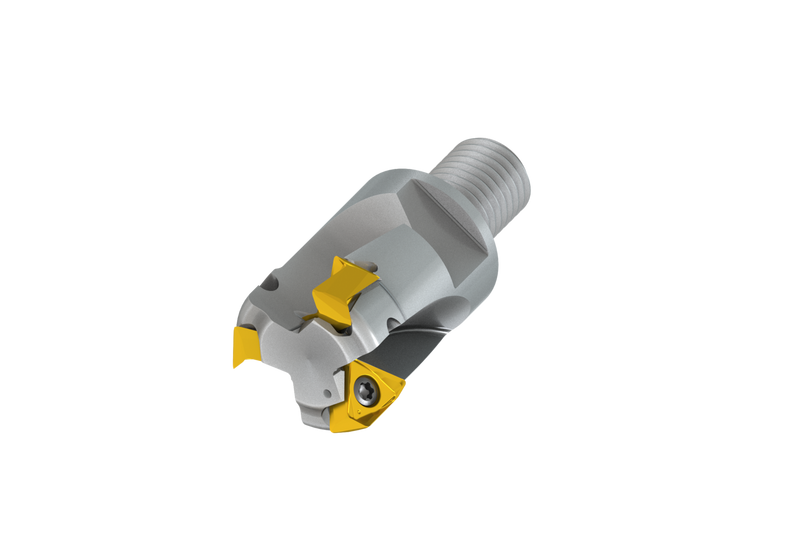

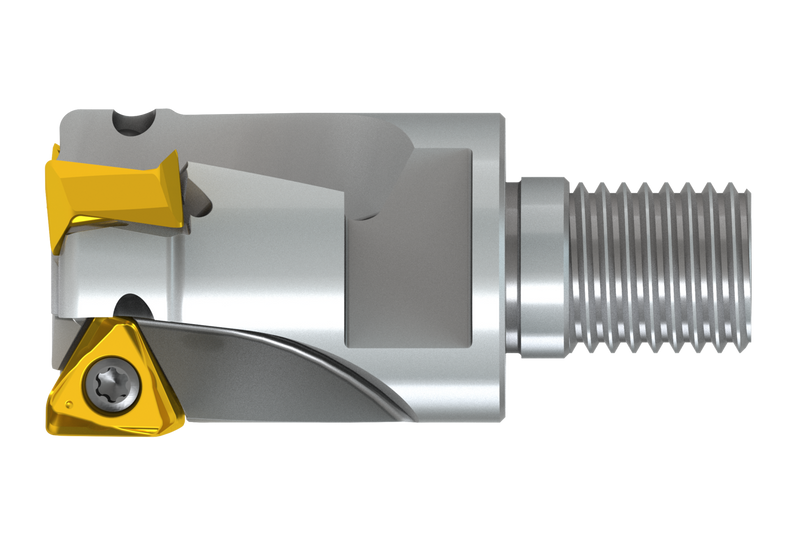

Fraise à surfacer d'épaulement à géométrie double négative qui utilise 3 plaquettes double face TNGX 1606.., diamètre de coupe 1,250" avec angle d'attaque de 90° et queue filetée M16 pour porte-outils modulaires standard, arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds, le fraisage de fentes peu profondes et le fraisage hélicoïdal dans des trous pré-usinés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)125A3R169M16-ISTN16-C
Product Number8021722
Product FamilyISTN16

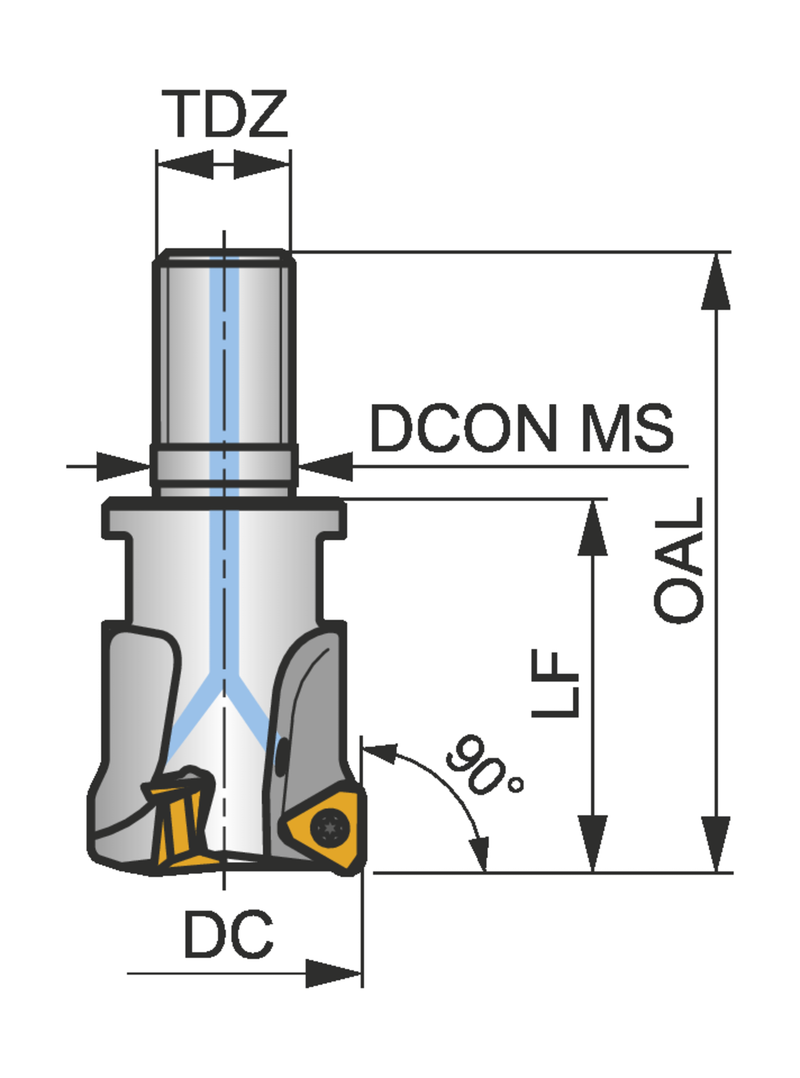

Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.75 mm
Overall Length — in (OAL)2.598"
Overall Length — mm (OAL)66.0 mm
Functional Length — in (LF)1.693"
Functional Length — mm (LF)43.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSTN16
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number8021722
EAN3603603843172
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
125A3R169M16-ISTN16-C — 3D Model STP Download
125A3R169M16-ISTN16-C — 2D Model DXF Download
125A3R169M16-ISTN16-C — Line Drawing PDF Download
