32A2R048M16-SVC22C
32A2R048M16-SVC22C
32A2R048M16-SVC22C

32A2R048M16-SVC22C

UGC DOR6757984
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$608.00 CAD - $608.00 CAD
$608.00 CAD
$608.00 CAD - $608.00 CAD
$608.00 CAD

Vendu en lots de : 1

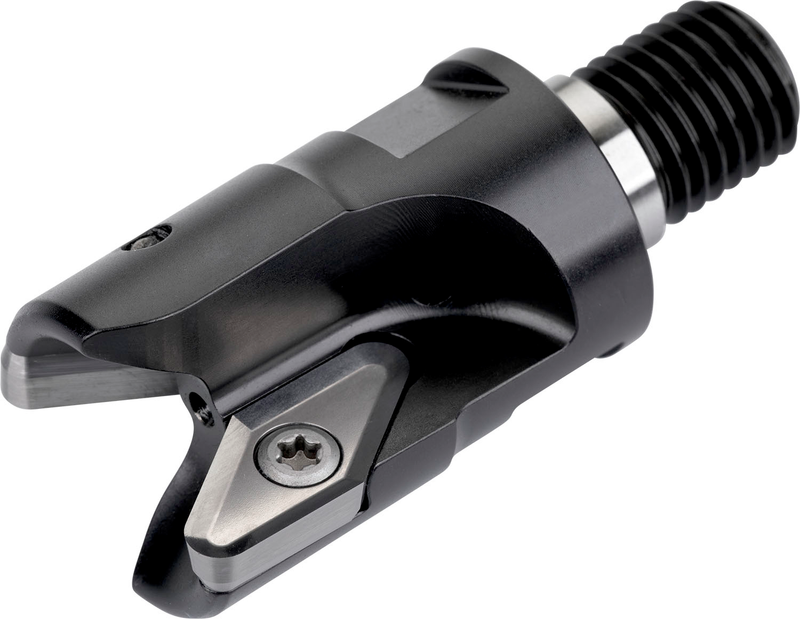

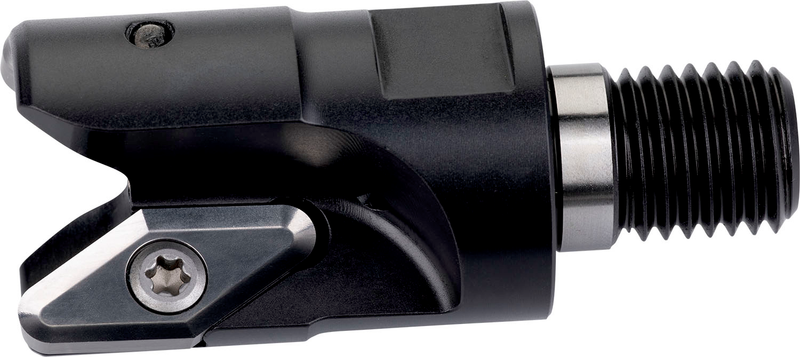

Fraise en bout à géométrie double positive utilisant 2 plaquettes simples VCGT 220530F-FA, diamètre de coupe 32 mm avec angle d'attaque de 90° et queue filetée M16 pour porte-outils modulaires standards, longueur de dépassement 48 mm, arrosage interne pour le fraisage hélicoïdal et le fraisage en plongée progressive avec une profondeur de coupe maximale de 3,0 (16,0) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A2R048M16-SVC22C
Product Number6757984
Product FamilySVC22C
Insert Geometry
Depth of Cut Max — mm (APMX)16.0 mm

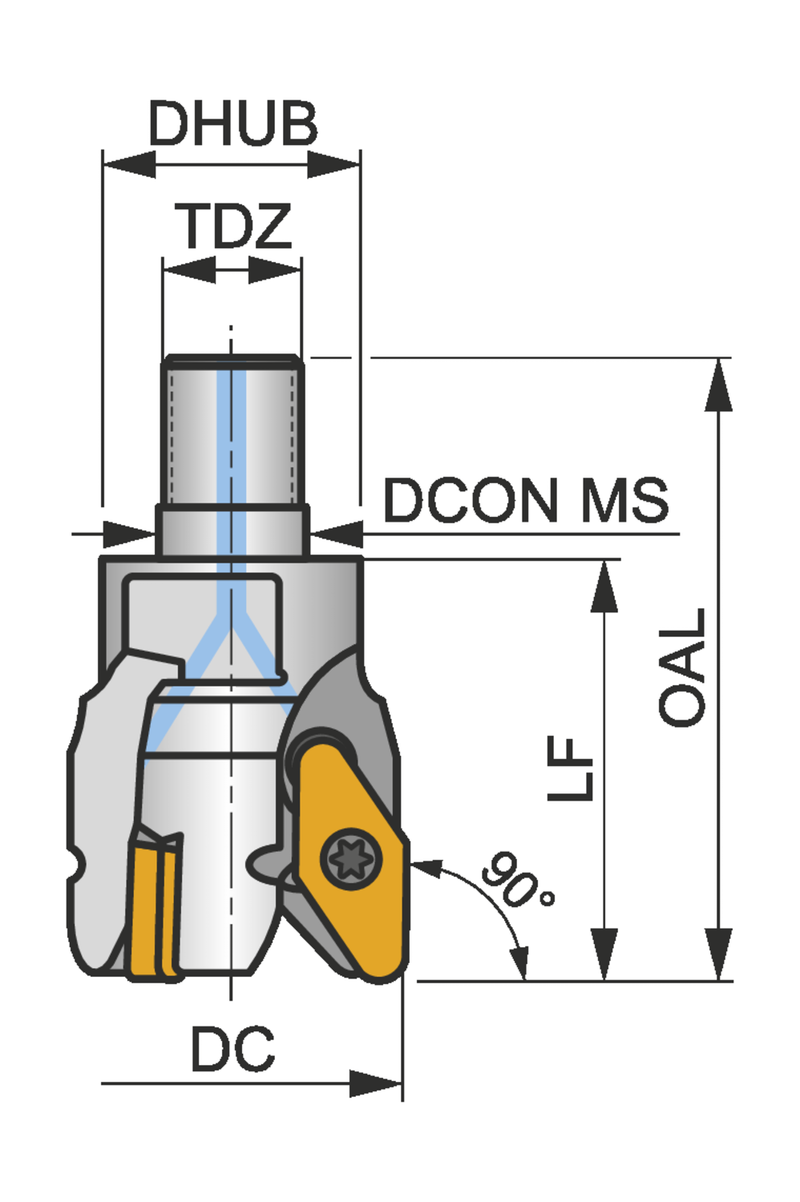

Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)2.795"
Overall Length — mm (OAL)71.0 mm
Functional Length — mm (LF)48.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSVC22C
ShankRaccord fileté
Direction of ToolNeutre
Through Coolant Yes
Reference Numbers
EDP Number6757984
EAN3603602933409
File Type Download
32A2R048M16-SVC22C — 3D Model STP Download
32A2R048M16-SVC22C — Line Drawing PDF Download
