40A3R045A32-SVC22C
40A3R045A32-SVC22C
40A3R045A32-SVC22C

40A3R045A32-SVC22C

UGC DOR6757990
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$772.00 CAD - $772.00 CAD
$772.00 CAD
$772.00 CAD - $772.00 CAD
$772.00 CAD

Vendu en lots de : 1

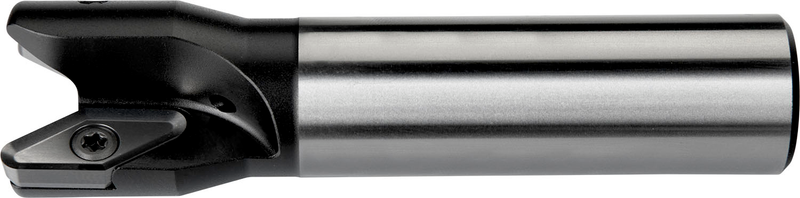

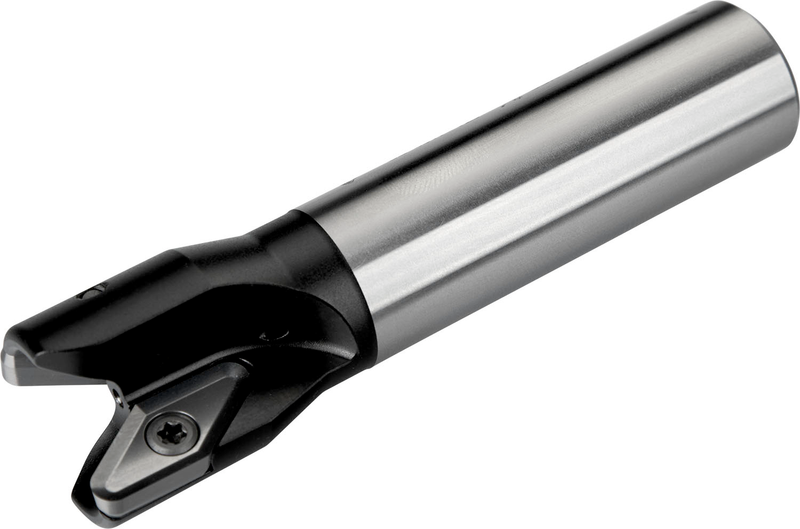

Fraise en bout à double géométrie positive utilisant 3 plaquettes unilatérales VCGT 220530F-FA, diamètre de coupe 40 mm avec angle d'attaque de 90° et queue cylindrique 32 mm selon DIN 1835A, longueur totale 150 mm, arrosage central pour le fraisage hélicoïdal et le fraisage en plongée progressive avec une profondeur de coupe maximale de 3,0 (16,0) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40A3R045A32-SVC22C
Product Number6757990
Product FamilySVC22C
Insert Geometry
Depth of Cut Max — mm (APMX)16.0 mm

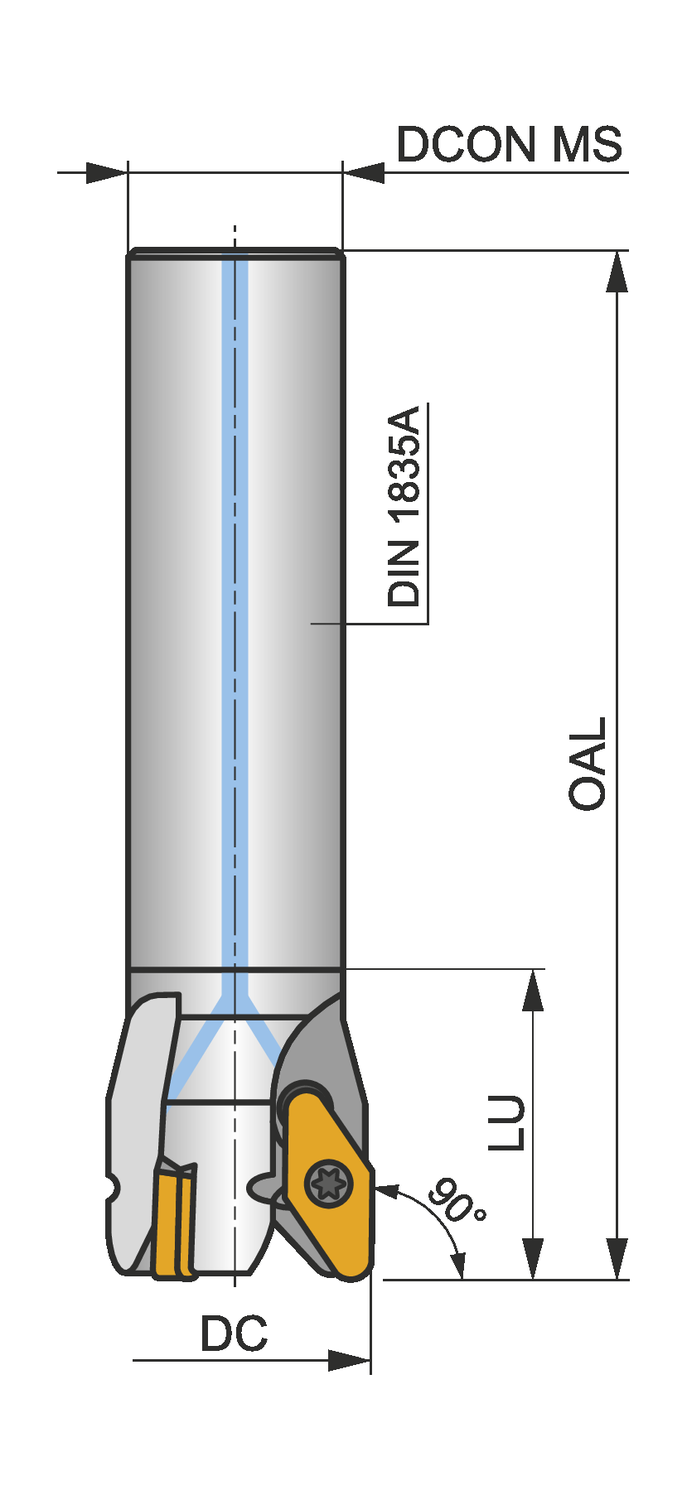

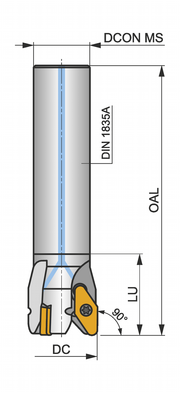

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSVC22C
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6757990
EAN3603602933461
File Type Download
40A3R045A32-SVC22C — 3D Model STP Download
40A3R045A32-SVC22C — Line Drawing PDF Download
