16E2R030A16-SZD07
16E2R030A16-SZD07
16E2R030A16-SZD07

16E2R030A16-SZD07

UGC DOR6760246
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$379.00 CAD - $379.00 CAD
$379.00 CAD
$379.00 CAD - $379.00 CAD
$379.00 CAD

Vendu en lots de : 1

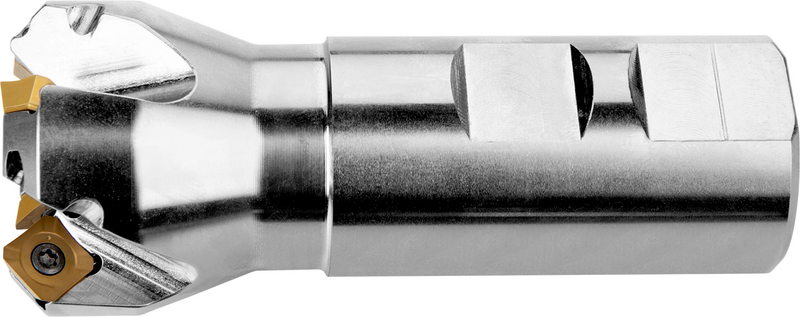

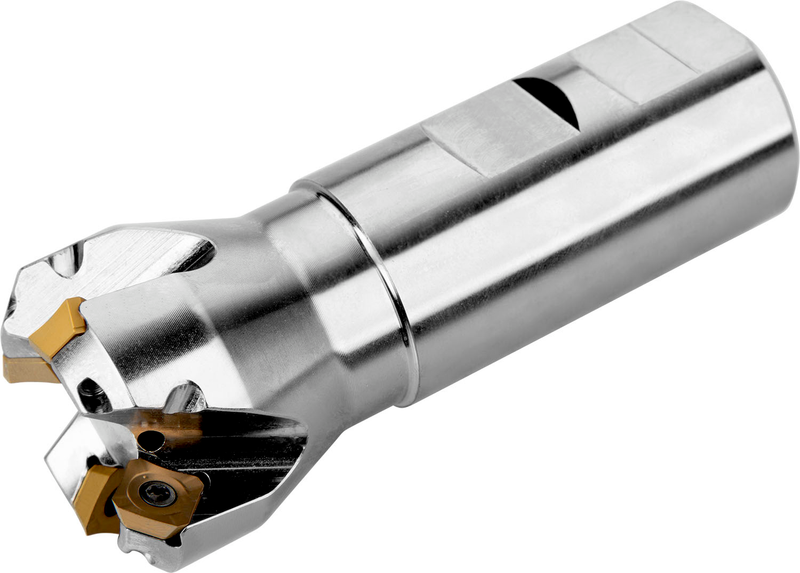

Fraise à avance rapide à géométrie positive/négative utilisant 2 plaquettes simple face ZDCW 0703..., diamètre de coupe 16 mm avec queue cylindrique de 16,0 mm selon DIN 1835A, longueur totale 100 mm, arrosage central pour le surfaçage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16E2R030A16-SZD07
Product Number6760246
Product FamilySZD07
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm
Dimensions
Cutting Diameter — in (DC)0.236"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSZD07
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6760246
EAN3603602955920
File Type Download
16E2R030A16-SZD07 — 3D Model STP Download
16E2R030A16-SZD07 — 2D Model DXF Download
16E2R030A16-SZD07 — Line Drawing PDF Download
