20E3R040A20-SZD07
20E3R040A20-SZD07
20E3R040A20-SZD07

20E3R040A20-SZD07

UGC DOR6760249
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$387.00 CAD - $387.00 CAD
$387.00 CAD
$387.00 CAD - $387.00 CAD
$387.00 CAD

Vendu en lots de : 1

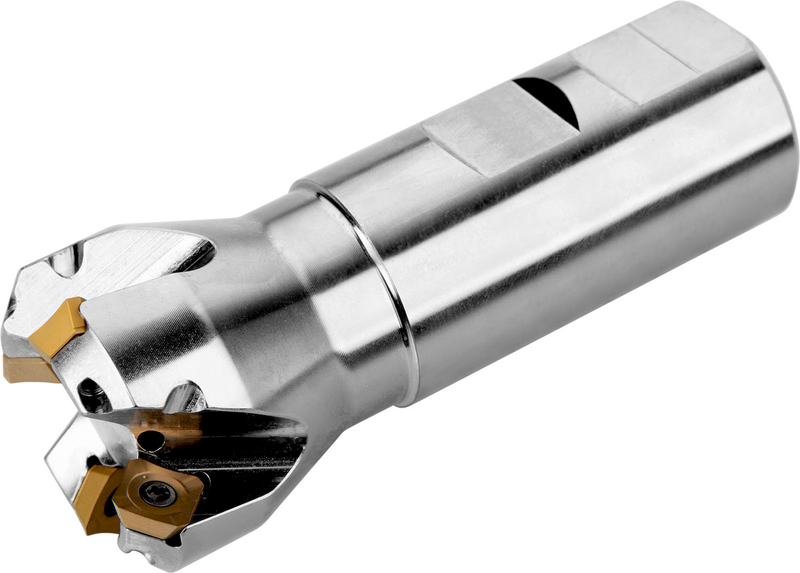

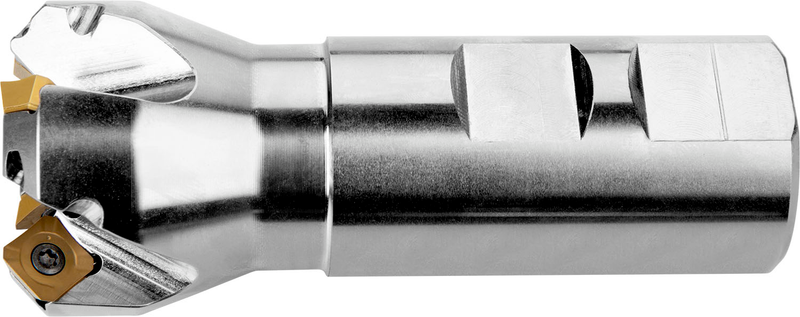

Fraise à avance rapide à géométrie positive/négative qui utilise 3 plaquettes simple face ZDCW 0703..., diamètre de coupe 20mm avec queue cylindrique de 20,0mm selon DIN 1835A, longueur totale 120mm, arrosage central pour le surfaçage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20E3R040A20-SZD07
Product Number6760249
Product FamilySZD07
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

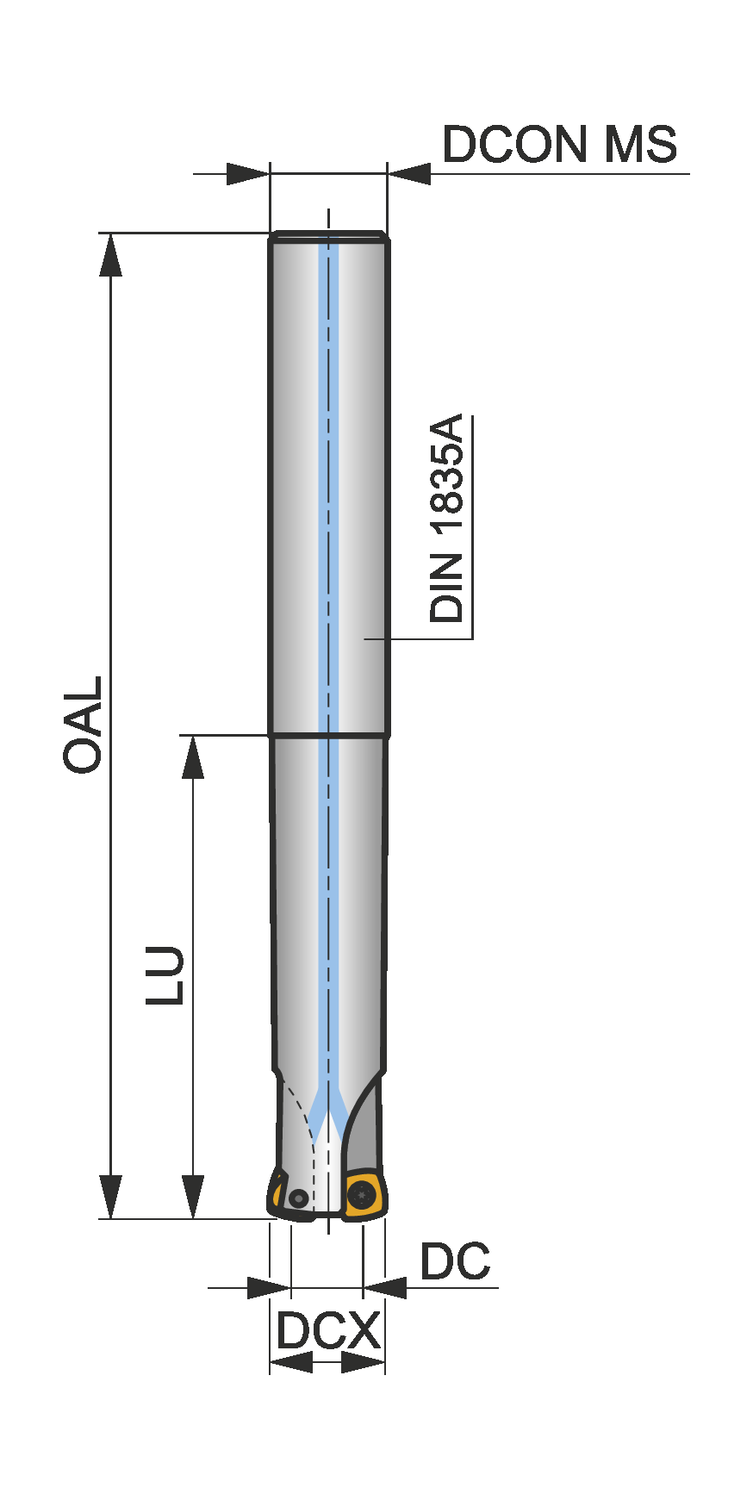

Dimensions
Cutting Diameter — in (DC)0.394"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)4.724"
Overall Length — mm (OAL)120.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSZD07
ShankQueue cylindrique DIN 1835A
Direction of ToolGauche
Through Coolant Yes
Reference Numbers
EDP Number6760249
EAN3603602955951
File Type Download
20E3R040A20-SZD07 — 3D Model STP Download
20E3R040A20-SZD07 — 2D Model DXF Download
20E3R040A20-SZD07 — Line Drawing PDF Download
