SIR 1820 P 16
SIR 1820 P 16
SIR 1820 P 16

SIR 1820 P 16

UGC DOR6756676
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$306.00 CAD - $306.00 CAD
$306.00 CAD
$306.00 CAD - $306.00 CAD
$306.00 CAD

Vendu en lots de : 1

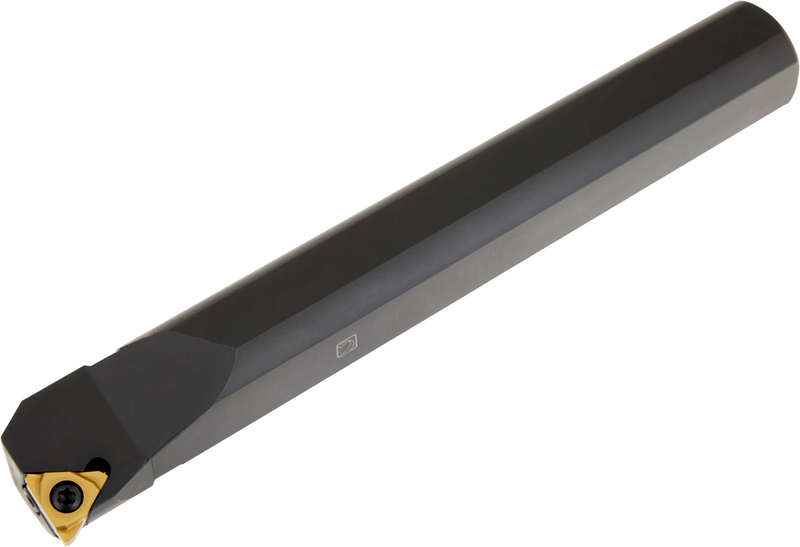

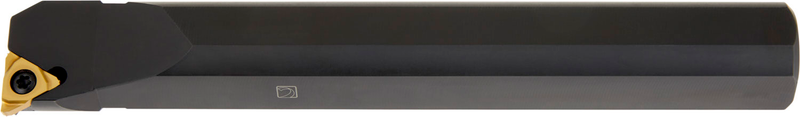

Barre d'alésage à fileter à plaquette vissée avec un angle d'hélice de 1,5° pour loger un insert triangulaire avec un diamètre de cercle inscrit de 9,525 mm (désignation TN 16NR..), version standard droite avec queue cylindrique en acier sans trou d'arrosage, diamètre 20 mm et longueur totale de 170 mm pour filetage intérieur, gorge pour circlips et gorge pour joint torique

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SIR 1820 P 16
Product Number6756676
Product FamilySI(RA)

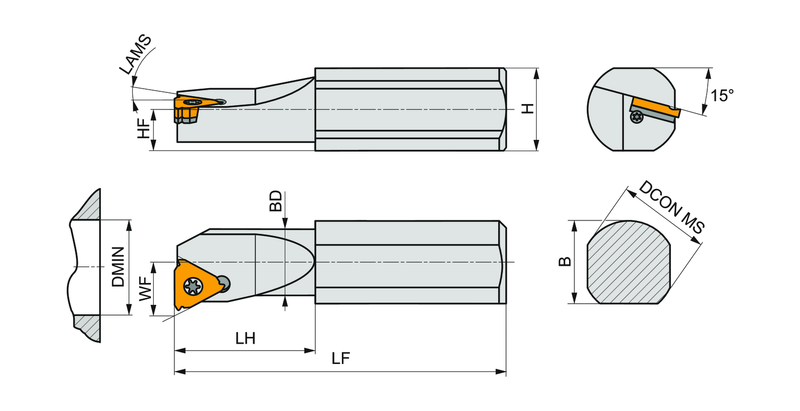

Dimensions
Functional Length — in (LF)6.693"
Functional Length — mm (LF)170.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)1.063"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6756676
EAN3603602920423
File Type Download
SIR 1820 P 16 — 3D Model STP Download
SIR 1820 P 16 — 2D Model DXF Download
SIR 1820 P 16 — Line Drawing PDF Download
