SIL 1416 N 16-0
SIL 1416 N 16-0
SIL 1416 N 16-0

SIL 1416 N 16-0

UGC DOR6757162
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$262.00 CAD - $262.00 CAD
$262.00 CAD
$262.00 CAD - $262.00 CAD
$262.00 CAD

Vendu en lots de : 1

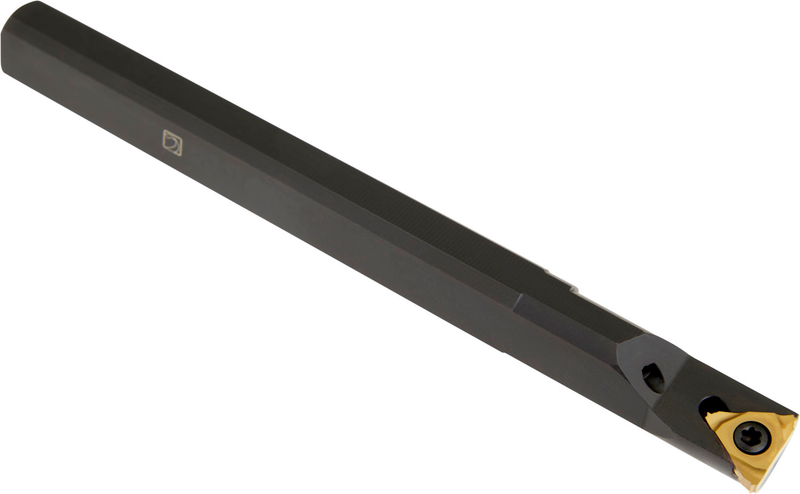

Barre de tournage à fileter à plaquette vissée avec un angle d'hélice de 0° pour la fixation d'un insert de forme triangulaire avec un diamètre de cercle inscrit de 9,525 mm (désignation TN 16NL..), conception standard à gauche avec queue droite en acier sans trou de refroidissement, diamètre de 16 mm et longueur totale de 160 mm pour le filetage interne, le rainurage de circlips et le rainurage de joints toriques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SIL 1416 N 16-0
Product Number6757162
Product FamilySI(RL)

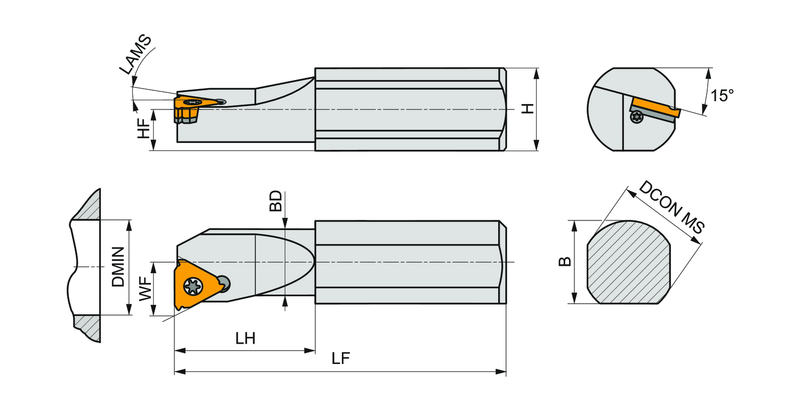

Dimensions
Functional Length — in (LF)6.299"
Functional Length — mm (LF)160.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.571 mm
Min. Bore Dia. — in (DMIN)0.866"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757162
EAN3603602925282
File Type Download
SIL 1416 N 16-0 — 3D Model STP Download
SIL 1416 N 16-0 — Line Drawing PDF Download
