SIR 3240 T 22-A
SIR 3240 T 22-A
SIR 3240 T 22-A

SIR 3240 T 22-A

UGC DOR6757168
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$504.00 CAD - $504.00 CAD
$504.00 CAD
$504.00 CAD - $504.00 CAD
$504.00 CAD

Vendu en lots de : 1

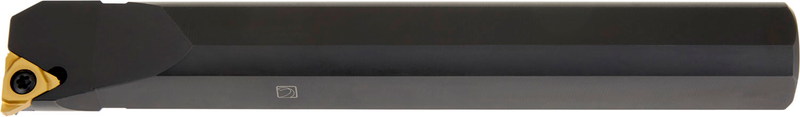

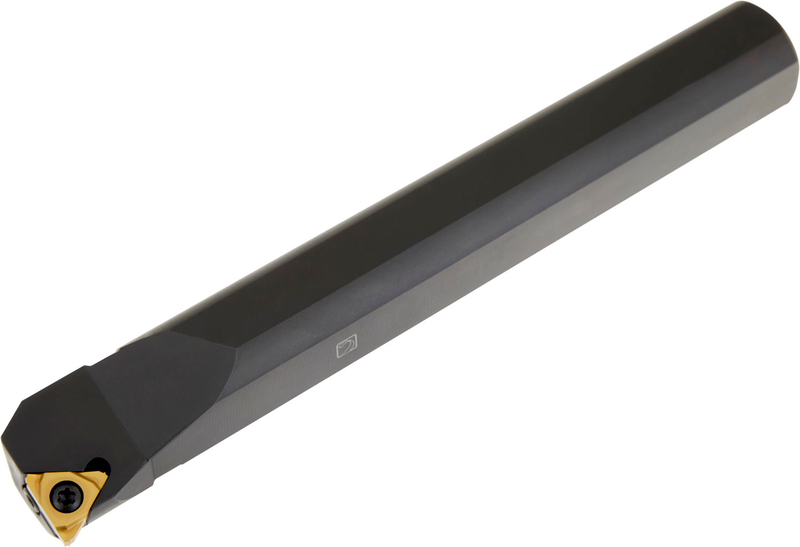

Porte-outil de tournage de filetages à vis avec un angle d'hélice de 1,5° pour la fixation d'un insert triangulaire d'un diamètre de cercle inscrit de 12,7 mm (désignation TN 22NR..), version standard droite avec queue cylindrique en acier sans trou d'arrosage, diamètre de 40 mm et longueur totale de 300 mm pour le filetage intérieur, le rainurage pour circlips et le rainurage pour joints toriques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SIR 3240 T 22-A
Product Number6757168
Product FamilySI(RL)

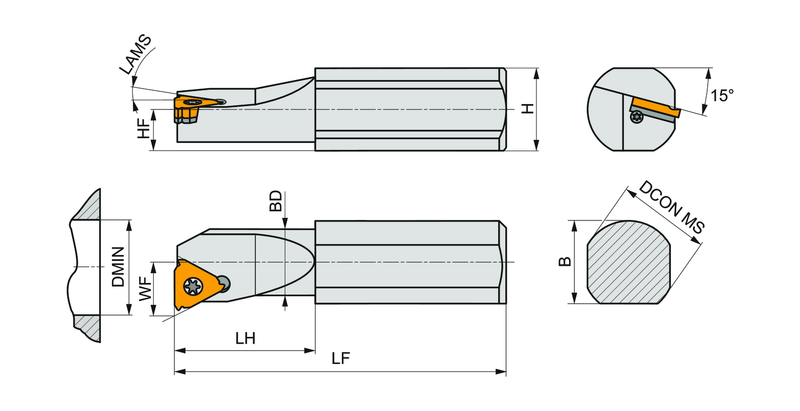

Dimensions
Functional Length — in (LF)11.811"
Functional Length — mm (LF)300.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Shank Height — mm (H)1.26 mm
Min. Bore Dia. — in (DMIN)1.89"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757168
EAN3603602925343
File Type Download
SIR 3240 T 22-A — 3D Model STP Download
SIR 3240 T 22-A — Line Drawing PDF Download
