SIL 0013 M 11-1
SIL 0013 M 11-1
SIL 0013 M 11-1

SIL 0013 M 11-1

UGC DOR6757253
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$235.00 CAD - $235.00 CAD
$235.00 CAD
$235.00 CAD - $235.00 CAD
$235.00 CAD

Vendu en lots de : 1

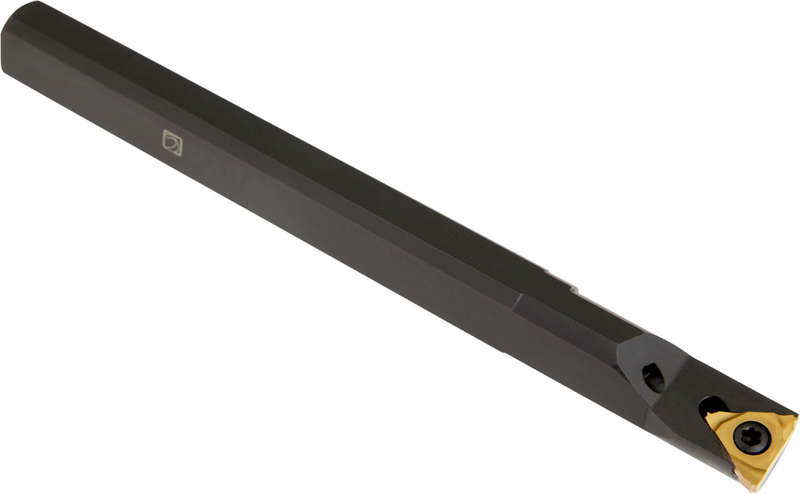

Barre de tournage à fileter à plaquette vissée avec un angle d'hélice de 1° pour la fixation d'une plaquette de forme triangulaire avec un diamètre de cercle inscrit de 6,35mm (désignation TN 11NL.. ), version standard à gauche avec queue droite en acier sans trou de refroidissement, 16mm de diamètre et 150mm de longueur totale pour le filetage intérieur, le rainurage pour circlips et le rainurage pour joints toriques

For more information about this product, click here

Identification
Ordering Code (ANSI)SIL 0013 M 11-1
Product Name (ISO)SIL 0013 H 11-1
Product Number6757253
Product FamilySI(AR)

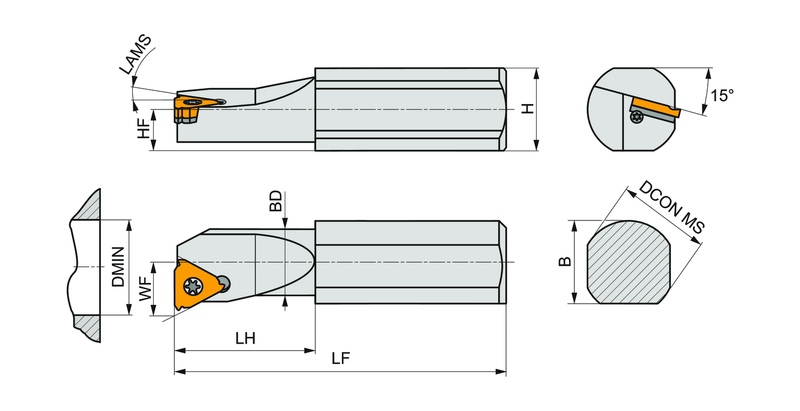

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.551 mm
Min. Bore Dia. — in (DMIN)0.63"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6757253
EAN3603602926098
File Type Download
SIL 0013 M 11-1 — 3D Model STP Download
SIL 0013 M 11-1 — Line Drawing PDF Download
