SIL 2325 Q 16
SIL 2325 Q 16
SIL 2325 Q 16

SIL 2325 Q 16

UGC DOR6757255
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$321.00 CAD - $321.00 CAD
$321.00 CAD
$321.00 CAD - $321.00 CAD
$321.00 CAD

Vendu en lots de : 1

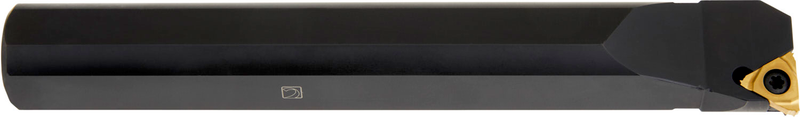

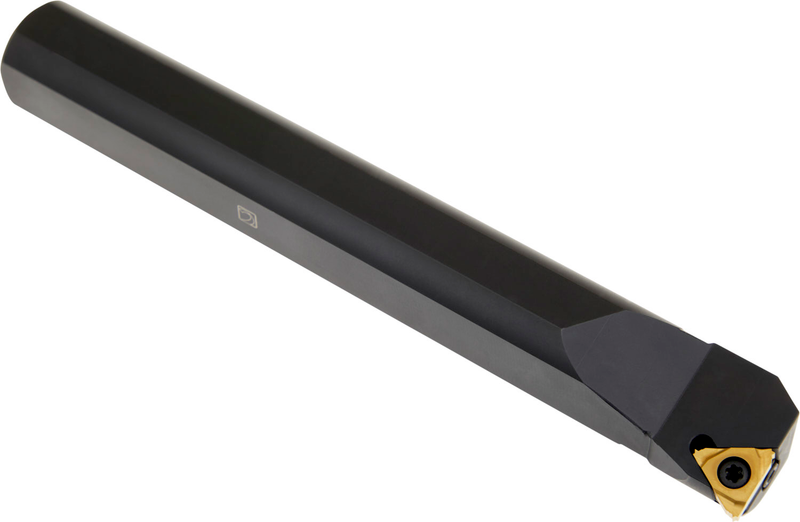

Barre de tournage de filetages à serrage par vis, avec un angle d'hélice de 1,5°, pour la fixation d'un insert triangulaire d'un diamètre de cercle inscrit de 9,525 mm (désignation TN 16NL..), version standard à gauche avec queue droite en acier sans trou de refroidissement, de 25 mm de diamètre et de 180 mm de longueur totale pour le filetage intérieur, le rainurage de circlips et le rainurage de joints toriques

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SIL 2325 Q 16
Product Number6757255
Product FamilySI(RL)

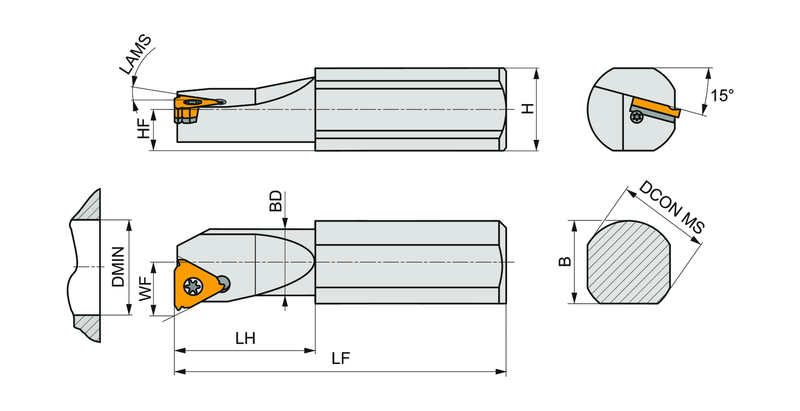

Dimensions
Functional Length — in (LF)7.087"
Functional Length — mm (LF)180.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.142"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757255
EAN3603602926111
File Type Download
SIL 2325 Q 16 — 3D Model STP Download
SIL 2325 Q 16 — Line Drawing PDF Download
