SIR-S 2532 S 22-A
SIR-S 2532 S 22-A
SIR-S 2532 S 22-A

SIR-S 2532 S 22-A

UGC DOR6757419
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$381.00 CAD - $381.00 CAD
$381.00 CAD
$381.00 CAD - $381.00 CAD
$381.00 CAD

Vendu en lots de : 1

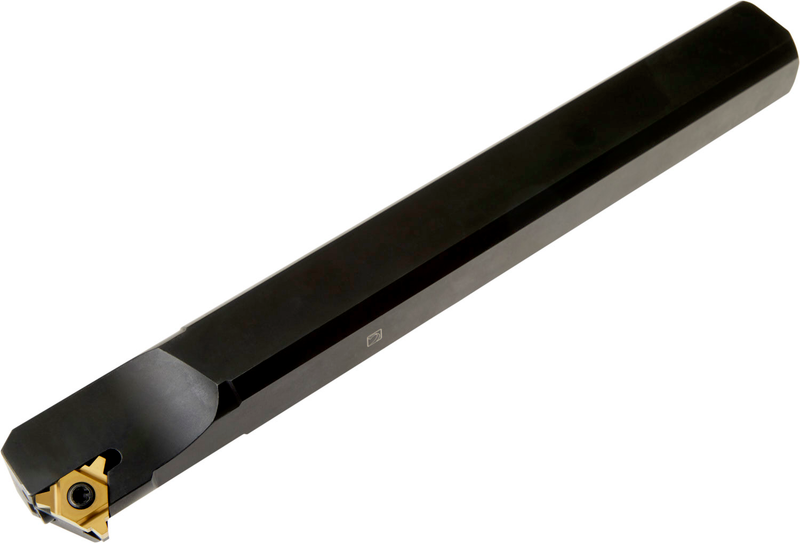

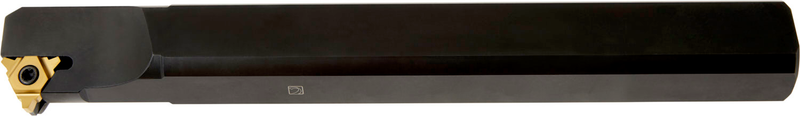

Barre de tournage de filetages à serrage par vis avec un angle d'hélice de 1,5° pour maintenir un insert triangulaire d'un diamètre de cercle inscrit de 12,7 mm (désignation TN 22NN..), conception spéciale à droite avec une queue droite en acier sans trou d'arrosage, d'un diamètre de 32 mm et d'une longueur totale de 250 mm pour le filetage interne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SIR-S 2532 S 22-A
Product Number6757419
Product FamilySI(RL)-S

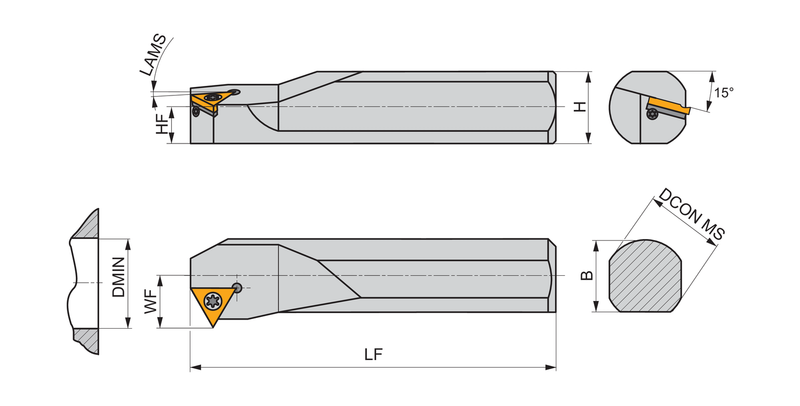

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)0.984 mm
Min. Bore Dia. — in (DMIN)1.535"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6757419
EAN3603602927750
File Type Download
SIR-S 2532 S 22-A — 3D Model STP Download
SIR-S 2532 S 22-A — Line Drawing PDF Download
