UGC DOR6821307
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$575.14 CAD - $575.14 CAD
$575.14 CAD
$575.14 CAD - $575.14 CAD
$575.14 CAD

Vendu en lots de : 1

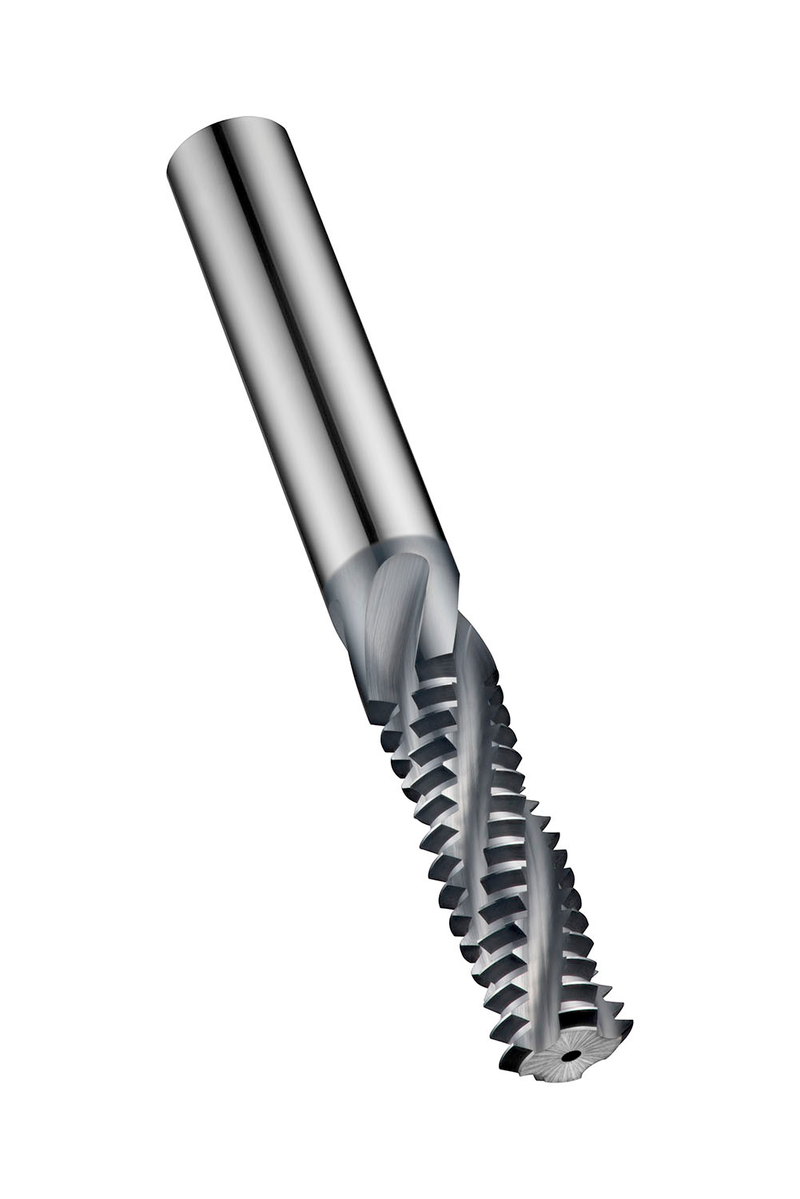

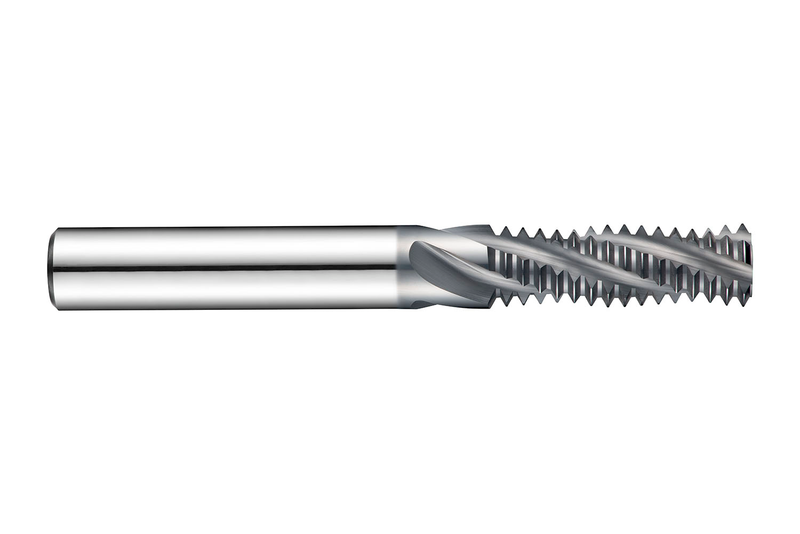

Fraise à fileter, pour filet ISO-Métrique ≥ M16 avec un pas de 2,00 mm, dimensions selon la norme DORMER avec 4 arêtes de coupe, diamètre de coupe de 12 mm et queue cylindrique de 12 mm selon DIN 6535 HA, en carbure monobloc avec revêtement Alcrona Pro, arrosage central et angle d'hélice de 27° pour le fraisage d'un filetage interne à droite ou à gauche d'une longueur maximale de 34 mm dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux, le titane ou les alliages de titane, la fonte trempée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)J21512.0X2.0
GradeAlcrona Pro
Product Number6821307
Product FamilyJ215
Insert Geometry

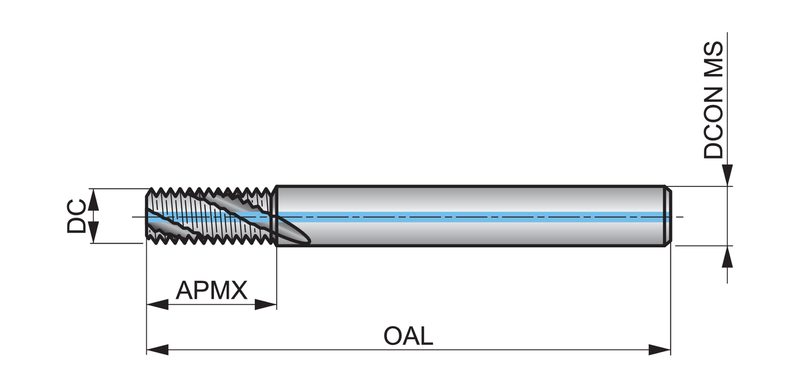

Depth of Cut Max — mm (APMX)34.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm

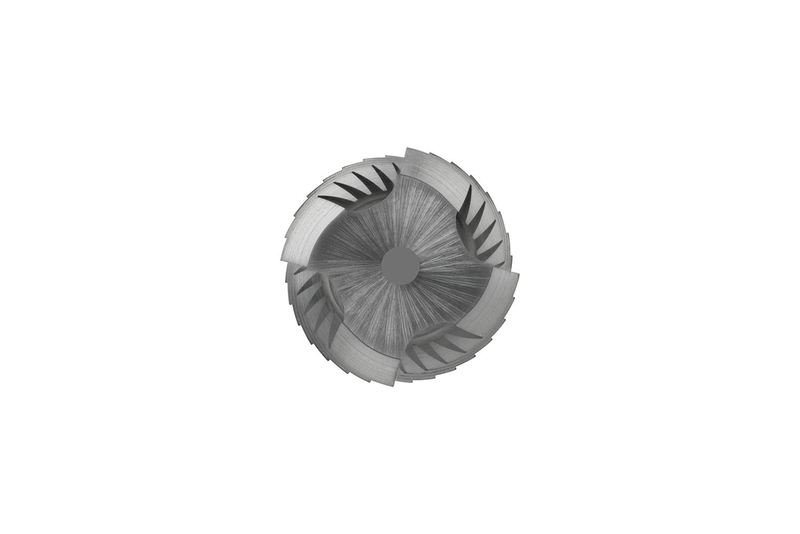

Number of Flutes (NOF)4
Helix Angle (FHA)27.0°
Threading
Thread Diameter Size (TDZ)M16
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.0 mm
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardNorme de travail
Reference Numbers
EDP Number46821307
EAN7320760688854
File Type Download
J21512.0X2.0 — Line Drawing PDF Download
