XLCFN 3203 M 4.00
XLCFN 3203 M 4.00
XLCFN 3203 M 4.00

XLCFN 3203 M 4.00

UGC DOR6756327
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$146.00 CAD - $146.00 CAD
$146.00 CAD
$146.00 CAD - $146.00 CAD
$146.00 CAD

Vendu en lots de : 1

Lame d'outil à tronçonner et à gorge à serrage rapide pour plaquette à une seule extrémité avec largeur de coupe de 4 mm (désignation LFMX 4.1-. ), assemblage de type outil avec 32-DU.. pour une profondeur de gorge maximale de 50 mm, hauteur de lame de 32 mm et longueur de 150 mm pour le rainurage radial profond, le tronçonnage et le tronçonnage de tubes

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XLCFN 3203 M 4.00
Product Number6756327
Product FamilyXLCFN B
Insert Geometry
Depth of Cut Max — in (APMX)1.969"

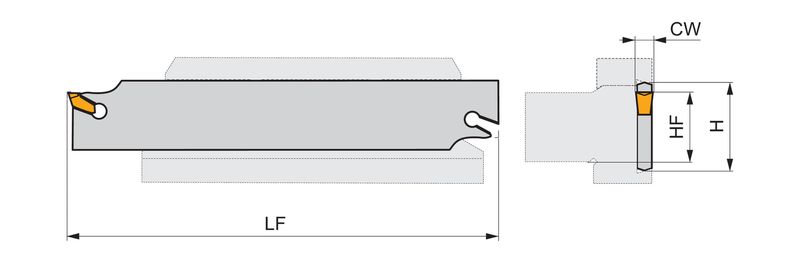

Dimensions
Functional Length — in (LF)5.906"
Functional Length — mm (LF)150.0 mm
Shank Height — mm (H)1.26 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6756327
EAN3603602916938
File Type Download
XLCFN 3203 M 4.00 — 3D Model STP Download
XLCFN 3203 M 4.00 — Line Drawing PDF Download
