A0121/2
A0121/2
A0121/2
A0121/2

A0121/2

UGC DOR5966617
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.91 CAD - $14.91 CAD
$14.91 CAD
$14.91 CAD - $14.91 CAD
$14.91 CAD

Vendu en lots de : 5

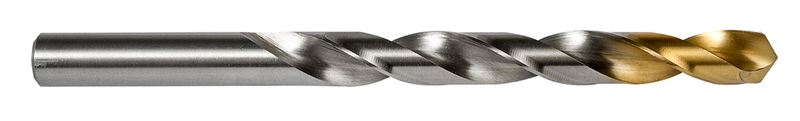

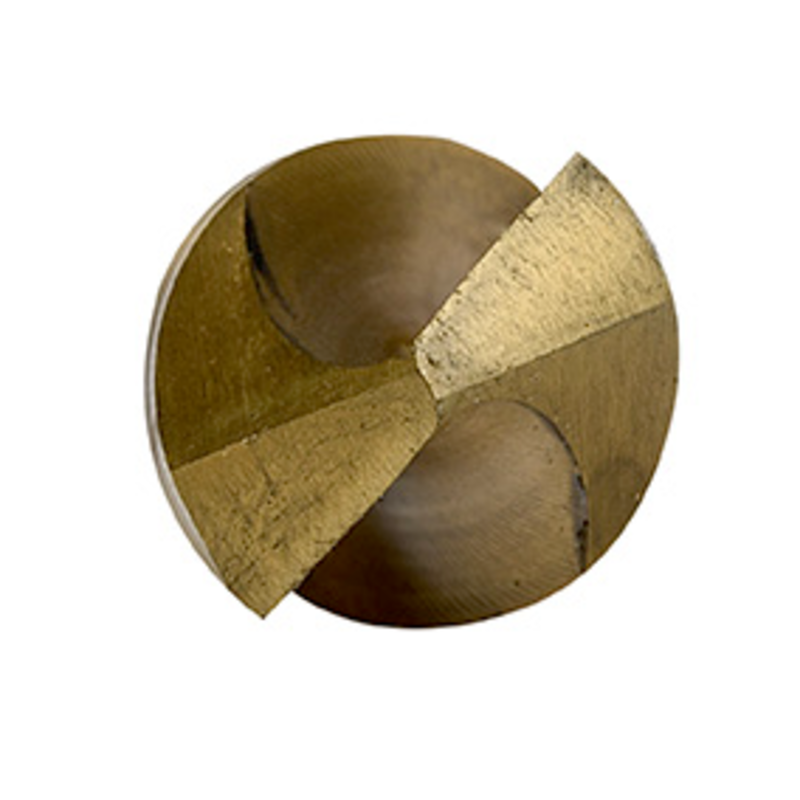

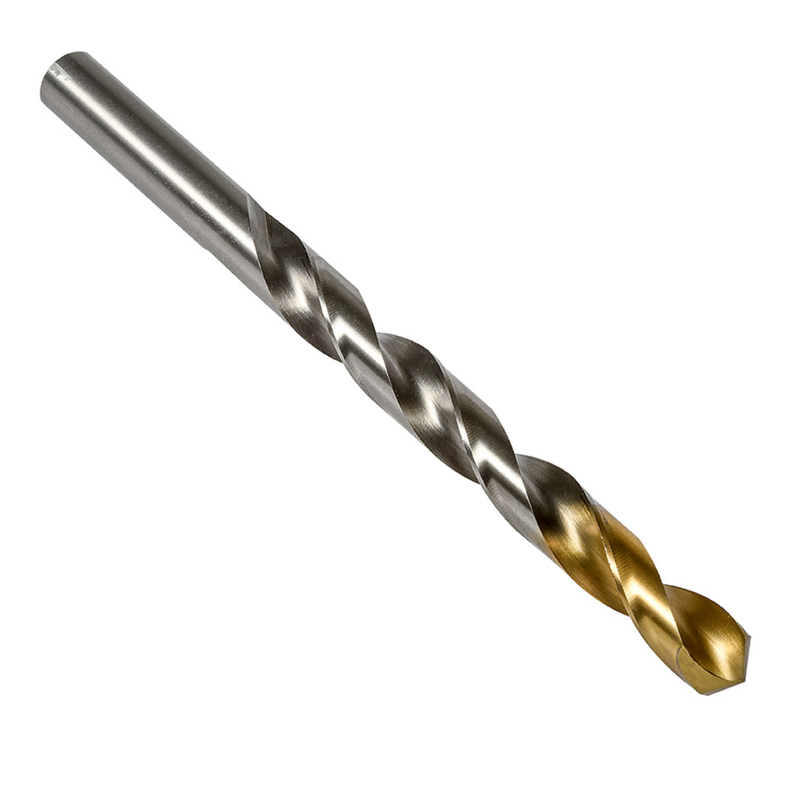

Foret de longueur moyenne avec queue droite, diamètre 0,5000" (1/2) avec une longueur totale de 6" et une longueur de goujure de 4.1/2" selon la norme ANSI avec une pointe à 118° affûtée en croix, en acier rapide avec revêtement TiN-tip pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0121/2
GradeClair/TiN
Product Number5966617
Product FamilyA012
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)4.5"
Flute Length — mm (LCF)114.3 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number571880
EAN7320760571880
File Type Download
A0121/2 — 3D Model STP Download
A0121/2 — Line Drawing PDF Download
