A012N57
A012N57
A012N57
A012N57

A012N57

UGC DOR5966654
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.06 CAD - $2.06 CAD
$2.06 CAD
$2.06 CAD - $2.06 CAD
$2.06 CAD

Vendu en lots de : 10

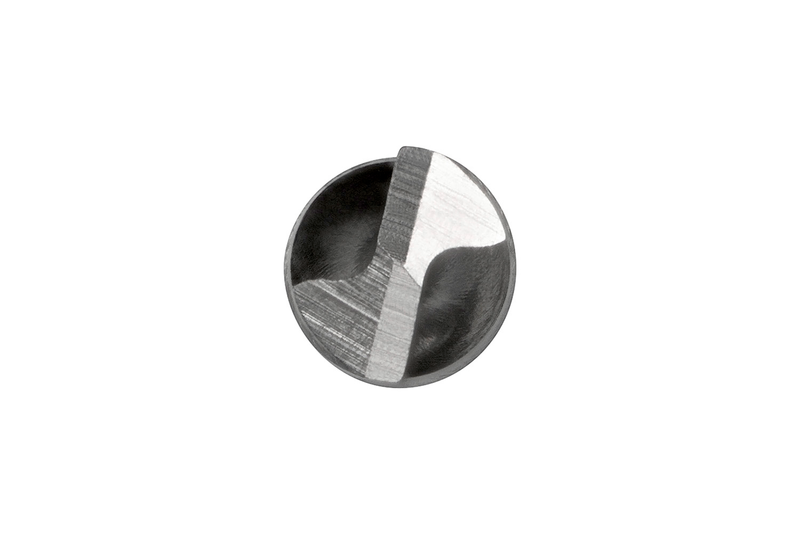

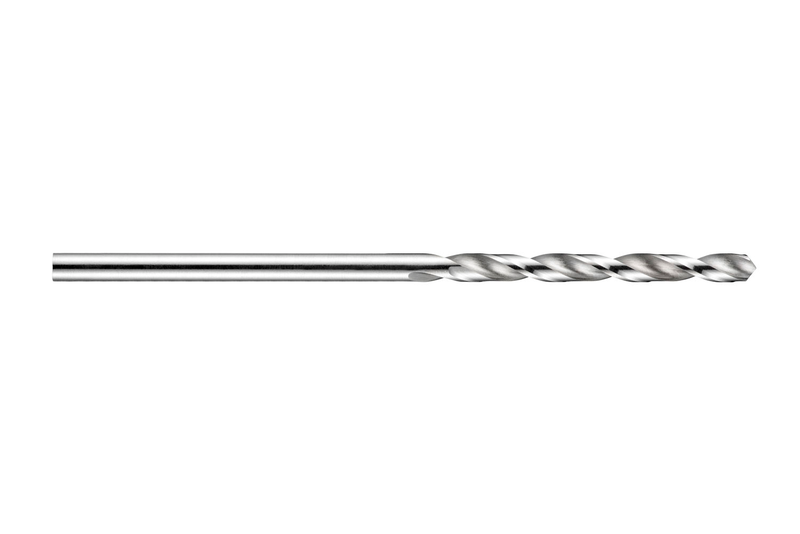

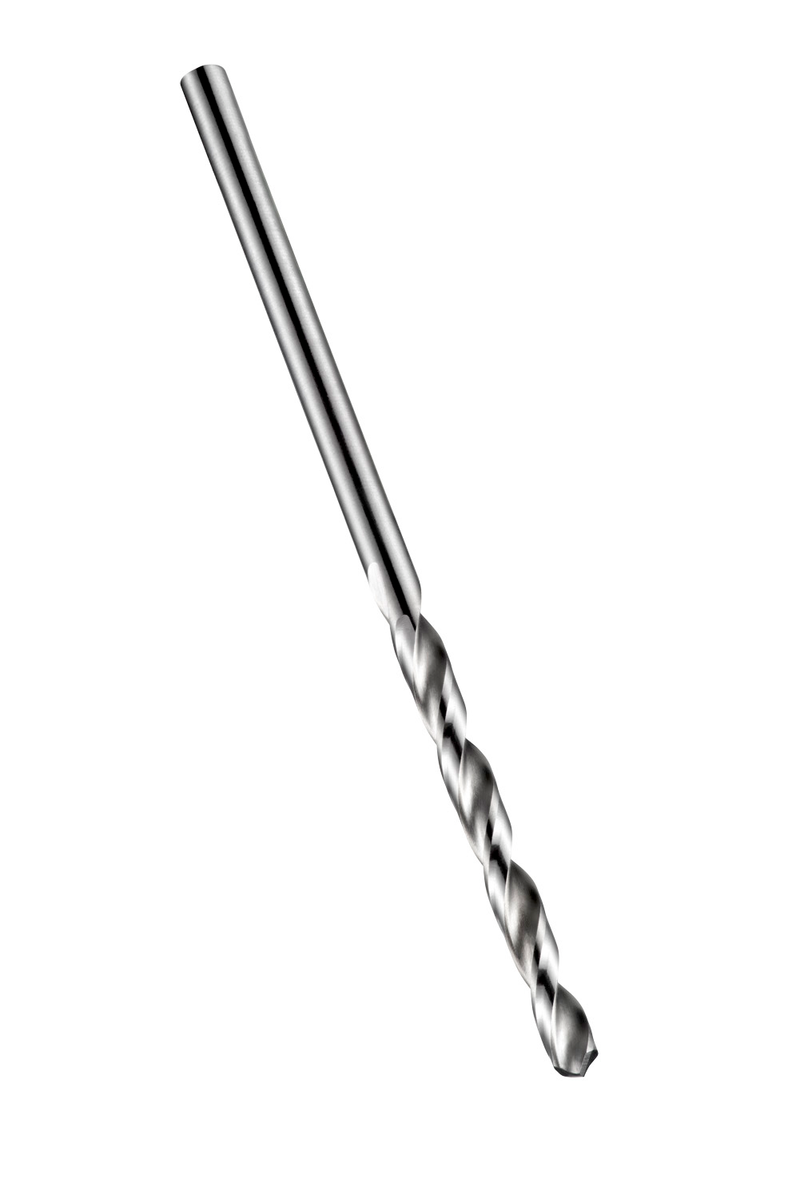

Foret court avec queue cylindrique, diamètre 0,0430" (N57) avec une longueur totale de 1,3/4" et une longueur de coupe de 3/4" selon la norme ANSI avec une pointe conique de 118°, en acier rapide avec finition brillante pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A012N57
GradeLumineux
Product Number5966654
Product FamilyA012
Dimensions
Cutting Diameter — in (DC)0.043"
Cutting Diameter — mm (DC)1.09 mm
Overall Length — in (OAL)1.75"
Overall Length — mm (OAL)44.45 mm
Flute Length — in (LCF)0.75"
Flute Length — mm (LCF)19.05 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.043"
Connection Dia. — mm (DCON)1.09 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number574027
EAN7320760574027
File Type Download
A012N57 — 3D Model STP Download
A012N57 — Line Drawing PDF Download
