UGC DOR5966673
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.63 CAD - $4.63 CAD
$4.63 CAD
$4.63 CAD - $4.63 CAD
$4.63 CAD

Vendu en lots de : 10

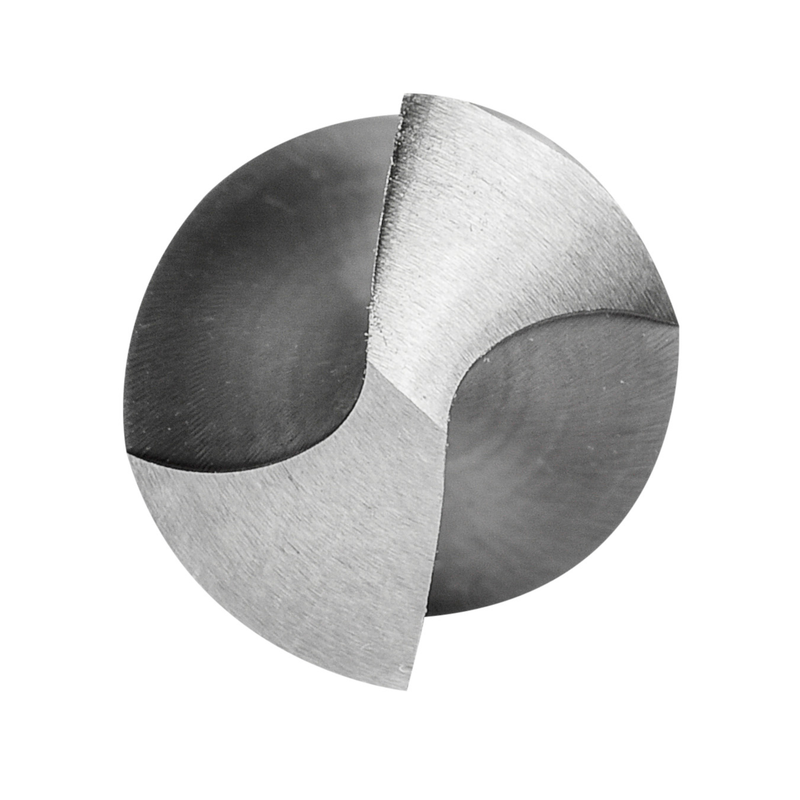

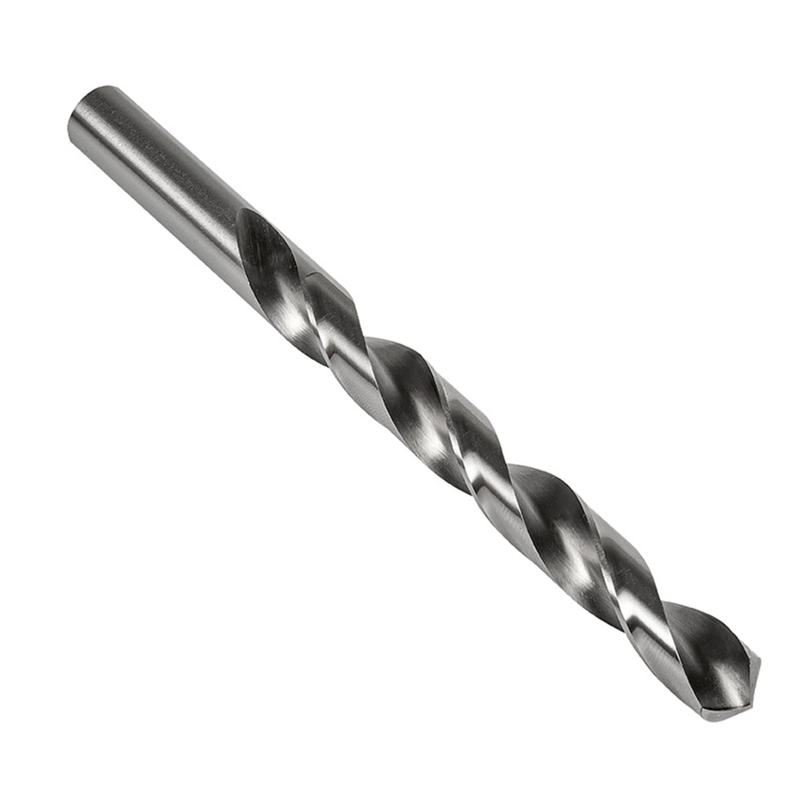

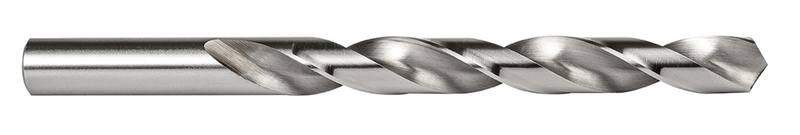

Foret court avec queue cylindrique, diamètre 0,0390" (N61) d'une longueur totale de 34 mm et d'une longueur de coupe de 12 mm selon la norme DIN 338 avec un angle de pointe de 118°, en HSS brillant pour un perçage à 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100N61
GradeLumineux
Product Number5966673
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.039"
Cutting Diameter — mm (DC)0.99 mm
Overall Length — in (OAL)1.3386"
Overall Length — mm (OAL)34.0 mm
Flute Length — in (LCF)0.4724"
Flute Length — mm (LCF)12.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.039"
Connection Dia. — mm (DCON)0.99 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number29275
EAN7320760029275
File Type Download
A100N61 — 3D Model STP Download
A100N61 — Line Drawing PDF Download
