UGC DOR5966678
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.76 CAD - $4.76 CAD
$4.76 CAD
$4.76 CAD - $4.76 CAD
$4.76 CAD

Vendu en lots de : 10

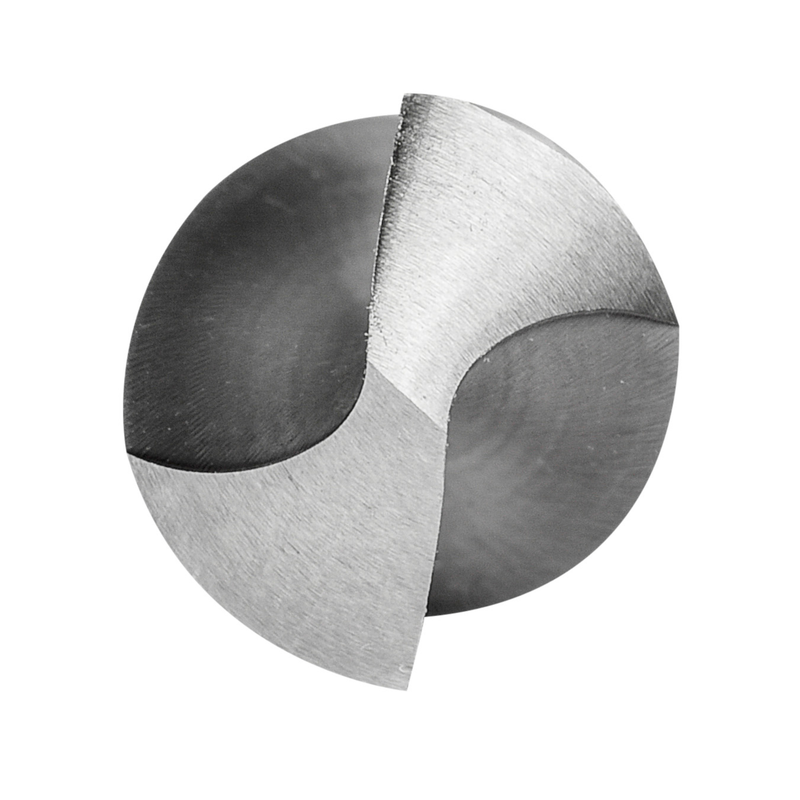

Foret court (jobber length) à queue cylindrique, diamètre 0,0380" (N62) avec une longueur totale de 34mm et une longueur de coupe de 12mm selon la norme DIN 338 avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100N62
GradeLumineux
Product Number5966678
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.038"
Cutting Diameter — mm (DC)0.97 mm
Overall Length — in (OAL)1.3386"
Overall Length — mm (OAL)34.0 mm
Flute Length — in (LCF)0.4724"
Flute Length — mm (LCF)12.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0382"
Connection Dia. — mm (DCON)0.97 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number29282
EAN7320760029282
File Type Download
A100N62 — 3D Model STP Download
A100N62 — Line Drawing PDF Download
