A0125/64
A0125/64
A0125/64
A0125/64

A0125/64

UGC DOR5966684
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.79 CAD - $1.79 CAD
$1.79 CAD
$1.79 CAD - $1.79 CAD
$1.79 CAD

Vendu en lots de : 10

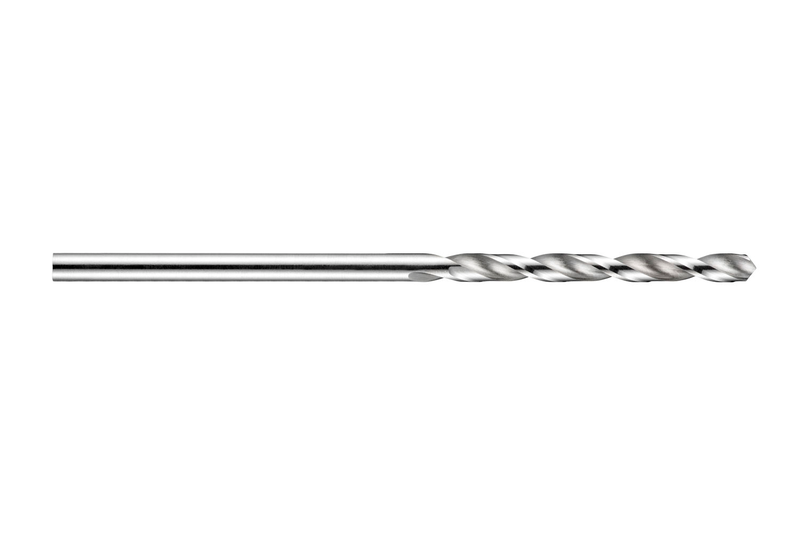

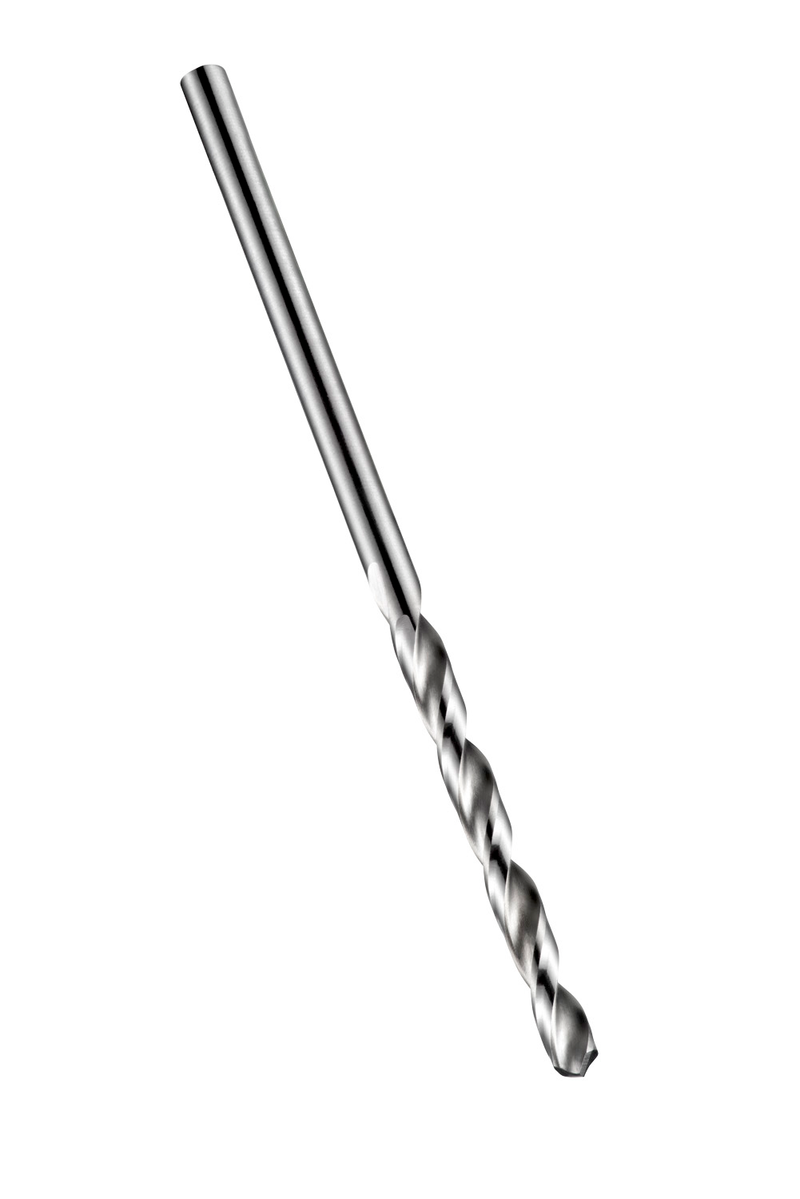

Foret de longueur Jobber à queue droite, diamètre 0,0781" (5/64) avec une longueur totale de 2" et une longueur de goujure de 1" selon la norme ANSI avec une pointe conique de 118°, HSS avec finition brillante pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0125/64
GradeLumineux
Product Number5966684
Product FamilyA012
Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Cutting Diameter — Fractional5/64
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Flute Length — in (LCF)1.0"
Flute Length — mm (LCF)25.4 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0781"
Connection Dia. — mm (DCON)1.98 mm

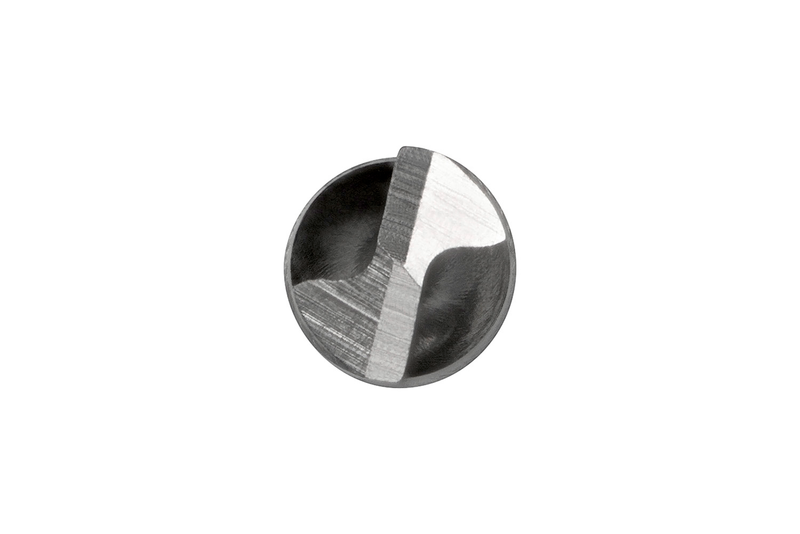

Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number578643
EAN7320760578643
File Type Download
A0125/64 — 3D Model STP Download
A0125/64 — Line Drawing PDF Download
