A012N65
A012N65
A012N65
A012N65

A012N65

UGC DOR5966697
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.10 CAD - $2.10 CAD
$2.10 CAD
$2.10 CAD - $2.10 CAD
$2.10 CAD

Vendu en lots de : 10

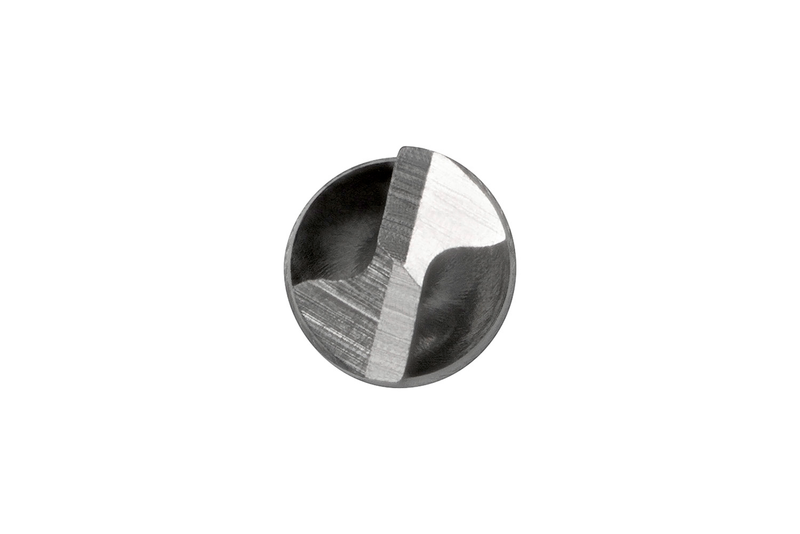

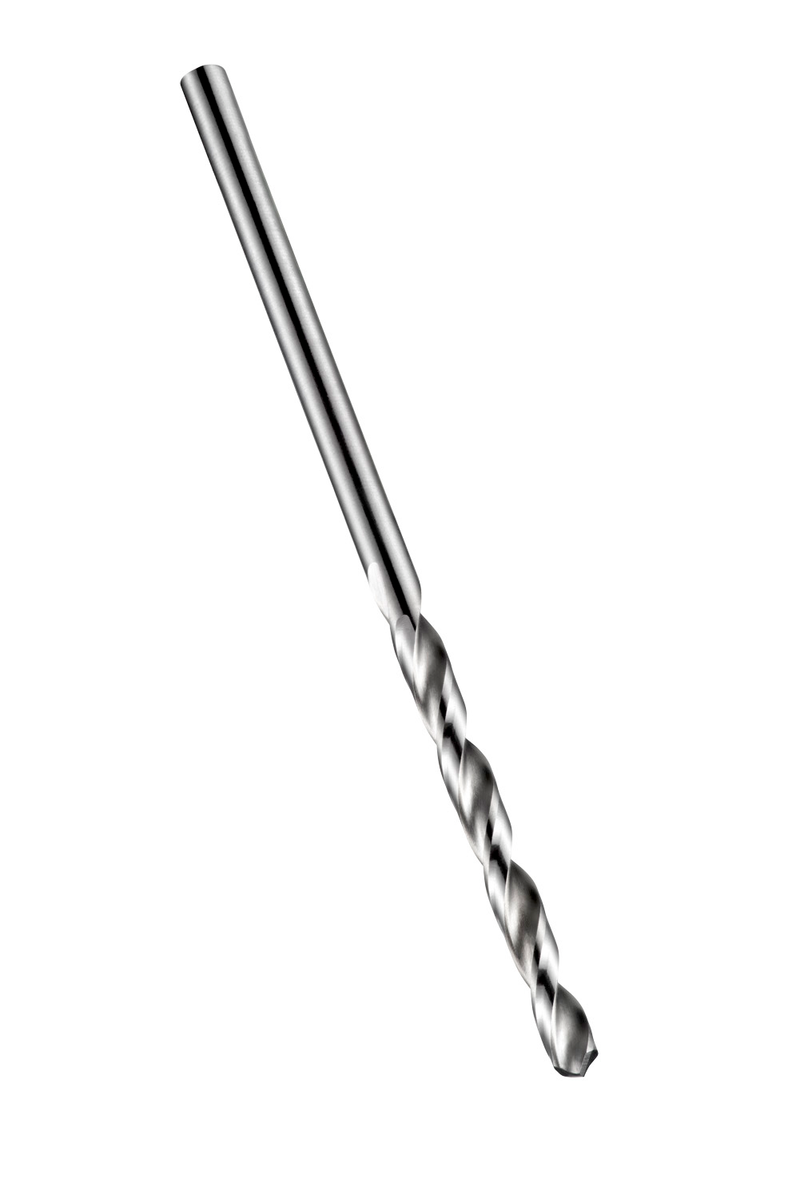

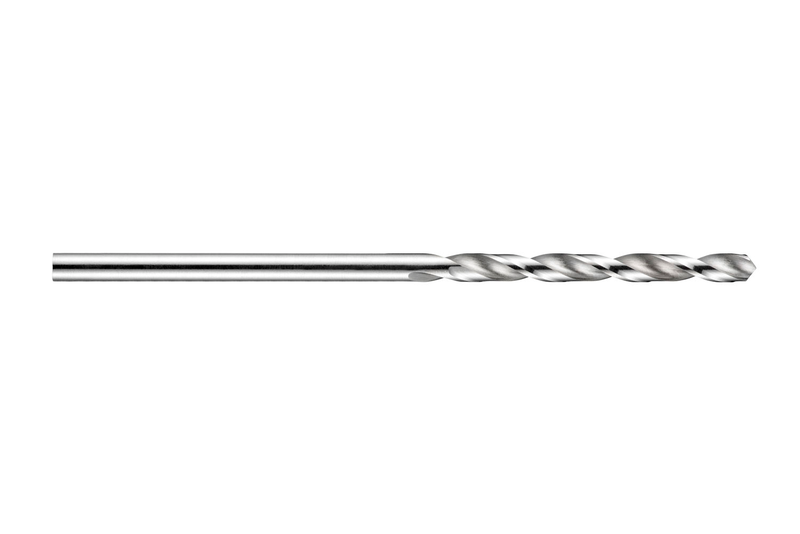

Foret série courte à queue cylindrique, diamètre 0.0350" (N65) avec une longueur totale de 1.1/2" et une longueur de coupe de 5/8" selon la norme ANSI avec une pointe conique de 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A012N65
GradeLumineux
Product Number5966697
Product FamilyA012
Dimensions
Cutting Diameter — in (DC)0.035"
Cutting Diameter — mm (DC)0.89 mm
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Flute Length — in (LCF)0.625"
Flute Length — mm (LCF)15.88 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.035"
Connection Dia. — mm (DCON)0.89 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number574102
EAN7320760574102
File Type Download
A012N65 — 3D Model STP Download
A012N65 — Line Drawing PDF Download
