A012N69
A012N69
A012N69
A012N69

A012N69

UGC DOR5966716
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.30 CAD - $2.30 CAD
$2.30 CAD
$2.30 CAD - $2.30 CAD
$2.30 CAD

Vendu en lots de : 10

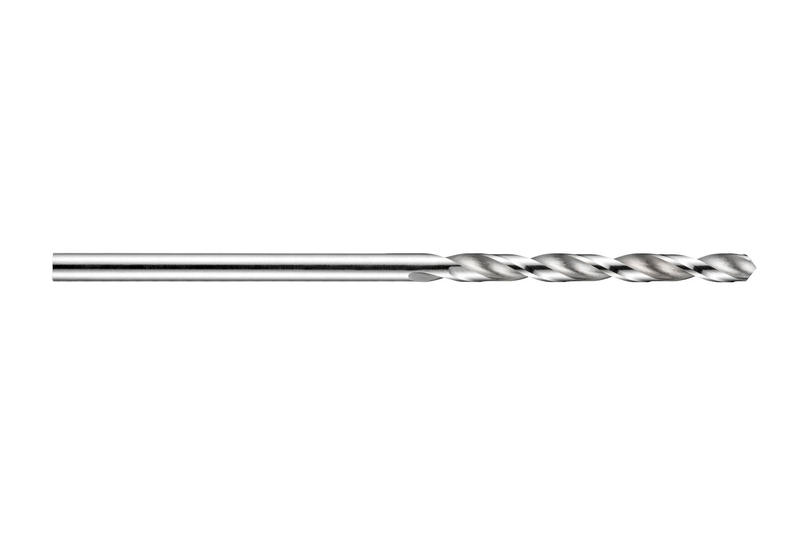

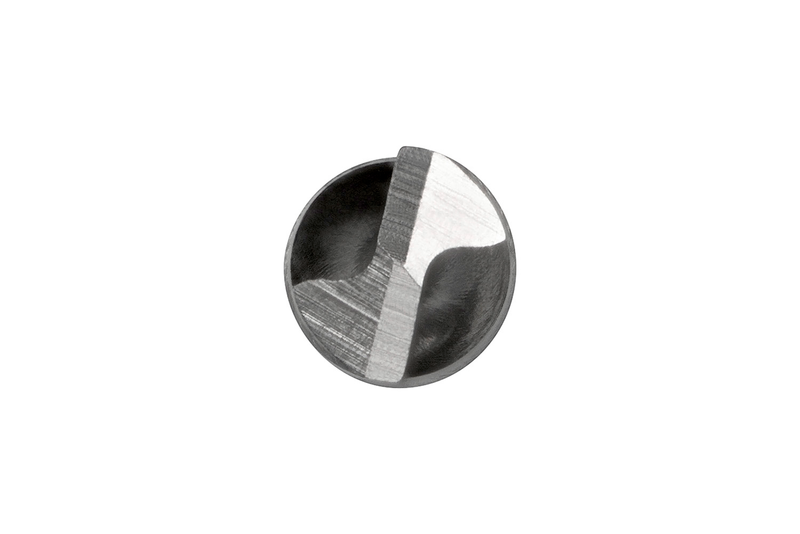

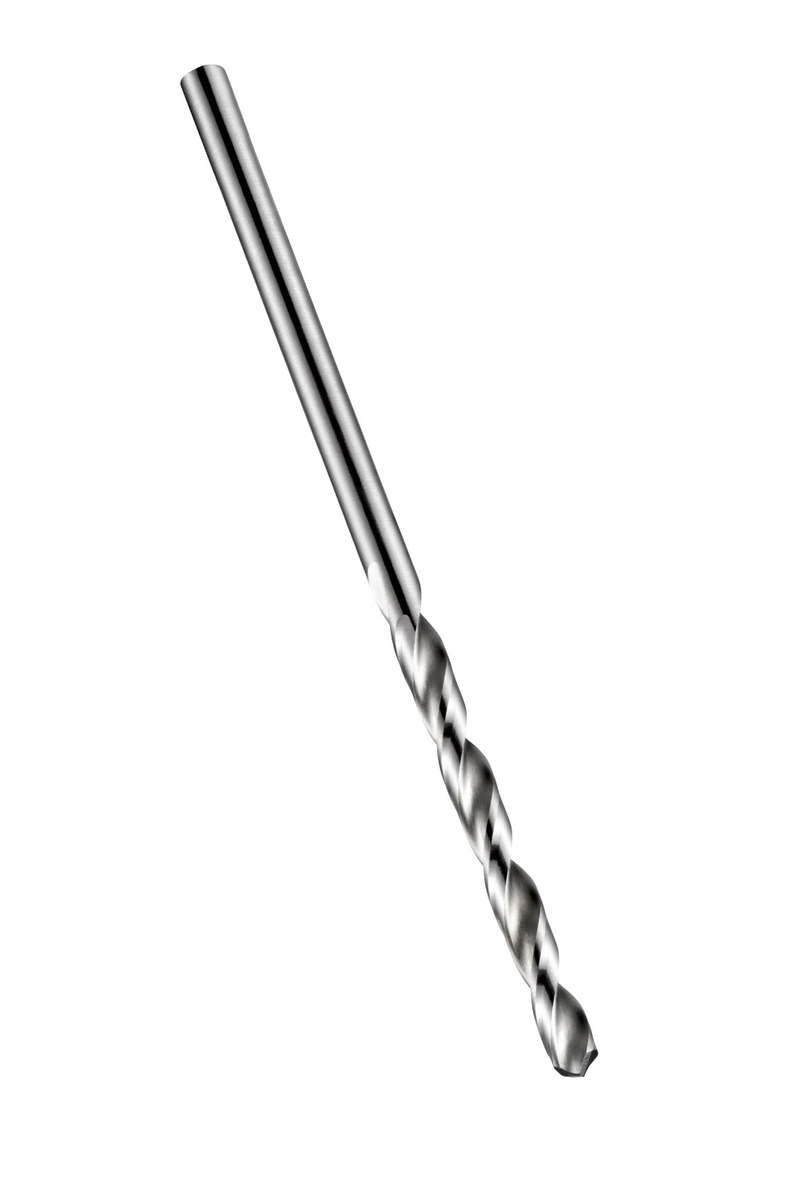

Forets de longueur Jobber à queue cylindrique, diamètre 0,0292" (N69) avec une longueur totale de 1,3/8" et une longueur de coupe de 1/2" selon la norme ANSI avec une pointe conique de 118°, HSS avec finition brillante pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A012N69
GradeLumineux
Product Number5966716
Product FamilyA012
Dimensions
Cutting Diameter — in (DC)0.0292"
Cutting Diameter — mm (DC)0.74 mm
Overall Length — in (OAL)1.375"
Overall Length — mm (OAL)34.93 mm
Flute Length — in (LCF)0.5"
Flute Length — mm (LCF)12.7 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0292"
Connection Dia. — mm (DCON)0.74 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number574140
EAN7320760574140
File Type Download
A012N69 — 3D Model STP Download
A012N69 — Line Drawing PDF Download
