UGC DOR5966722
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.79 CAD - $5.79 CAD
$5.79 CAD
$5.79 CAD - $5.79 CAD
$5.79 CAD

Vendu en lots de : 10

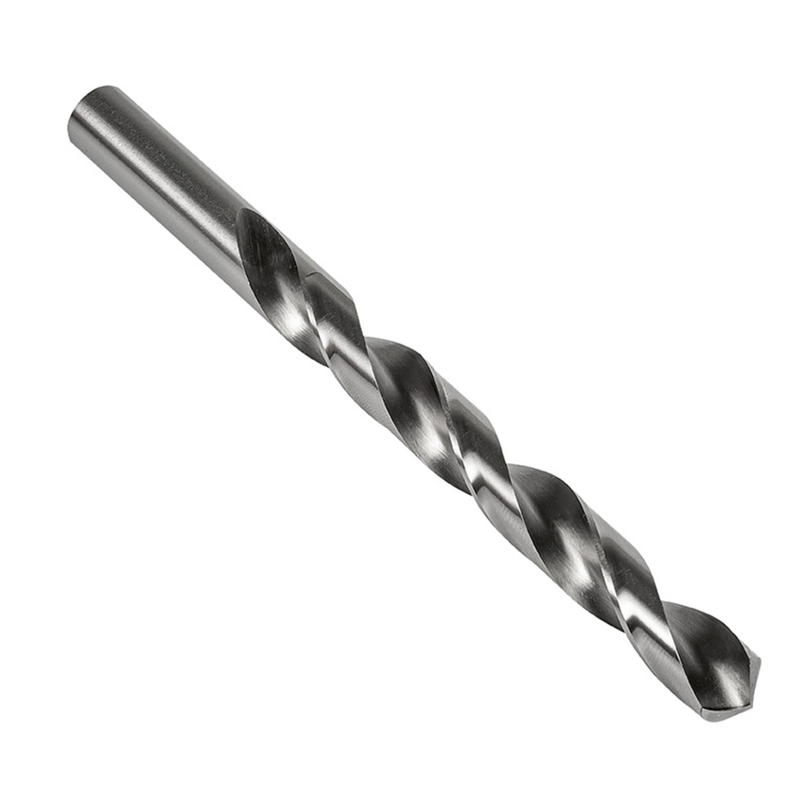

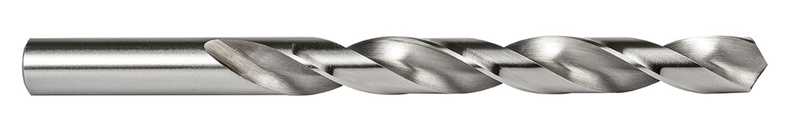

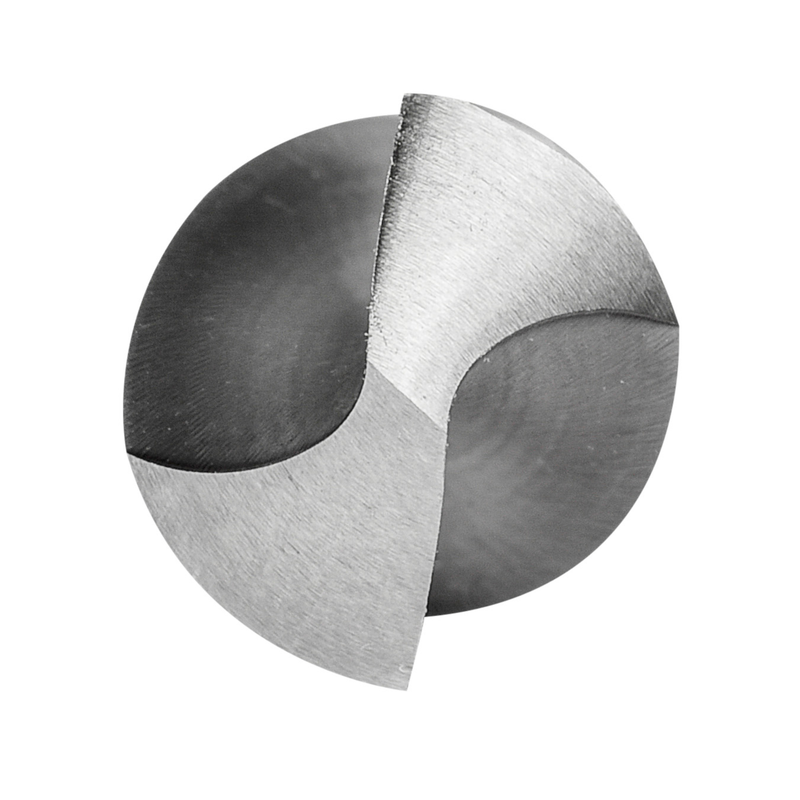

Foret hélicoïdal à queue cylindrique, diamètre 0,0280" (N70) avec une longueur totale de 28 mm et une longueur de coupe de 9 mm selon la norme DIN 338, avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100N70
GradeLumineux
Product Number5966722
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.028"
Cutting Diameter — mm (DC)0.71 mm
Overall Length — in (OAL)1.1024"
Overall Length — mm (OAL)28.0 mm
Flute Length — in (LCF)0.3543"
Flute Length — mm (LCF)9.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.028"
Connection Dia. — mm (DCON)0.71 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number29374
EAN7320760029374
File Type Download
A100N70 — 3D Model STP Download
A100N70 — Line Drawing PDF Download
