A022.7
A022.7
A022.7
A022.7

A022.7

UGC DOR5966736
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.96 CAD - $13.96 CAD
$13.96 CAD
$13.96 CAD - $13.96 CAD
$13.96 CAD

Vendu en lots de : 10

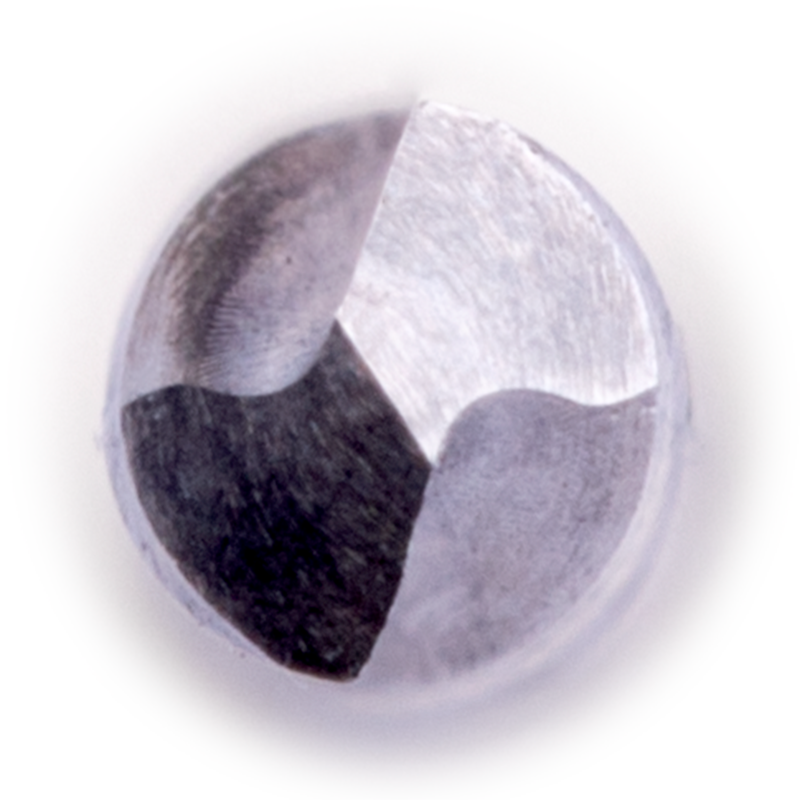

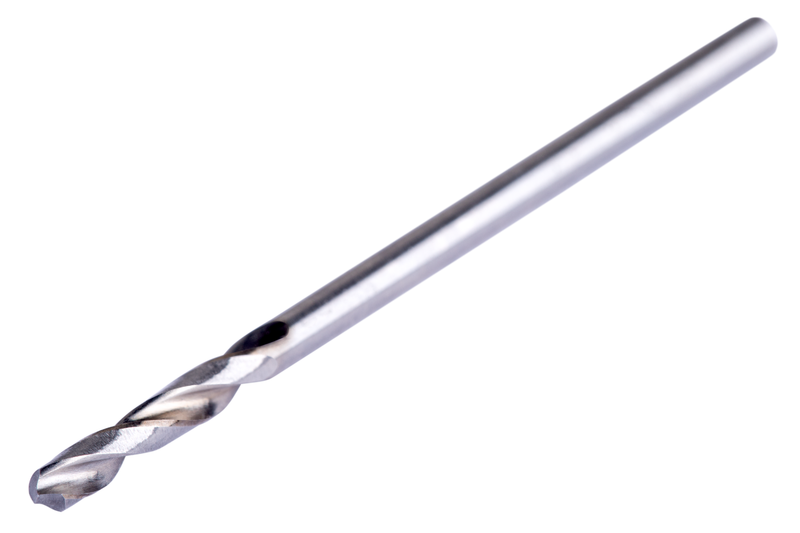

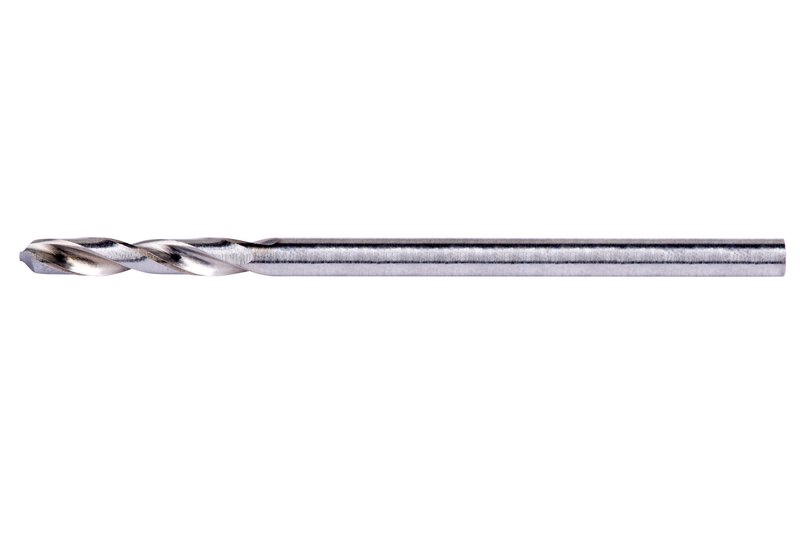

Foret court à queue cylindrique, diamètre 0,7 mm, longueur totale 23 mm et longueur de coupe 4,5 mm selon la norme DIN/ANSI avec pointe conique à 135°, en acier rapide avec finition brillante pour perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A022.7
GradeLumineux
Product Number5966736
Product FamilyA022
Dimensions
Cutting Diameter — in (DC)0.0276"
Cutting Diameter — mm (DC)0.7 mm
Overall Length — in (OAL)0.9055"
Overall Length — mm (OAL)23.0 mm
Flute Length — in (LCF)0.1772"
Flute Length — mm (LCF)4.5 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0276"
Connection Dia. — mm (DCON)0.7 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number600405
EAN7320760600405
File Type Download
A022.7 — 3D Model STP Download
A022.7 — Line Drawing PDF Download
