UGC DOR5966745
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.54 CAD - $6.54 CAD
$6.54 CAD
$6.54 CAD - $6.54 CAD
$6.54 CAD

Vendu en lots de : 10

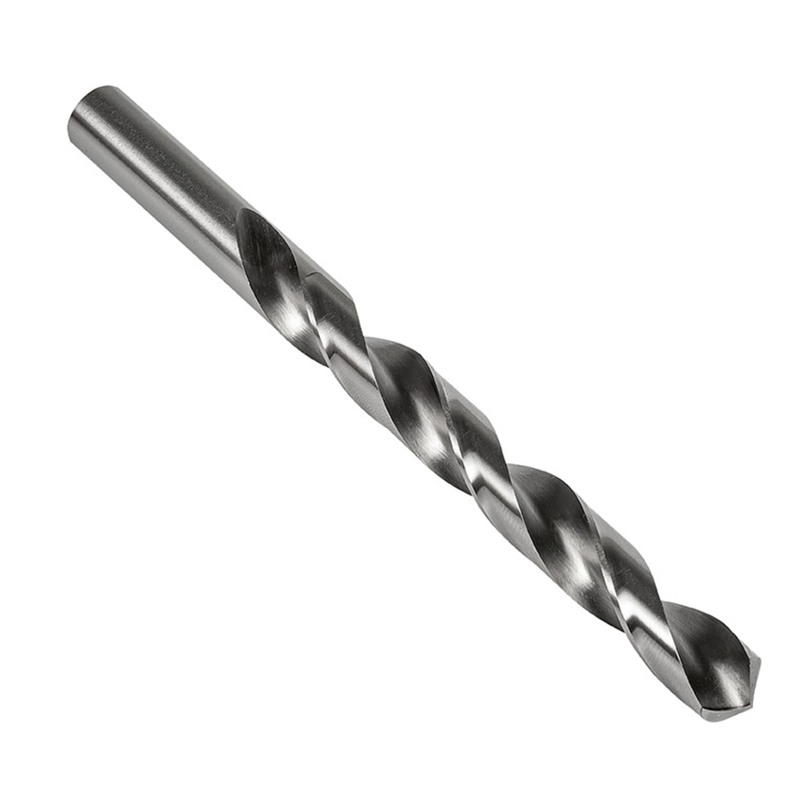

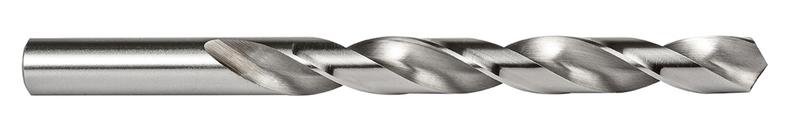

Foret de longueur jobber à queue cylindrique, diamètre de 0,0210" (N75) avec une longueur totale de 22mm et une longueur de coupe de 6mm selon la norme DIN 338 avec un angle de pointe de 118°, en HSS avec finition brillante pour un perçage à 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100N75
GradeLumineux
Product Number5966745
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.021"
Cutting Diameter — mm (DC)0.53 mm
Overall Length — in (OAL)0.8661"
Overall Length — mm (OAL)22.0 mm
Flute Length — in (LCF)0.2362"
Flute Length — mm (LCF)6.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0209"
Connection Dia. — mm (DCON)0.53 mm

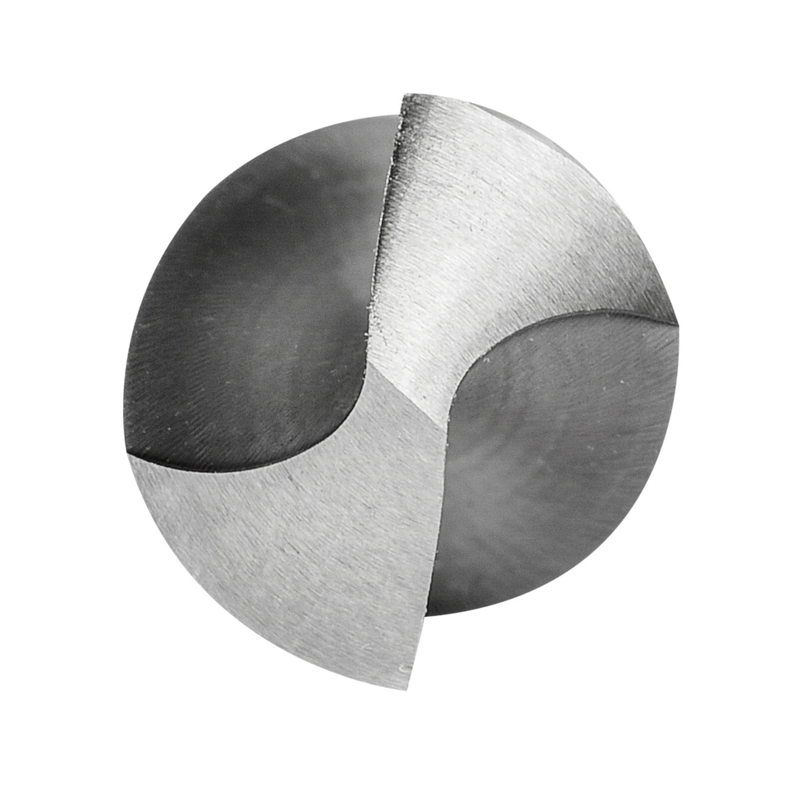

Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number29428
EAN7320760029428
File Type Download
A100N75 — 3D Model STP Download
A100N75 — Line Drawing PDF Download
