A012N76
A012N76
A012N76
A012N76

A012N76

UGC DOR5966749
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.73 CAD - $2.73 CAD
$2.73 CAD
$2.73 CAD - $2.73 CAD
$2.73 CAD

Vendu en lots de : 10

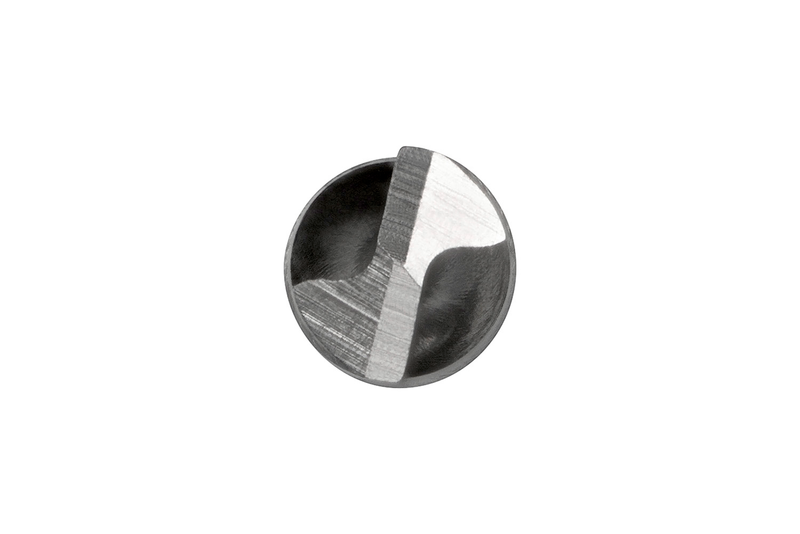

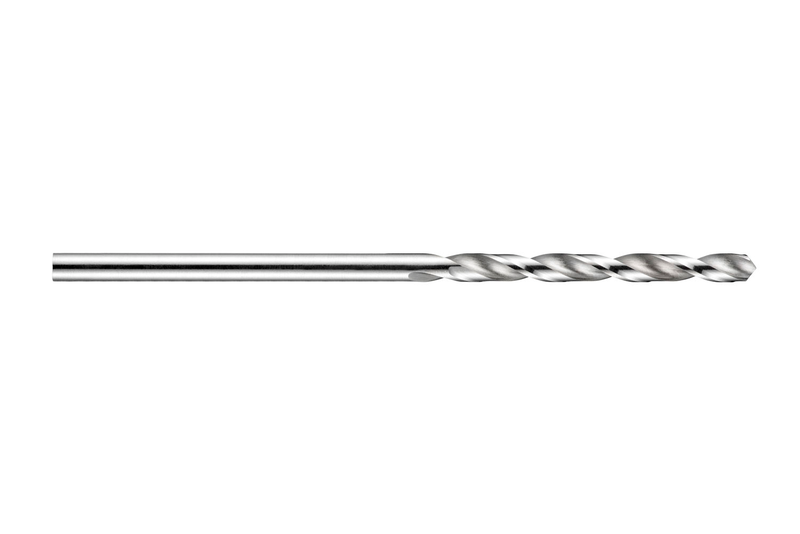

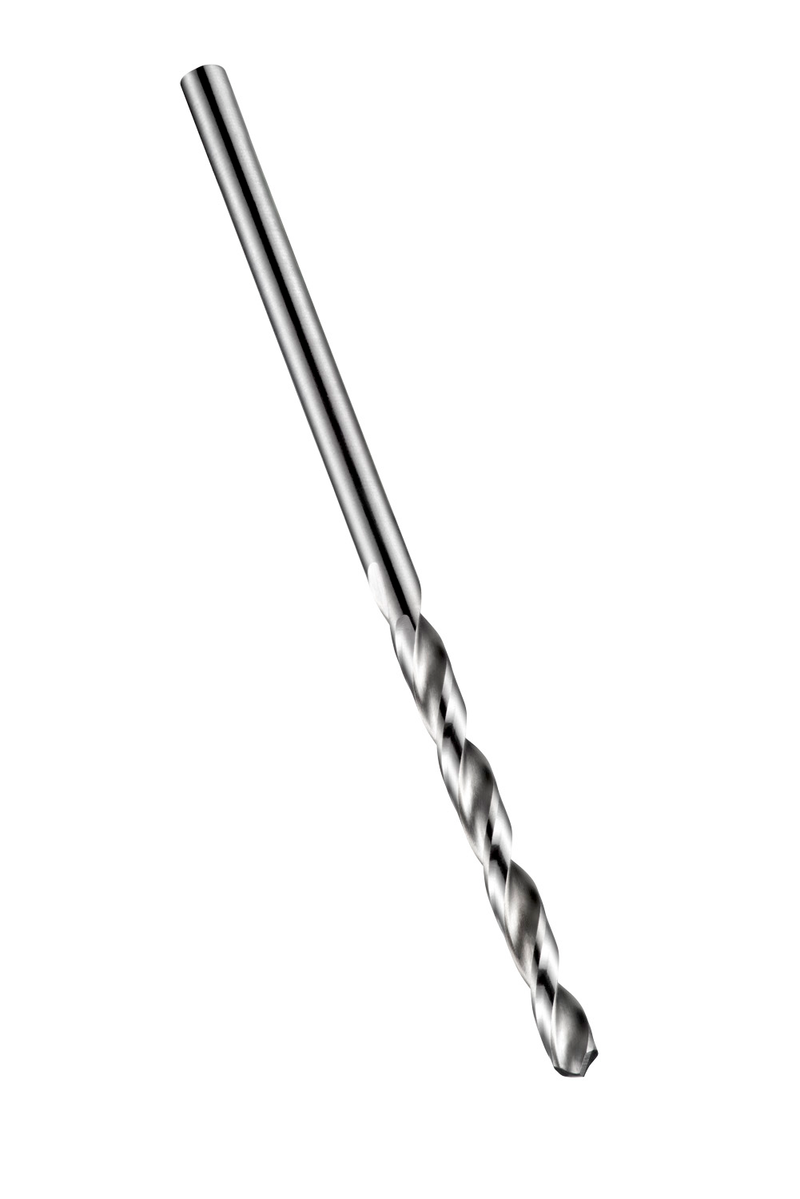

Foret court avec queue cylindrique, diamètre 0,0200" (N76), longueur totale 7/8" et longueur de goujure 3/16" selon la norme ANSI avec une pointe conique de 118°, HSS avec finition brillante pour le perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A012N76
GradeLumineux
Product Number5966749
Product FamilyA012
Dimensions
Cutting Diameter — in (DC)0.02"
Cutting Diameter — mm (DC)0.51 mm
Overall Length — in (OAL)0.875"
Overall Length — mm (OAL)22.23 mm
Flute Length — in (LCF)0.1875"
Flute Length — mm (LCF)4.76 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.02"
Connection Dia. — mm (DCON)0.51 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number574218
EAN7320760574218
File Type Download
A012N76 — 3D Model STP Download
A012N76 — Line Drawing PDF Download
