A100N79
A100N79
A100N79
A100N79

A100N79

UGC DOR5966761
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.54 CAD - $7.54 CAD
$7.54 CAD
$7.54 CAD - $7.54 CAD
$7.54 CAD

Vendu en lots de : 10

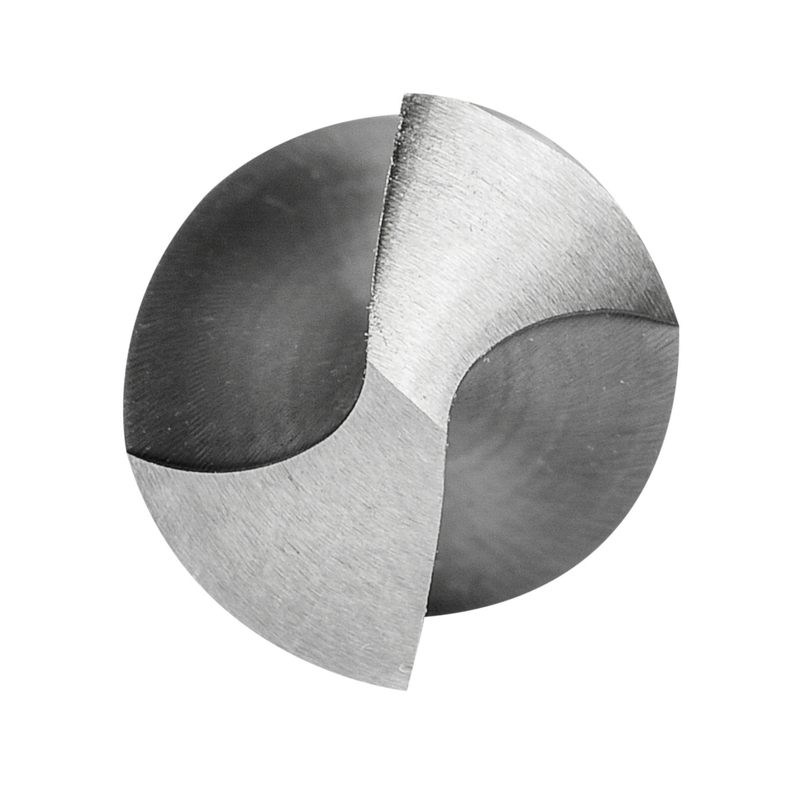

Foret court avec queue cylindrique, diamètre 0,0145" (N79) avec une longueur totale de 19mm et une longueur de coupe de 4mm selon la norme DIN 338 avec un angle de pointe de 118°, en HSS avec finition brillante pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100N79
GradeLumineux
Product Number5966761
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0145"
Cutting Diameter — mm (DC)0.37 mm
Overall Length — in (OAL)0.748"
Overall Length — mm (OAL)19.0 mm
Flute Length — in (LCF)0.1575"
Flute Length — mm (LCF)4.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0146"
Connection Dia. — mm (DCON)0.37 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number29466
EAN7320760029466
File Type Download
A100N79 — 3D Model STP Download
A100N79 — Line Drawing PDF Download
