UGC DOR5966775
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.51 CAD - $4.51 CAD
$4.51 CAD
$4.51 CAD - $4.51 CAD
$4.51 CAD

Vendu en lots de : 10

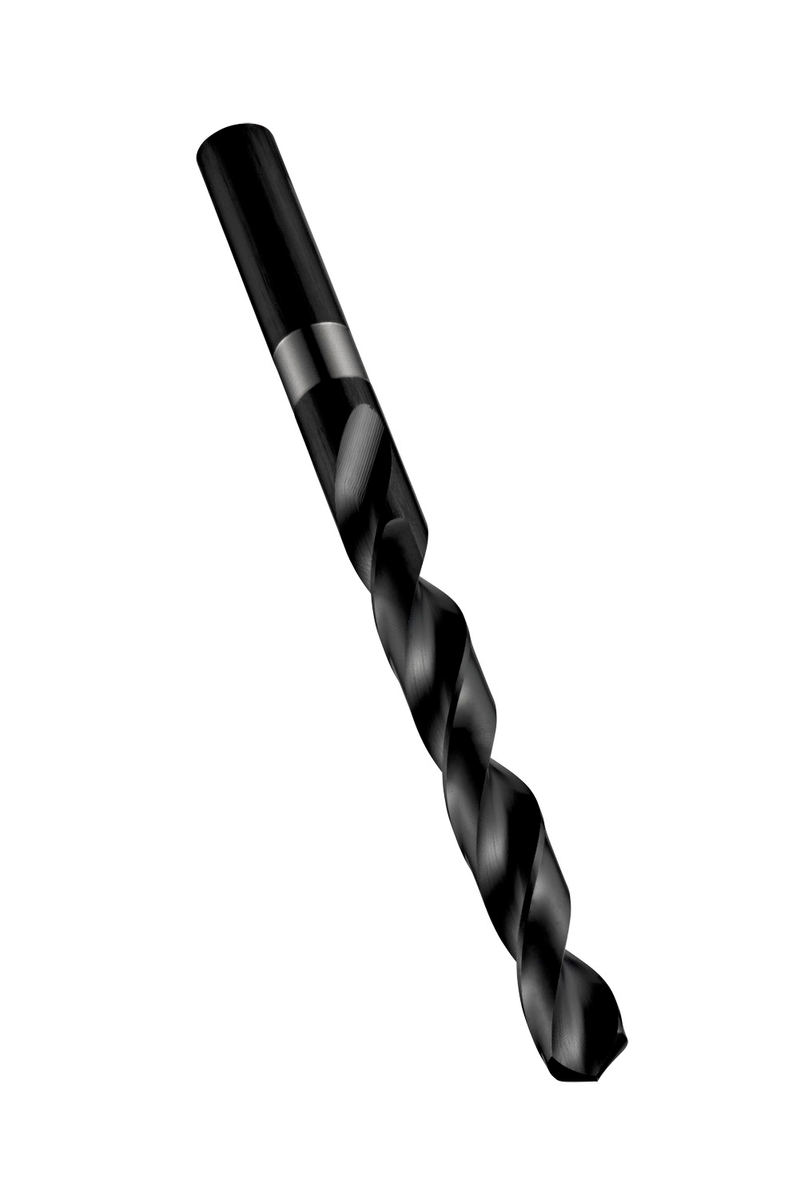

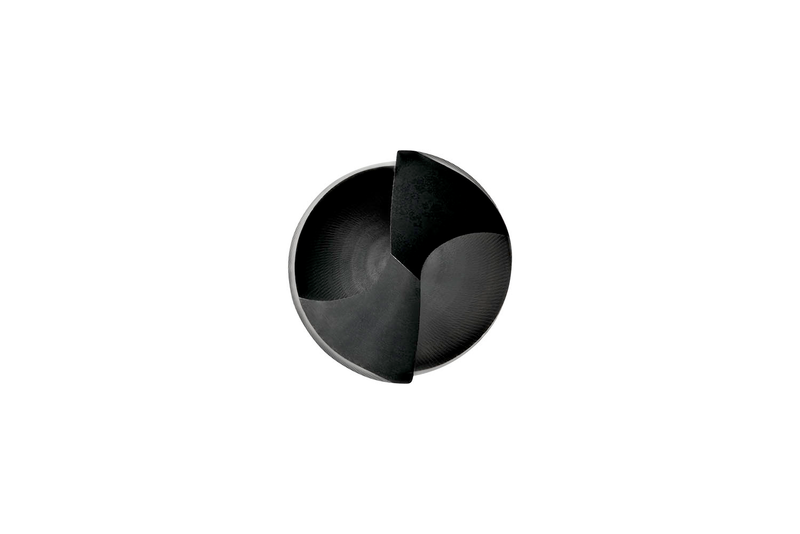

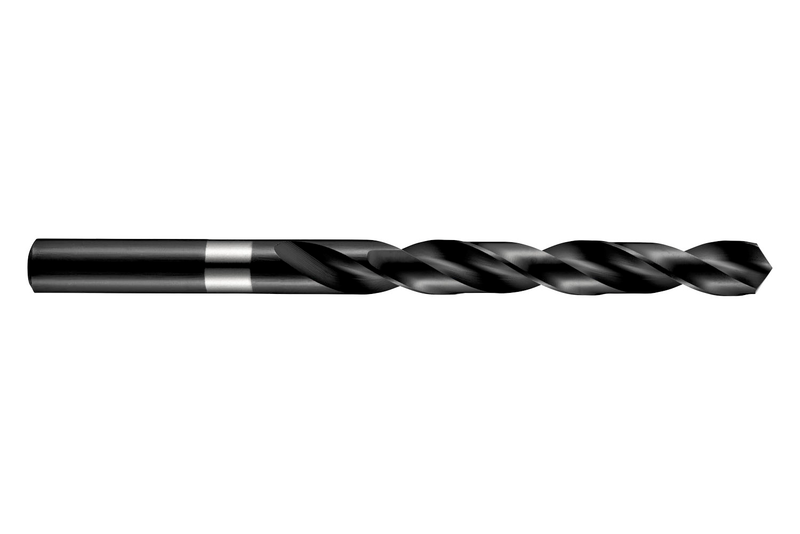

Foret jobber à queue droite, diamètre 6,2 mm, longueur totale de 101 mm et longueur de goujure de 63 mm selon la norme DIN 338, angle de pointe de 118°, HSS avec finition trempe vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1006.2
GradeTrempé à la vapeur
Product Number5966775
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.2441"
Cutting Diameter — mm (DC)6.2 mm
Overall Length — in (OAL)3.9764"
Overall Length — mm (OAL)101.0 mm
Flute Length — in (LCF)2.4803"
Flute Length — mm (LCF)63.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.2441"
Connection Dia. — mm (DCON)6.2 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number2148
EAN7320760002148
File Type Download
A1006.2 — 3D Model STP Download
A1006.2 — Line Drawing PDF Download
