A012N53
A012N53
A012N53
A012N53

A012N53

UGC DOR5966822
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.06 CAD - $2.06 CAD
$2.06 CAD
$2.06 CAD - $2.06 CAD
$2.06 CAD

Vendu en lots de : 10

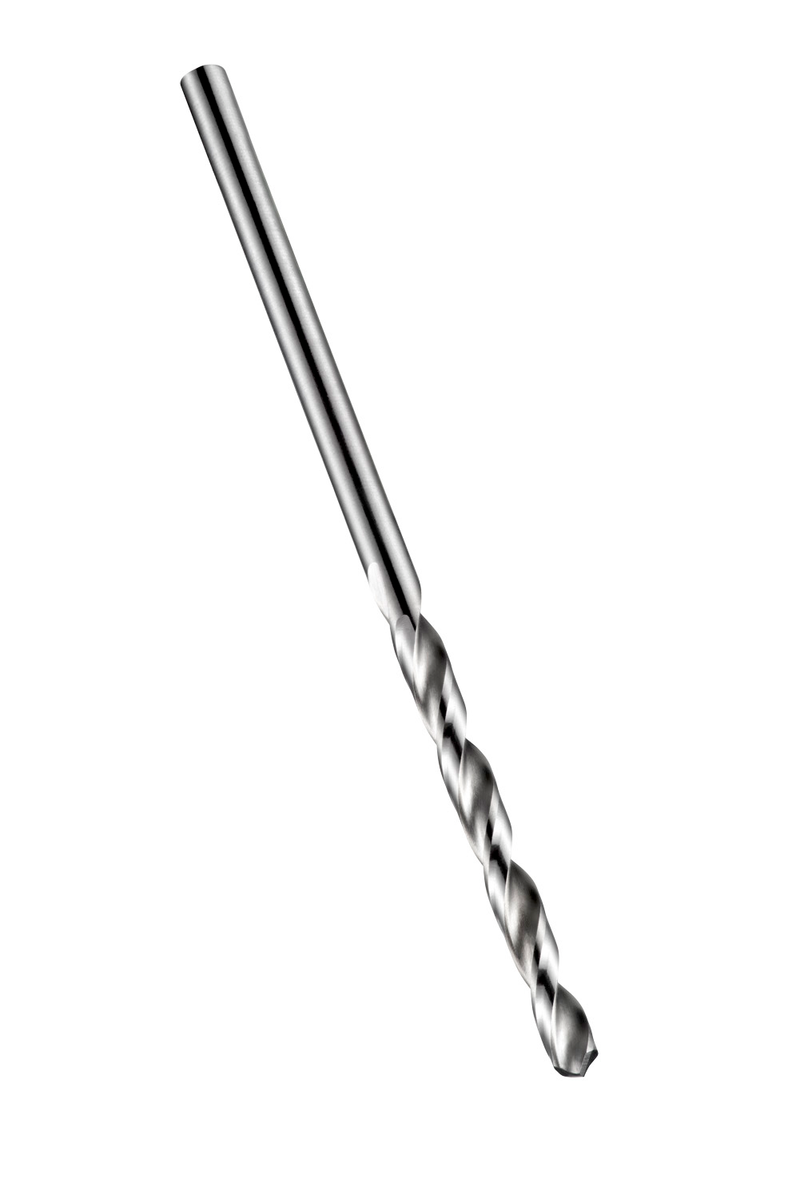

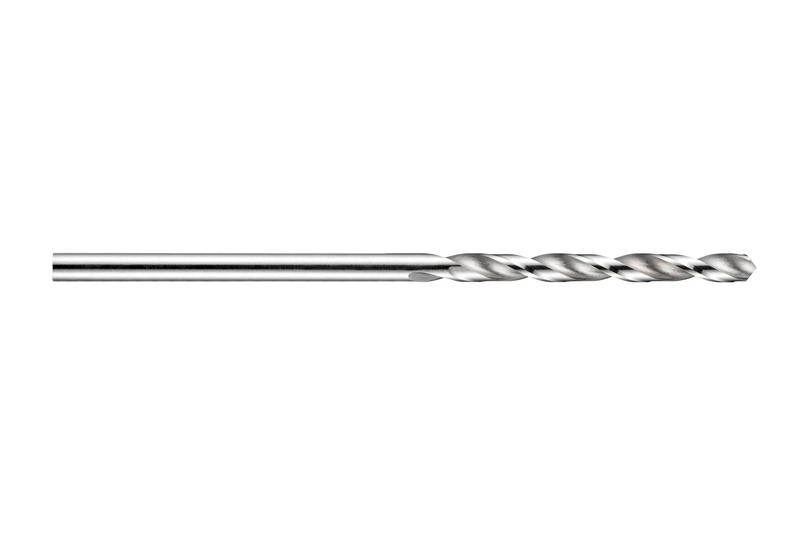

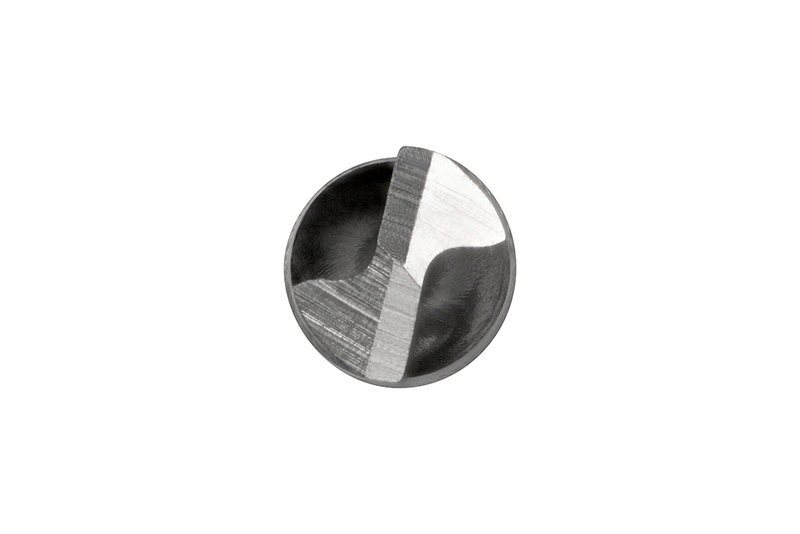

Foret de longueur jobber à queue cylindrique, diamètre 0,0595" (N53) avec une longueur totale de 1,7/8" et une longueur de coupe de 7/8" selon la norme ANSI avec une pointe conique de 118°, en HSS avec finition brillante pour le perçage de 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A012N53
GradeLumineux
Product Number5966822
Product FamilyA012
Dimensions
Cutting Diameter — in (DC)0.0595"
Cutting Diameter — mm (DC)1.51 mm
Overall Length — in (OAL)1.875"
Overall Length — mm (OAL)47.63 mm
Flute Length — in (LCF)0.875"
Flute Length — mm (LCF)22.23 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0595"
Connection Dia. — mm (DCON)1.51 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number573983
EAN7320760573983
File Type Download
A012N53 — 3D Model STP Download
A012N53 — Line Drawing PDF Download
