A0225/64
A0225/64
A0225/64
A0225/64

A0225/64

UGC DOR5966840
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.74 CAD - $2.74 CAD
$2.74 CAD
$2.74 CAD - $2.74 CAD
$2.74 CAD

Vendu en lots de : 10

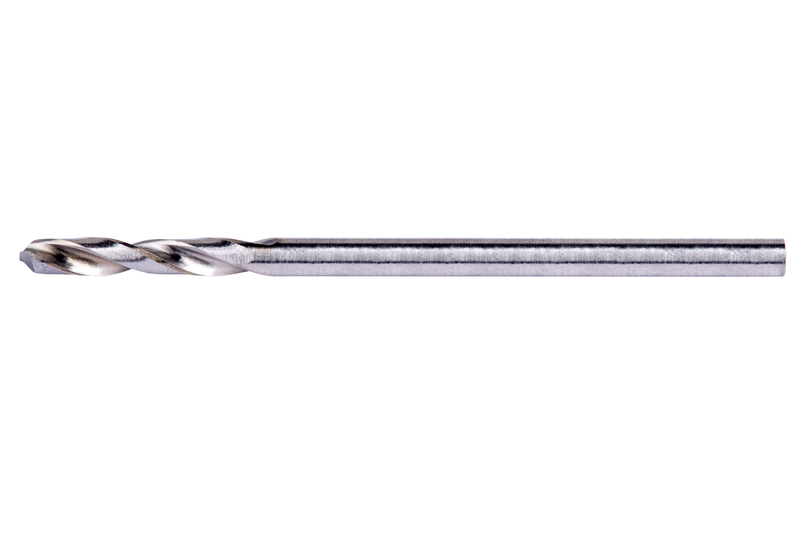

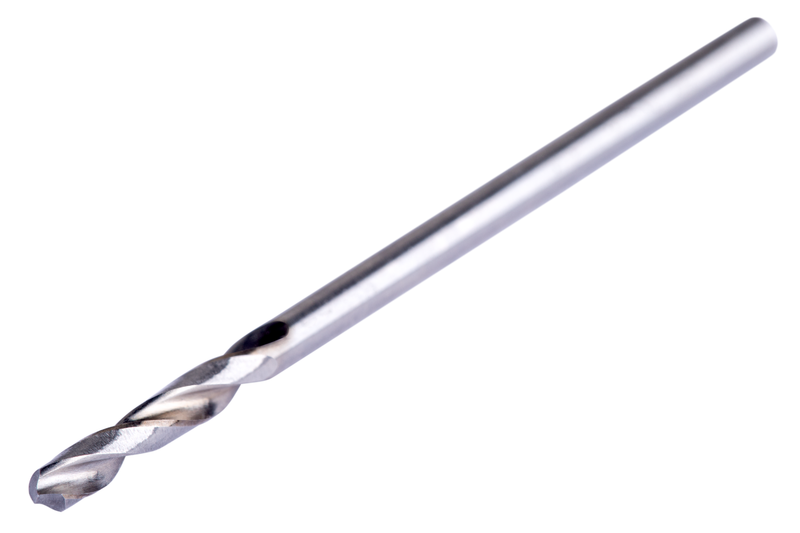

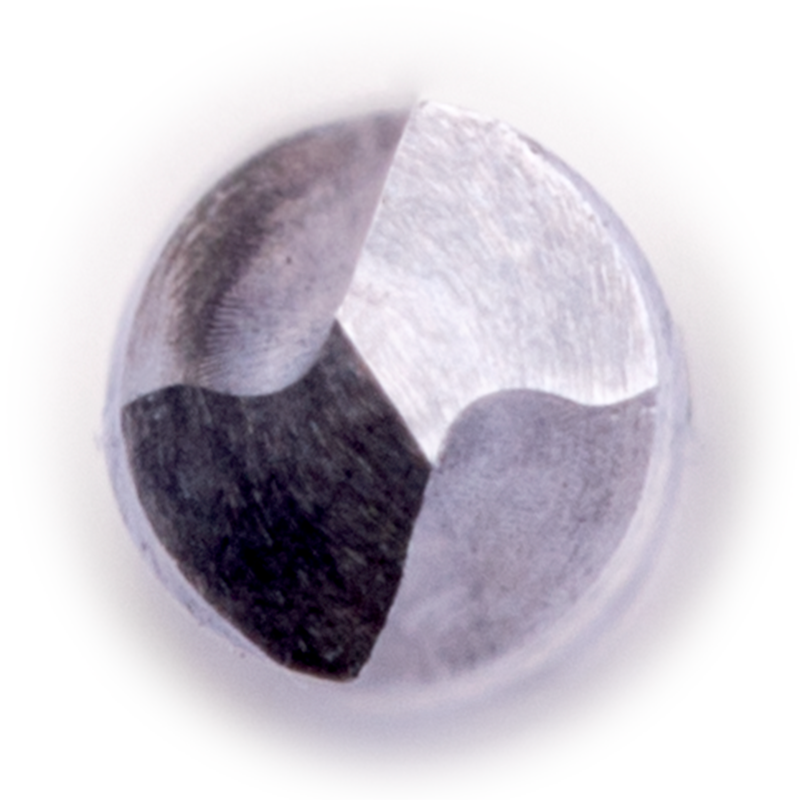

Foret court à queue cylindrique, diamètre 0,0781" (5/64) d'une longueur totale de 43mm et d'une longueur de goujure de 17mm selon la norme DIN/ANSI avec pointe conique à 135°, HSS finition brillante pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0225/64
GradeLumineux
Product Number5966840
Product FamilyA022
Dimensions
Cutting Diameter — in (DC)0.0781"
Cutting Diameter — mm (DC)1.98 mm
Cutting Diameter — Fractional5/64
Overall Length — in (OAL)1.6929"
Overall Length — mm (OAL)43.0 mm
Flute Length — in (LCF)0.6693"
Flute Length — mm (LCF)17.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.078"
Connection Dia. — mm (DCON)1.98 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number600566
EAN7320760600566
File Type Download
A0225/64 — 3D Model STP Download
A0225/64 — Line Drawing PDF Download
