A0021/2
A0021/2
A0021/2
A0021/2

A0021/2

UGC DOR5966858
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.19 CAD - $23.19 CAD
$23.19 CAD
$23.19 CAD - $23.19 CAD
$23.19 CAD

Vendu en lots de : 5

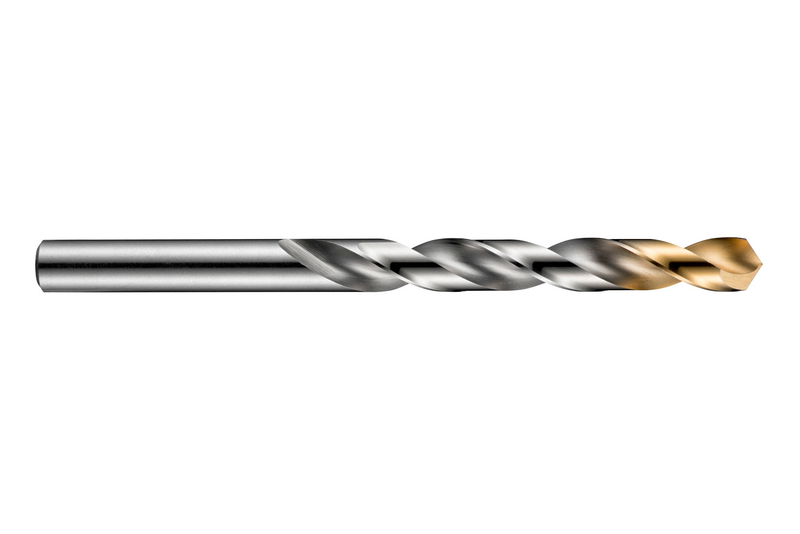

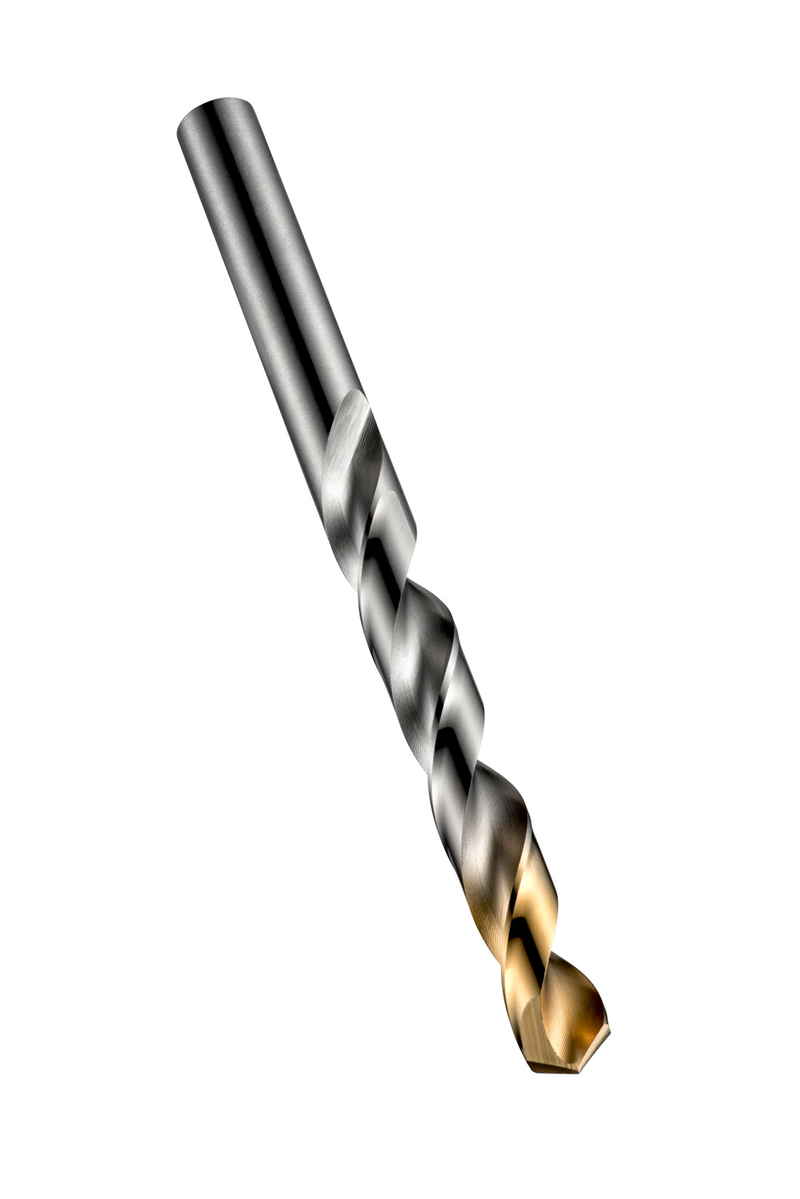

Foret série courte à queue cylindrique, diamètre 0,5000" (1/2) avec une longueur totale de 151 mm et une longueur de coupe de 101 mm selon la norme DIN 338 avec une pointe auto-centrante de 118° modifiée, en HSS avec revêtement TiN-tip pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0021/2
GradeClair/TiN
Product Number5966858
Product FamilyA002
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Flute Length — in (LCF)3.9764"
Flute Length — mm (LCF)101.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number351789
EAN7320760351789
File Type Download
A0021/2 — 3D Model STP Download
A0021/2 — Line Drawing PDF Download
