A0223.3
A0223.3
A0223.3
A0223.3

A0223.3

UGC DOR5967090
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.00 CAD - $4.00 CAD
$4.00 CAD
$4.00 CAD - $4.00 CAD
$4.00 CAD

Vendu en lots de : 10

Foret étagé à queue droite, diamètre 3,3 mm, longueur totale de 49 mm et longueur de coupe de 18 mm selon la norme DIN/ANSI avec pointe à 135° affûtage en croix, en HSS avec revêtement en TiN pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0223.3
GradeClair/TiN
Product Number5967090
Product FamilyA022

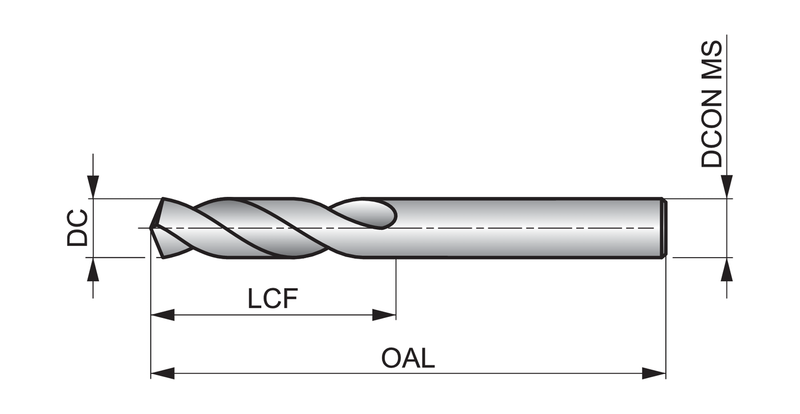

Dimensions
Cutting Diameter — in (DC)0.1299"
Cutting Diameter — mm (DC)3.3 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1299"
Connection Dia. — mm (DCON)3.3 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number589113
EAN7320760589113
File Type Download
A0223.3 — 3D Model STP Download
A0223.3 — Line Drawing PDF Download
