UGC DOR5967112
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.41 CAD - $3.41 CAD
$3.41 CAD
$3.41 CAD - $3.41 CAD
$3.41 CAD

Vendu en lots de : 10

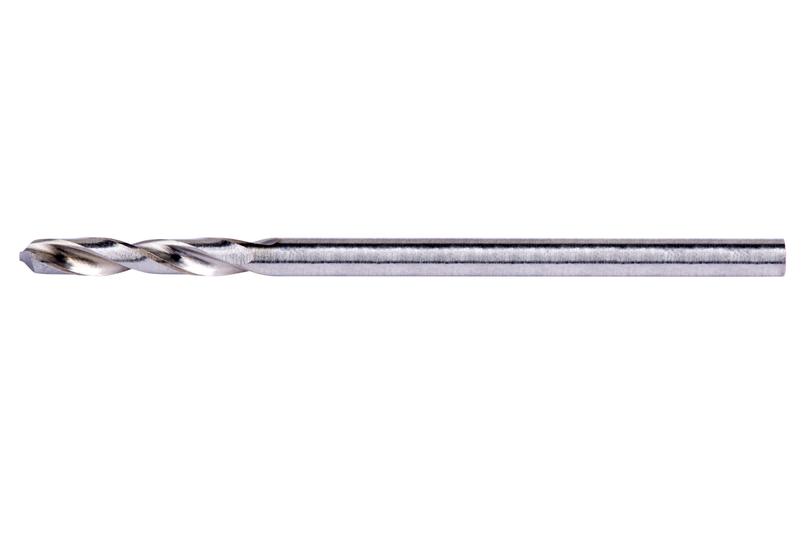

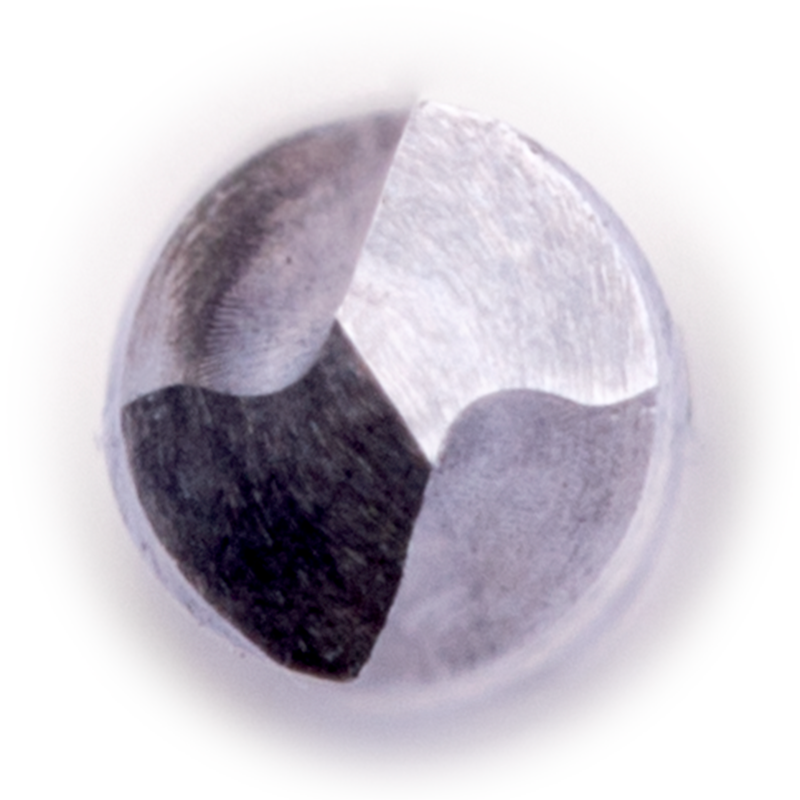

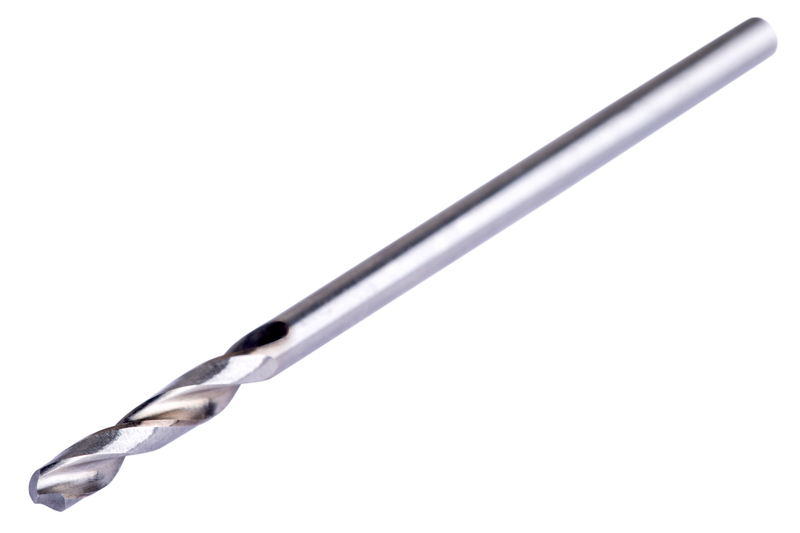

Foret court à queue cylindrique, diamètre 0,0469" (3/64) d'une longueur totale de 35mm et d'une longueur de coupe de 13mm selon la norme DIN/ANSI avec pointe conique à 135°, en HSS avec finition brillante pour le perçage de 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0223/64
GradeLumineux
Product Number5967112
Product FamilyA022
Dimensions
Cutting Diameter — in (DC)0.0469"
Cutting Diameter — mm (DC)1.19 mm
Cutting Diameter — Fractional3/64
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Flute Length — in (LCF)0.5118"
Flute Length — mm (LCF)13.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0469"
Connection Dia. — mm (DCON)1.19 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number600559
EAN7320760600559
File Type Download
A0223/64 — 3D Model STP Download
A0223/64 — Line Drawing PDF Download
