A0221.8
A0221.8
A0221.8
A0221.8

A0221.8

UGC DOR5967166
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.24 CAD - $4.24 CAD
$4.24 CAD
$4.24 CAD - $4.24 CAD
$4.24 CAD

Vendu en lots de : 10

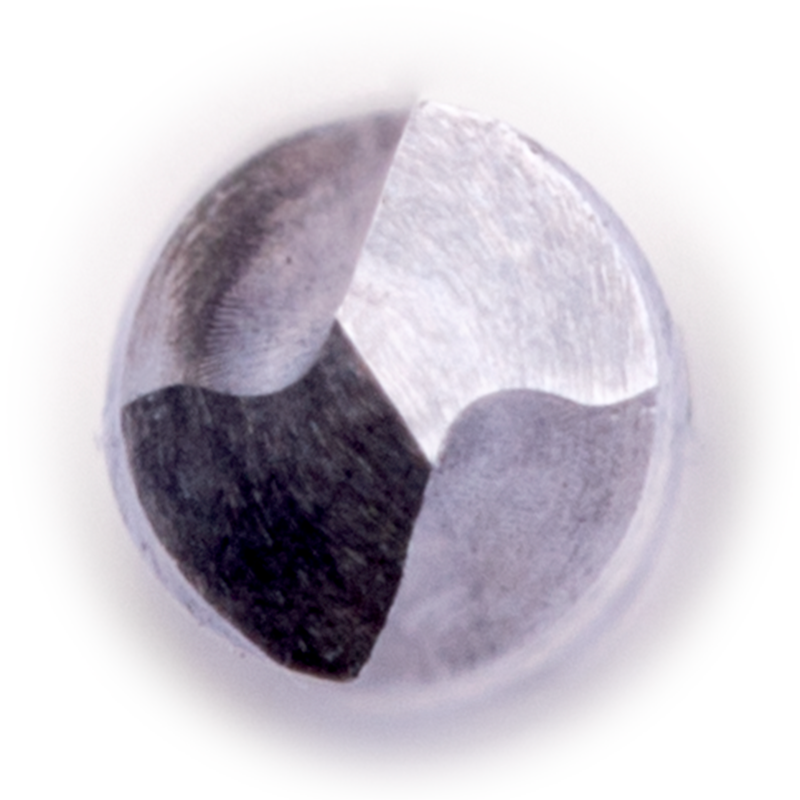

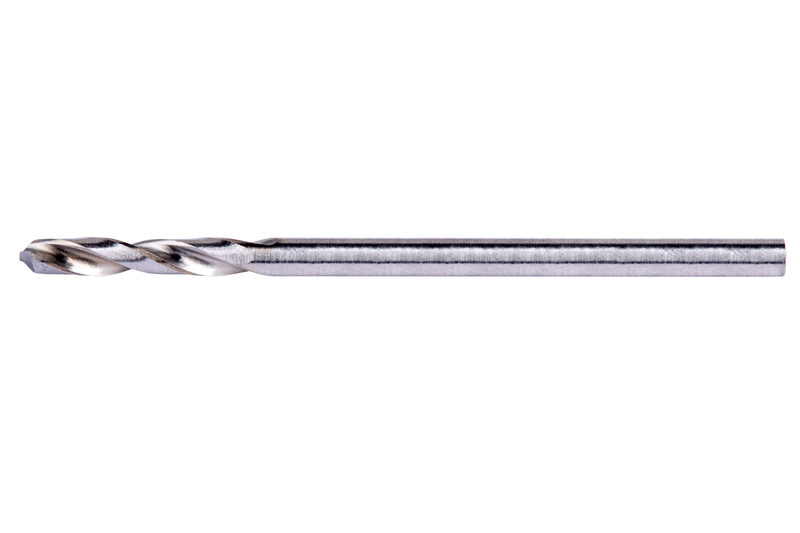

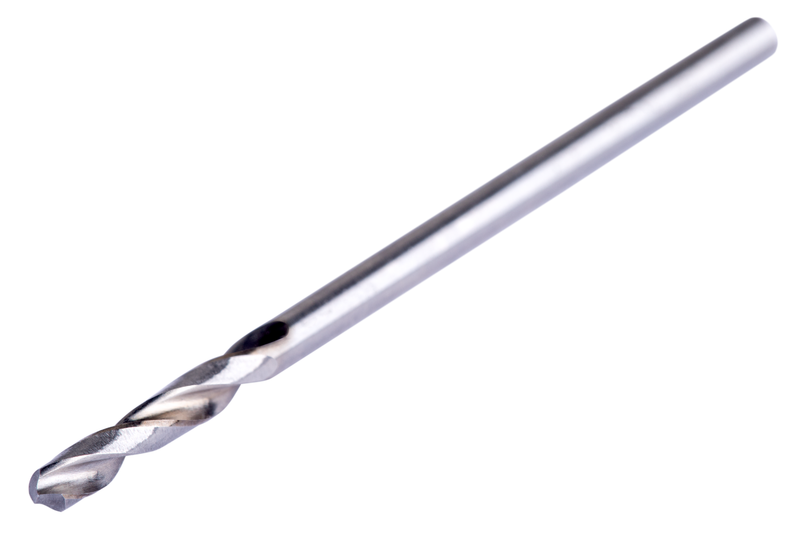

Foret court à queue cylindrique, diamètre 1,8 mm, longueur totale 36 mm et longueur de goujure 11 mm selon la norme DIN/ANSI avec pointe conique à 135°, en acier rapide (HSS) finition brillante pour le perçage de 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0221.8
GradeLumineux
Product Number5967166
Product FamilyA022
Dimensions
Cutting Diameter — in (DC)0.0709"
Cutting Diameter — mm (DC)1.8 mm
Overall Length — in (OAL)1.4173"
Overall Length — mm (OAL)36.0 mm
Flute Length — in (LCF)0.4331"
Flute Length — mm (LCF)11.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0709"
Connection Dia. — mm (DCON)1.8 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number600511
EAN7320760600511
File Type Download
A0221.8 — 3D Model STP Download
A0221.8 — Line Drawing PDF Download
