A0023/64
A0023/64
A0023/64
A0023/64

A0023/64

UGC DOR5967192
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.33 CAD - $3.33 CAD
$3.33 CAD
$3.33 CAD - $3.33 CAD
$3.33 CAD

Vendu en lots de : 10

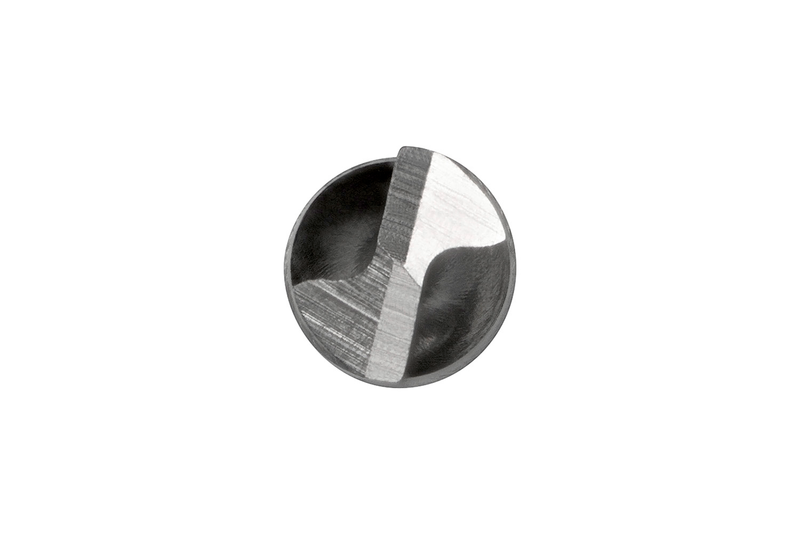

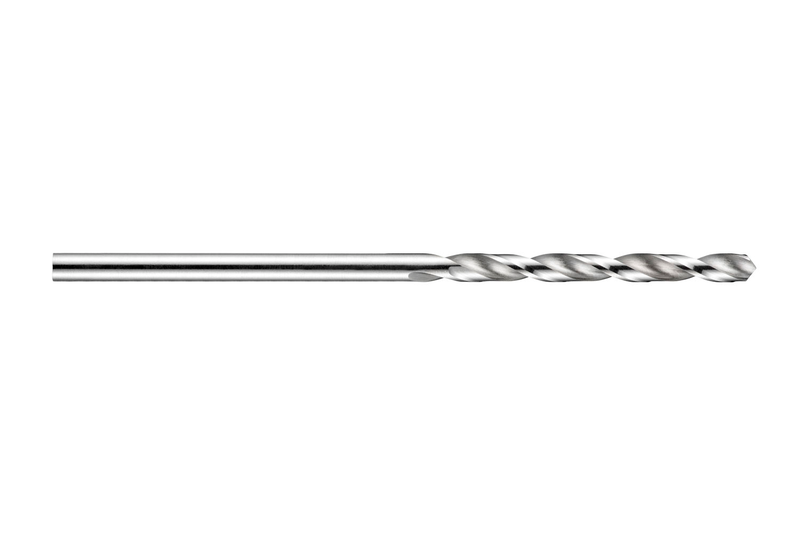

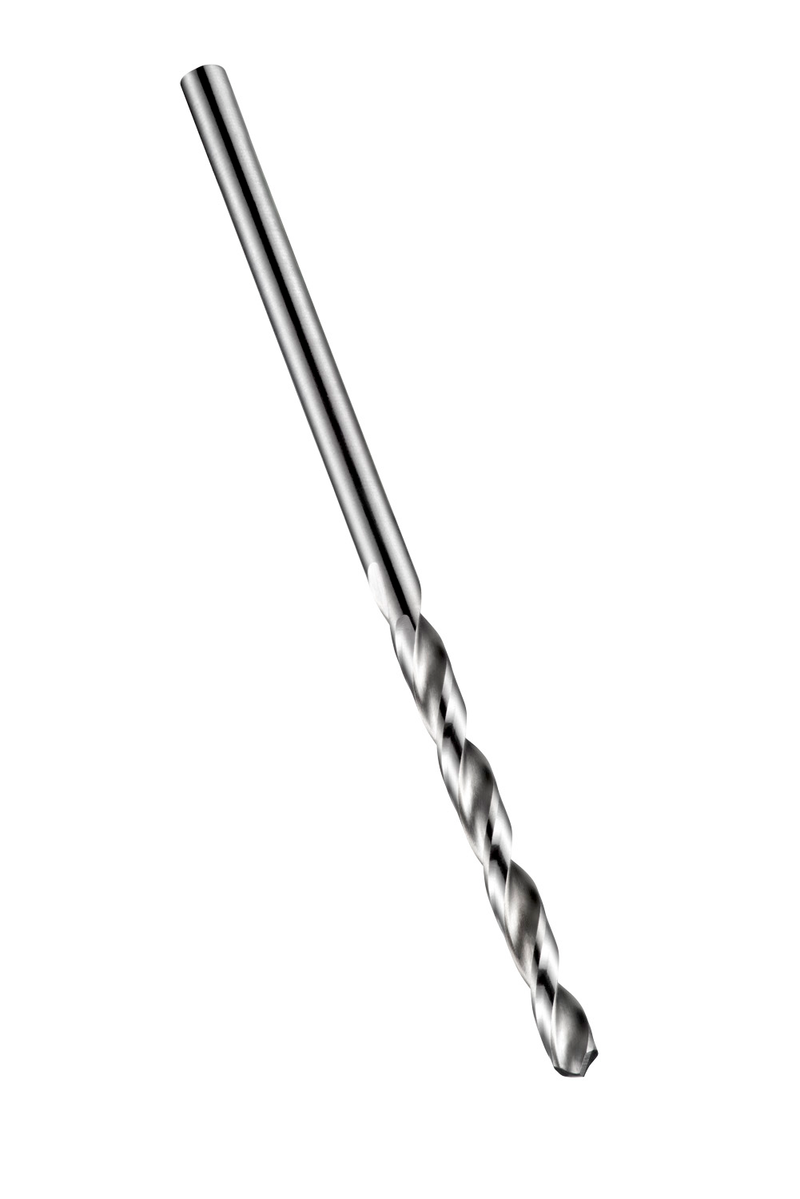

Foret court avec queue cylindrique, diamètre 0,0469" (3/64) d'une longueur totale de 38mm et d'une longueur de coupe de 16mm selon la norme DIN 338 avec une pointe conique de 118°, HSS avec finition brillante pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0023/64
GradeLumineux
Product Number5967192
Product FamilyA002
Dimensions
Cutting Diameter — in (DC)0.0469"
Cutting Diameter — mm (DC)1.19 mm
Cutting Diameter — Fractional3/64
Overall Length — in (OAL)1.4961"
Overall Length — mm (OAL)38.0 mm
Flute Length — in (LCF)0.6299"
Flute Length — mm (LCF)16.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0469"
Connection Dia. — mm (DCON)1.19 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number376928
EAN7320760376928
File Type Download
A0023/64 — 3D Model STP Download
A0023/64 — Line Drawing PDF Download
