UGC DOR5967253
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.56 CAD - $5.56 CAD
$5.56 CAD
$5.56 CAD - $5.56 CAD
$5.56 CAD

Vendu en lots de : 10

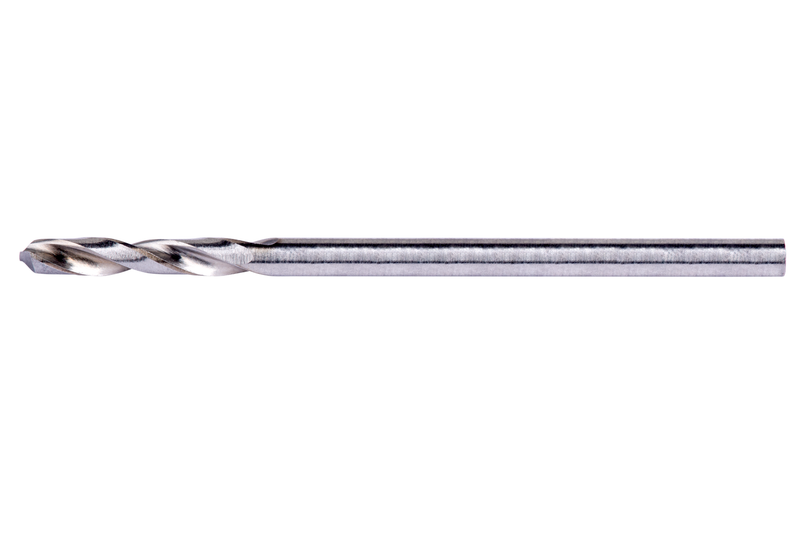

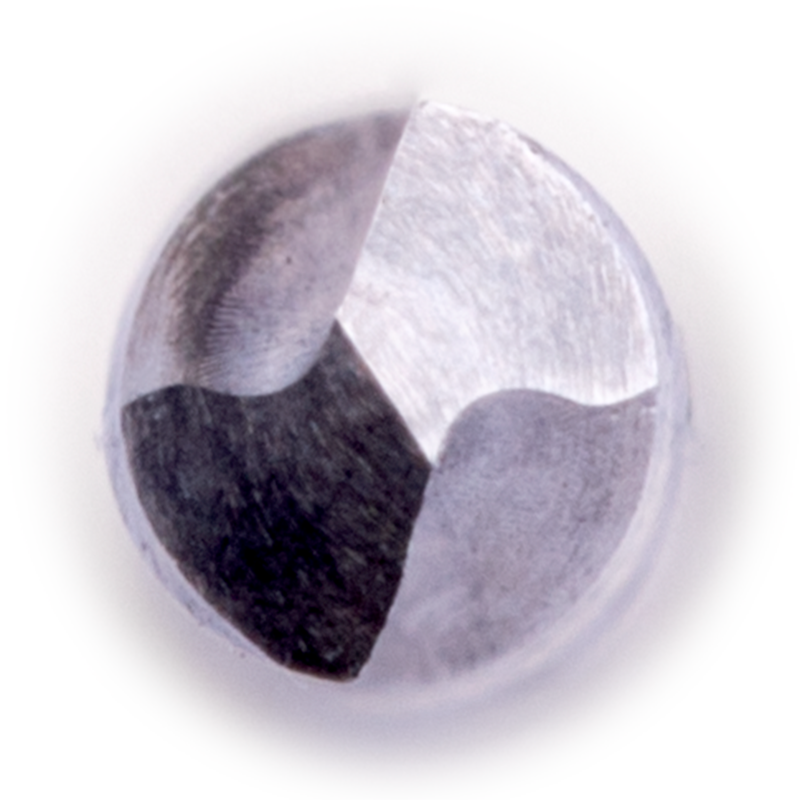

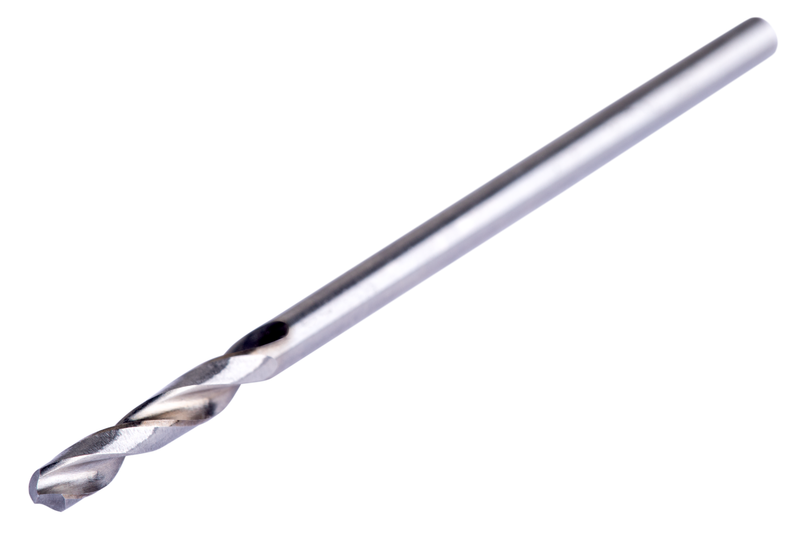

Foret court à queue cylindrique, diamètre 1,1 mm, longueur totale de 28 mm et longueur de goujure de 7 mm selon les normes DIN/ANSI avec pointe conique à 135°, en HSS finition brillante pour un perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0221.1
GradeLumineux
Product Number5967253
Product FamilyA022
Dimensions
Cutting Diameter — in (DC)0.0433"
Cutting Diameter — mm (DC)1.1 mm
Overall Length — in (OAL)1.1024"
Overall Length — mm (OAL)28.0 mm
Flute Length — in (LCF)0.2756"
Flute Length — mm (LCF)7.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0433"
Connection Dia. — mm (DCON)1.1 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number600443
EAN7320760600443
File Type Download
A0221.1 — 3D Model STP Download
A0221.1 — Line Drawing PDF Download
