A0221.3
A0221.3
A0221.3
A0221.3

A0221.3

UGC DOR5967324
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.94 CAD - $4.94 CAD
$4.94 CAD
$4.94 CAD - $4.94 CAD
$4.94 CAD

Vendu en lots de : 10

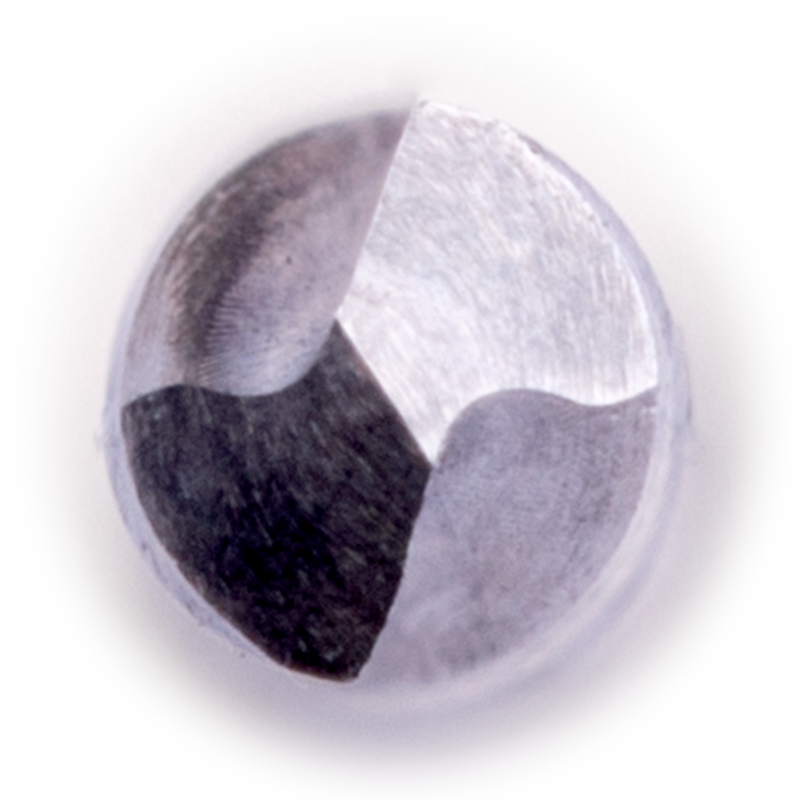

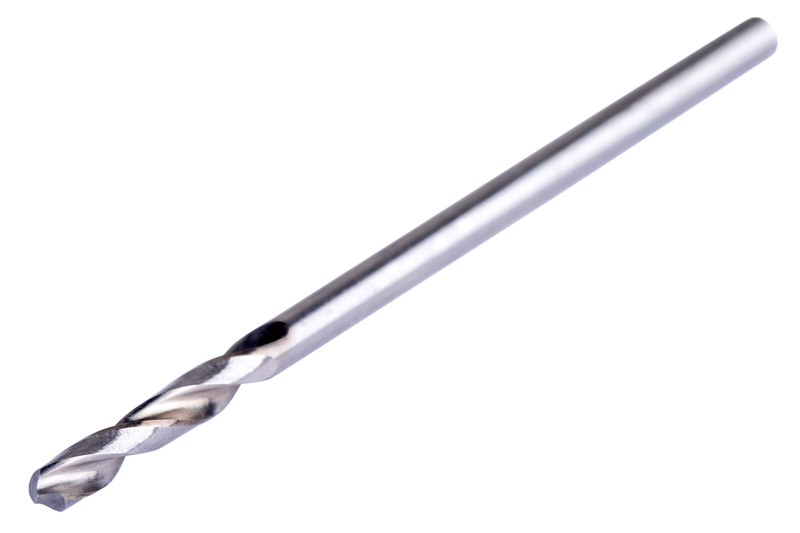

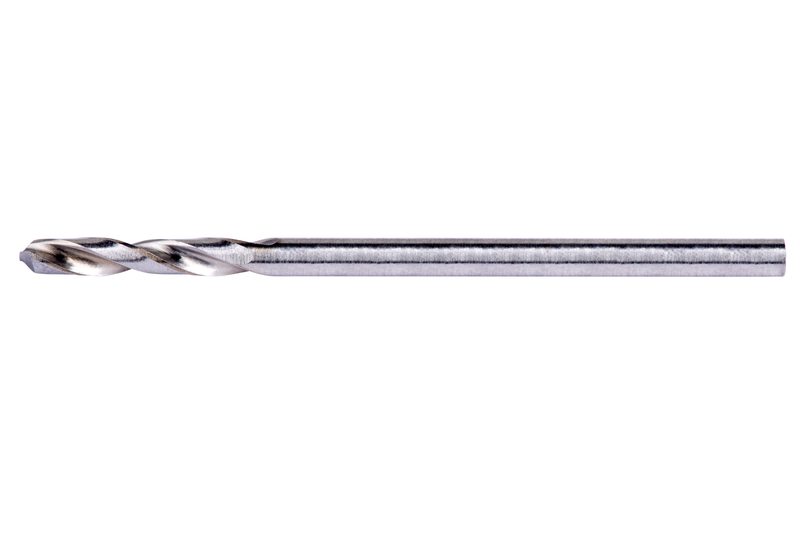

Foret court à queue cylindrique, diamètre 1,3 mm, longueur totale 30 mm et longueur de goujure 8 mm selon la norme DIN/ANSI avec pointe conique à 135°, en acier rapide avec finition brillante pour le perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0221.3
GradeLumineux
Product Number5967324
Product FamilyA022
Dimensions
Cutting Diameter — in (DC)0.0512"
Cutting Diameter — mm (DC)1.3 mm
Overall Length — in (OAL)1.1811"
Overall Length — mm (OAL)30.0 mm
Flute Length — in (LCF)0.315"
Flute Length — mm (LCF)8.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0512"
Connection Dia. — mm (DCON)1.3 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number600467
EAN7320760600467
File Type Download
A0221.3 — 3D Model STP Download
A0221.3 — Line Drawing PDF Download
