A0221.5
A0221.5
A0221.5
A0221.5

A0221.5

UGC DOR5967335
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.17 CAD - $3.17 CAD
$3.17 CAD
$3.17 CAD - $3.17 CAD
$3.17 CAD

Vendu en lots de : 10

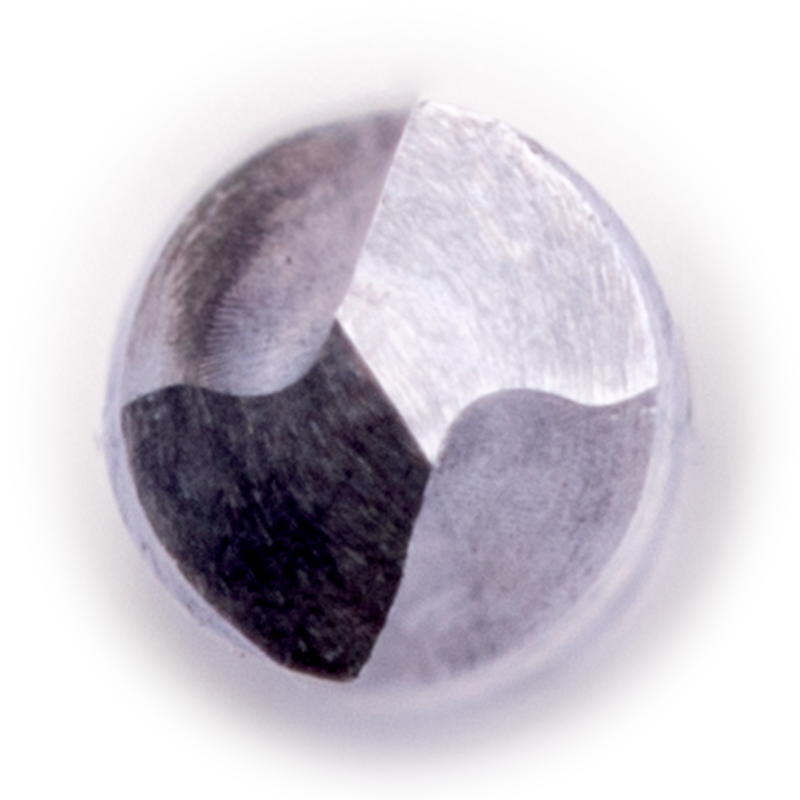

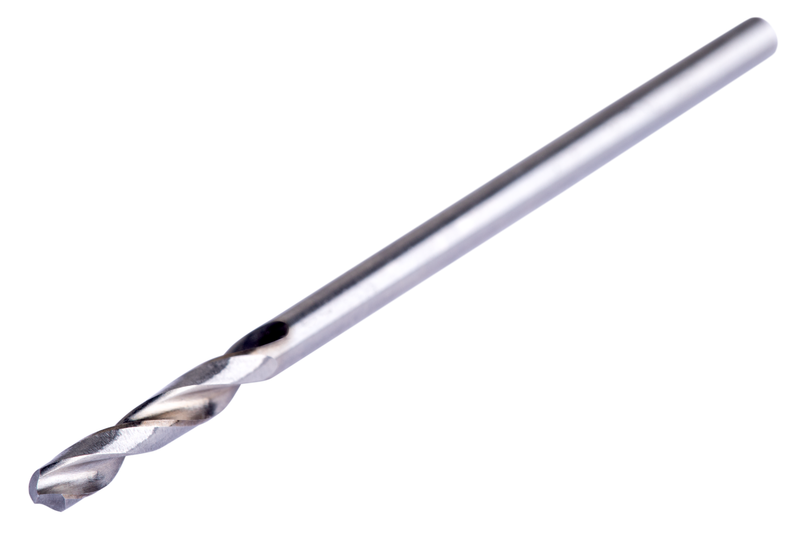

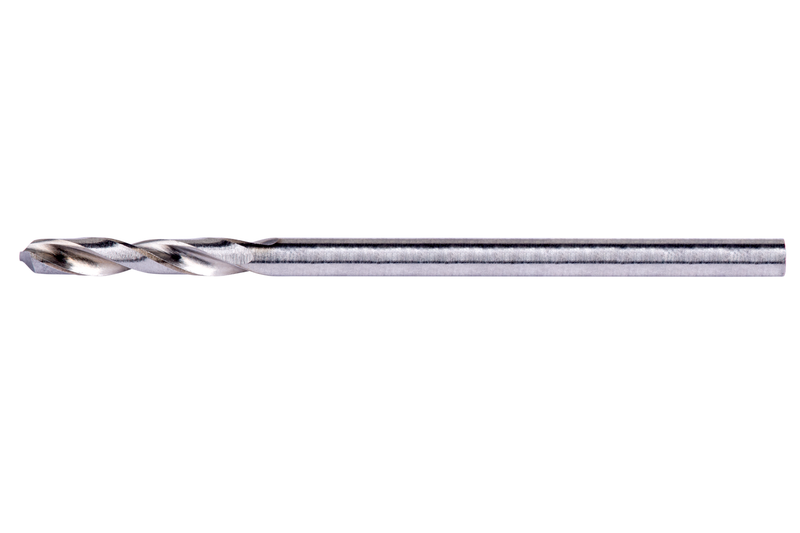

Foret court à queue cylindrique, diamètre 1,5 mm avec une longueur totale de 32 mm et une longueur de coupe de 9 mm selon la norme DIN/ANSI avec pointe conique à 135°, en acier rapide (HSS) avec finition brillante pour perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0221.5
GradeLumineux
Product Number5967335
Product FamilyA022
Dimensions
Cutting Diameter — in (DC)0.0591"
Cutting Diameter — mm (DC)1.5 mm
Overall Length — in (OAL)1.2598"
Overall Length — mm (OAL)32.0 mm
Flute Length — in (LCF)0.3543"
Flute Length — mm (LCF)9.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.0591"
Connection Dia. — mm (DCON)1.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number600481
EAN7320760600481
File Type Download
A0221.5 — 3D Model STP Download
A0221.5 — Line Drawing PDF Download
