UGC DOR5967339
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.47 CAD - $4.47 CAD
$4.47 CAD
$4.47 CAD - $4.47 CAD
$4.47 CAD

Vendu en lots de : 10

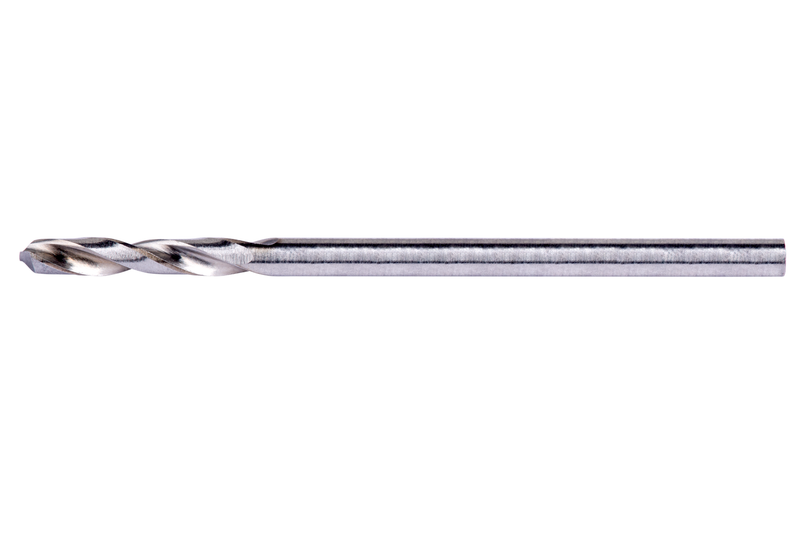

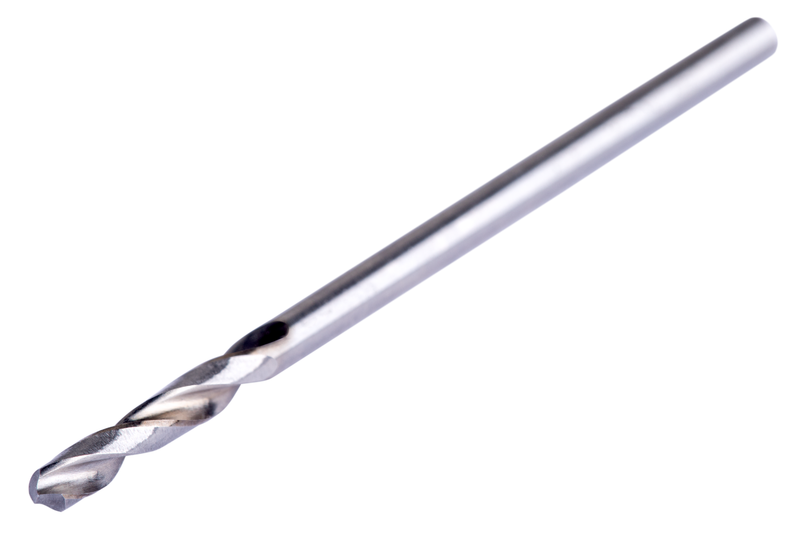

Foret court à queue cylindrique, diamètre 1,6 mm, longueur totale 34 mm et longueur de coupe 10 mm selon la norme DIN/ANSI, avec pointe conique à 135°, en acier rapide avec finition brillante pour le perçage jusqu'à 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A0221.6
GradeLumineux
Product Number5967339
Product FamilyA022
Dimensions
Cutting Diameter — in (DC)0.063"
Cutting Diameter — mm (DC)1.6 mm
Overall Length — in (OAL)1.3386"
Overall Length — mm (OAL)34.0 mm
Flute Length — in (LCF)0.3937"
Flute Length — mm (LCF)10.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.063"
Connection Dia. — mm (DCON)1.6 mm

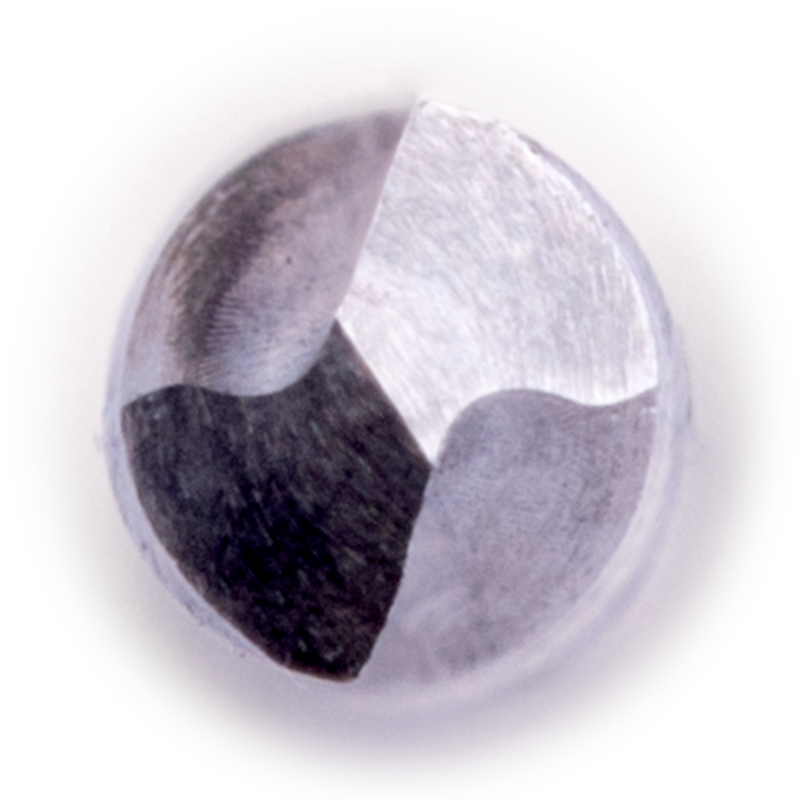

Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number600498
EAN7320760600498
File Type Download
A0221.6 — 3D Model STP Download
A0221.6 — Line Drawing PDF Download
