A10012.3
A10012.3
A10012.3
A10012.3

A10012.3

UGC DOR5967445
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.44 CAD - $33.44 CAD
$33.44 CAD
$33.44 CAD - $33.44 CAD
$33.44 CAD

Vendu en lots de : 5

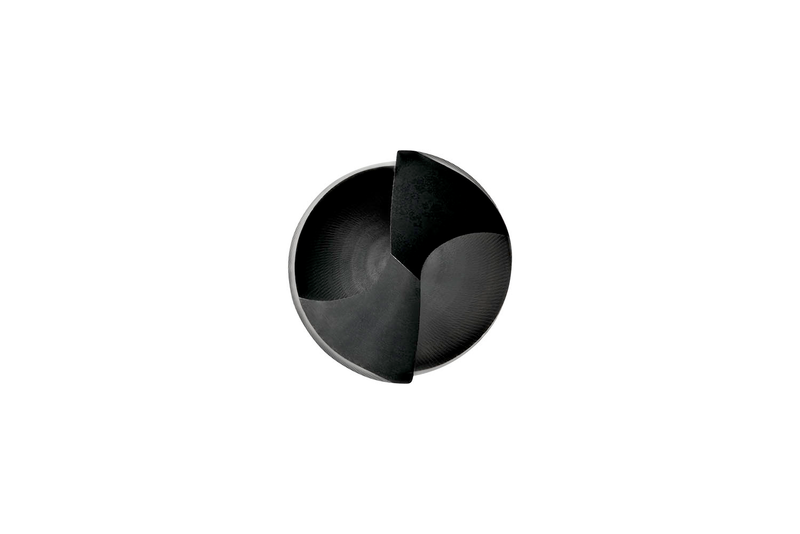

Foret hélicoïdal avec queue cylindrique, diamètre de 12,3 mm, longueur totale de 151 mm et longueur de coupe de 101 mm, selon la norme DIN 338, avec un angle de pointe de 118°, en HSS avec finition trempée vapeur pour le perçage de 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10012.3
GradeTrempé à la vapeur
Product Number5967445
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.4843"
Cutting Diameter — mm (DC)12.3 mm
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Flute Length — in (LCF)3.9764"
Flute Length — mm (LCF)101.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.4843"
Connection Dia. — mm (DCON)12.3 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number854
EAN7320760000854
File Type Download
A10012.3 — 3D Model STP Download
A10012.3 — Line Drawing PDF Download
