A100,25
A100,25
A100,25
A100,25

A100,25

UGC DOR5967601
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.11 CAD - $8.11 CAD
$8.11 CAD
$8.11 CAD - $8.11 CAD
$8.11 CAD

Vendu en lots de : 10

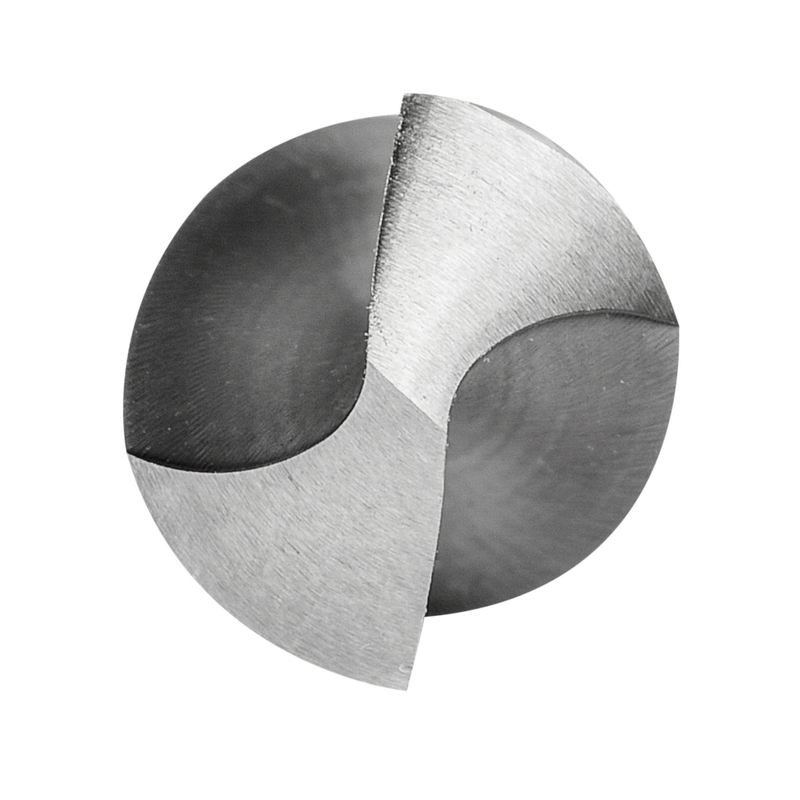

Foret court avec queue cylindrique, diamètre 0,25 mm avec une longueur totale de 19 mm et une longueur de coupe de 3 mm selon la norme DIN 338 avec un angle de pointe de 118°, en HSS avec finition brillante pour un perçage à 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100.25
GradeLumineux
Product Number5967601
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0098"
Cutting Diameter — mm (DC)0.25 mm
Overall Length — in (OAL)0.748"
Overall Length — mm (OAL)19.0 mm
Flute Length — in (LCF)0.1181"
Flute Length — mm (LCF)3.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0098"
Connection Dia. — mm (DCON)0.25 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number38
EAN7320760000038
File Type Download
A100,25 — 3D Model STP Download
A100,25 — Line Drawing PDF Download
