A100.32
A100.32
A100.32
A100.32

A100.32

UGC DOR5967605
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.89 CAD - $8.89 CAD
$8.89 CAD
$8.89 CAD - $8.89 CAD
$8.89 CAD

Vendu en lots de : 10

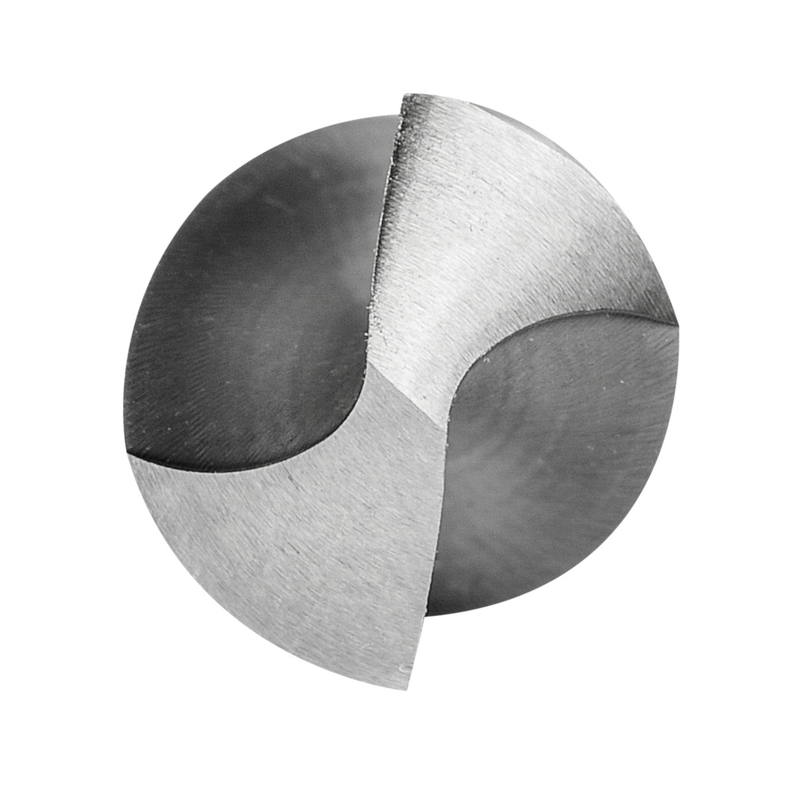

Foret court avec queue cylindrique, diamètre 0,32 mm, d'une longueur totale de 19 mm et d'une longueur de coupe de 4 mm selon la norme DIN 338, avec un angle de pointe de 118°, en HSS avec finition brillante pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100.32
GradeLumineux
Product Number5967605
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0126"
Cutting Diameter — mm (DC)0.32 mm
Overall Length — in (OAL)0.748"
Overall Length — mm (OAL)19.0 mm
Flute Length — in (LCF)0.1575"
Flute Length — mm (LCF)4.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0126"
Connection Dia. — mm (DCON)0.32 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number52
EAN7320760000052
File Type Download
A100.32 — 3D Model STP Download
A100.32 — Line Drawing PDF Download
