A100.42
A100.42
A100.42
A100.42

A100.42

UGC DOR5967614
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.66 CAD - $7.66 CAD
$7.66 CAD
$7.66 CAD - $7.66 CAD
$7.66 CAD

Vendu en lots de : 10

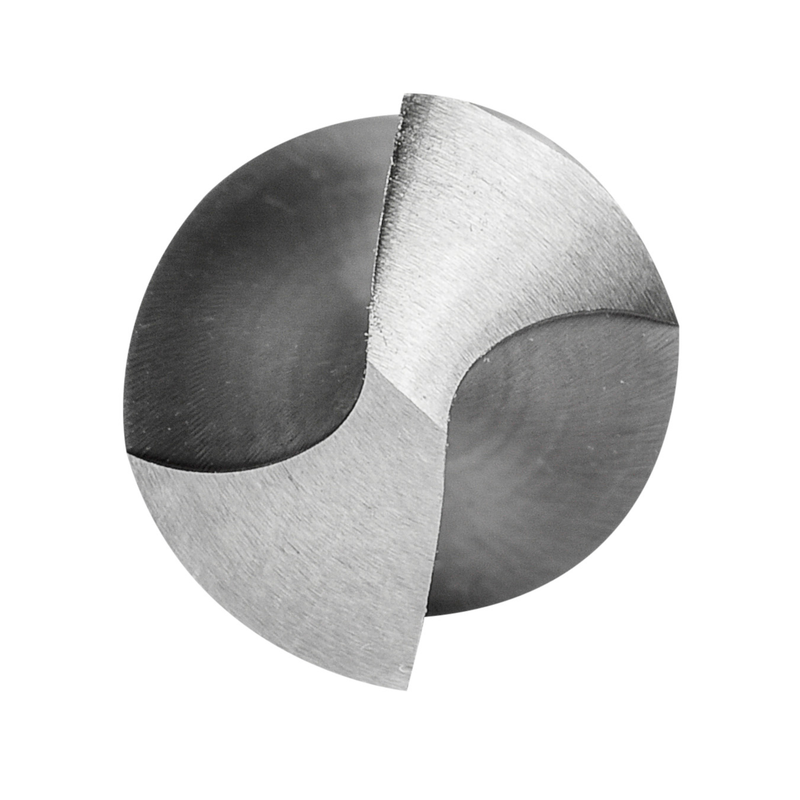

Foret hélicoïdal à queue cylindrique, diamètre 0,42 mm, longueur totale 20 mm et longueur utile 5 mm, conforme à la norme DIN 338, avec angle de pointe de 118°, en HSS avec finition brillante pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100.42
GradeLumineux
Product Number5967614
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0165"
Cutting Diameter — mm (DC)0.42 mm
Overall Length — in (OAL)0.7874"
Overall Length — mm (OAL)20.0 mm
Flute Length — in (LCF)0.1969"
Flute Length — mm (LCF)5.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0165"
Connection Dia. — mm (DCON)0.42 mm
Drill Point Angle (SIG)118°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number90
EAN7320760000090
File Type Download
A100.42 — 3D Model STP Download
A100.42 — Line Drawing PDF Download
