UGC DOR5967619
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.97 CAD - $3.97 CAD
$3.97 CAD
$3.97 CAD - $3.97 CAD
$3.97 CAD

Vendu en lots de : 10

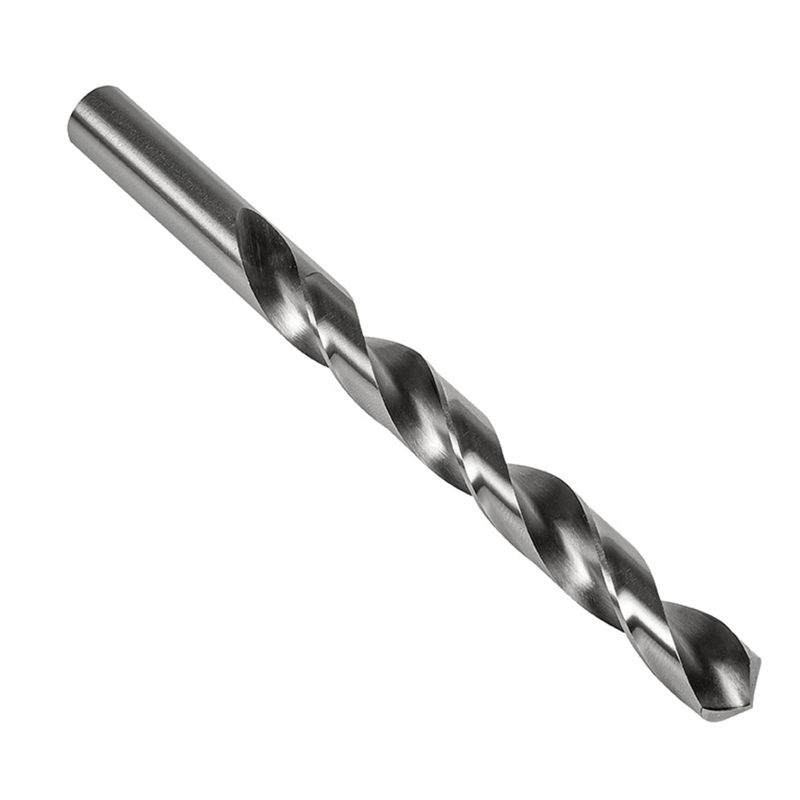

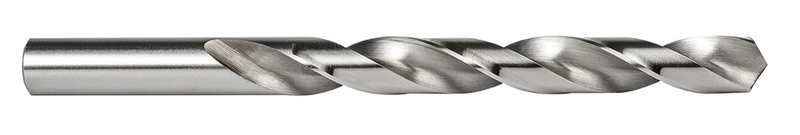

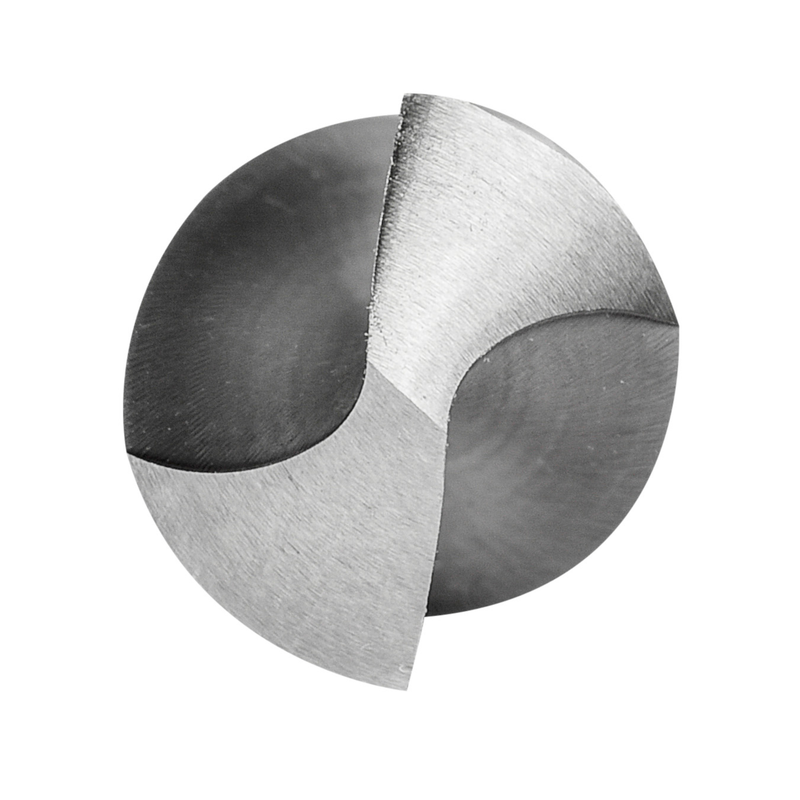

Foret court à queue cylindrique, diamètre 0,5 mm avec une longueur totale de 22 mm et une longueur de coupe de 6 mm selon la norme DIN 338, angle de pointe de 118°, en HSS avec finition brillante pour le perçage de 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100.5
GradeLumineux
Product Number5967619
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0197"
Cutting Diameter — mm (DC)0.5 mm
Overall Length — in (OAL)0.8661"
Overall Length — mm (OAL)22.0 mm
Flute Length — in (LCF)0.2362"
Flute Length — mm (LCF)6.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0197"
Connection Dia. — mm (DCON)0.5 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number120
EAN7320760000120
File Type Download
A100.5 — 3D Model STP Download
A100.5 — Line Drawing PDF Download
