UGC DOR5967621
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.04 CAD - $7.04 CAD
$7.04 CAD
$7.04 CAD - $7.04 CAD
$7.04 CAD

Vendu en lots de : 10

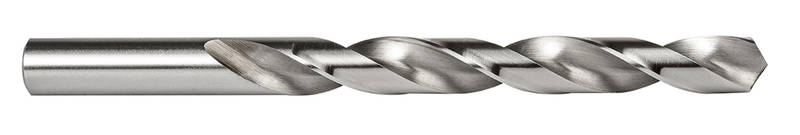

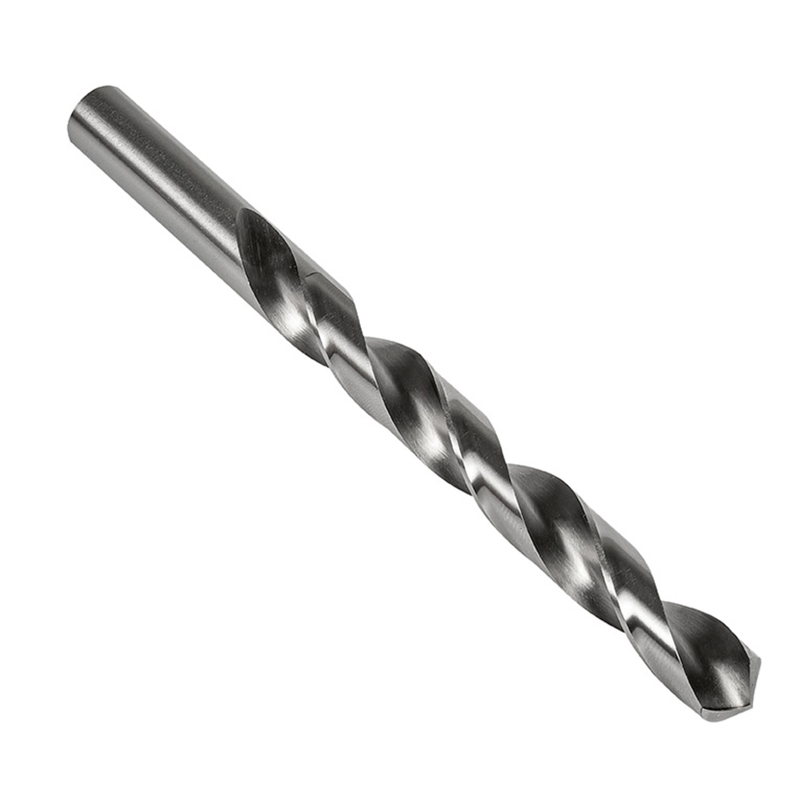

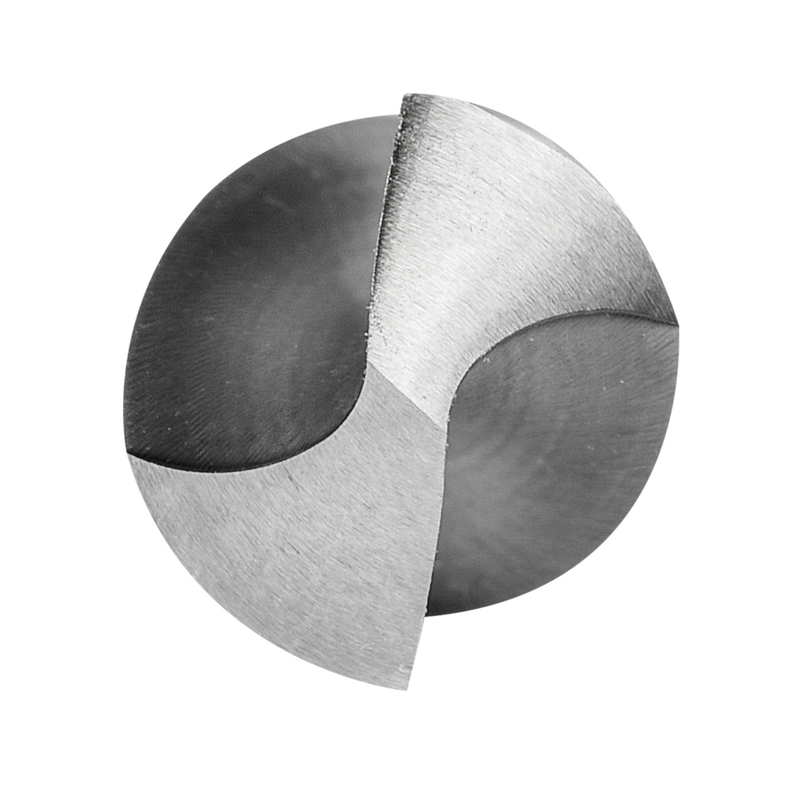

Foret court avec queue cylindrique, diamètre 0,52 mm, longueur totale 22 mm et longueur de goujure 6 mm selon la norme DIN 338 avec un angle de pointe de 118°, en HSS avec finition brillante pour le perçage à 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A100.52
GradeLumineux
Product Number5967621
Product FamilyA100
Dimensions
Cutting Diameter — in (DC)0.0205"
Cutting Diameter — mm (DC)0.52 mm
Overall Length — in (OAL)0.8661"
Overall Length — mm (OAL)22.0 mm
Flute Length — in (LCF)0.2362"
Flute Length — mm (LCF)6.0 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.0205"
Connection Dia. — mm (DCON)0.52 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number137
EAN7320760000137
File Type Download
A100.52 — 3D Model STP Download
A100.52 — Line Drawing PDF Download
